6. Layout and operating in-
structions
After switching on the start screen opens with the fol-
lowing display:

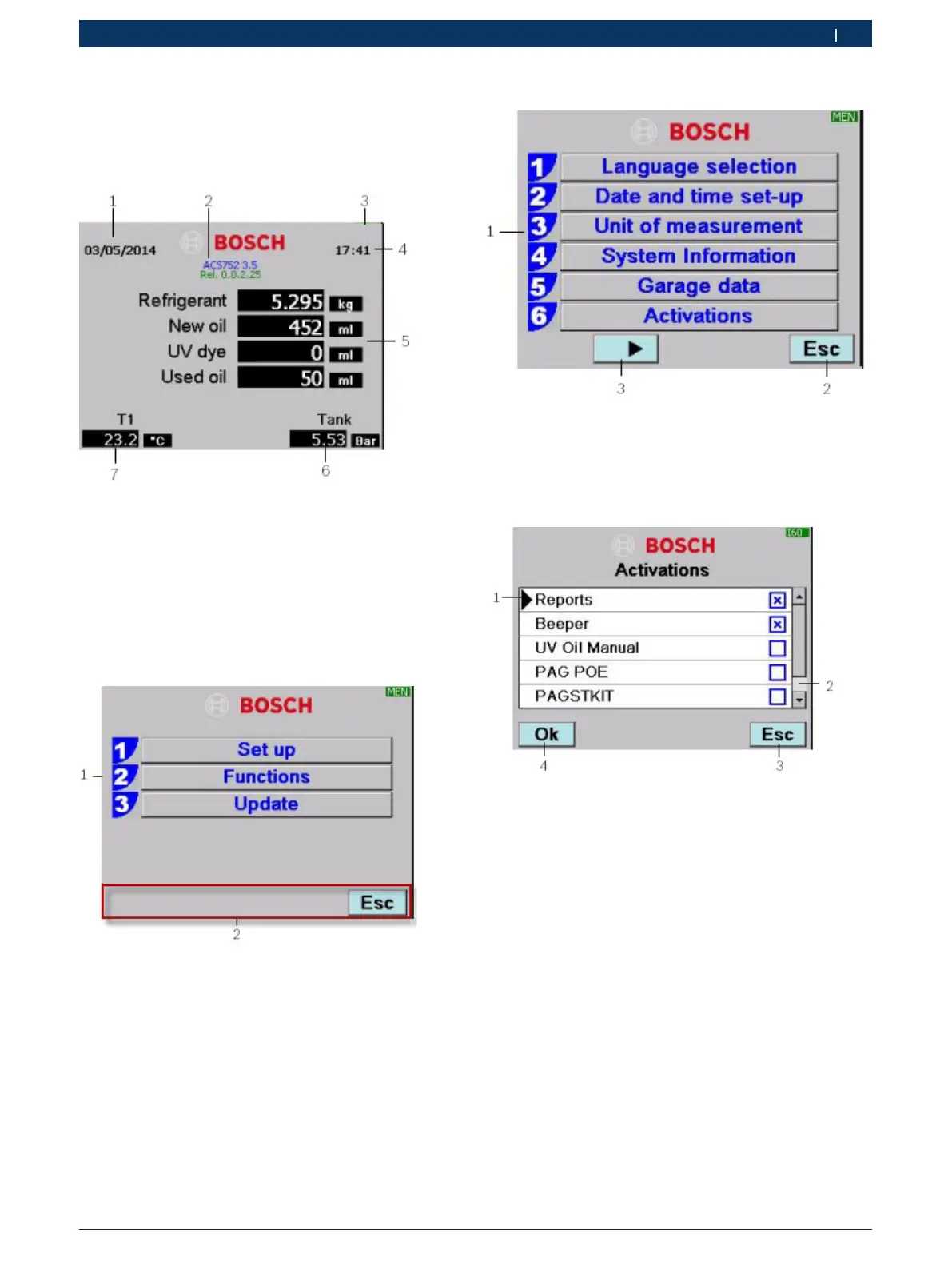

Fig. 6: Start screen
1 Current date
2 Software version
3 Name of the current menu
4 Current time
5 Information on available quantities
6 Internal pressure of the internal refrigerant cylinder
7 Temperature value of the connected temperature sensor
Press <Menu> to open the main menu:
Fig. 7: Main menu
1 Functions and number to start this function
2 Possible actions
Press <1> to open the menu "Set up"
Fig. 8: Menu "Set up"
1 Possible functions
2 Back to main menu
3 Go to other functions in this menu
Press <6> to open menu "Activations"
Fig. 9: Menu "Activations"
1 Display of the current settings, "x" = activated
2 Press u to display additional settings
3 Press <ESC> to return to menu "Set up"
4 Press <OK> to enable or disable the selected function
