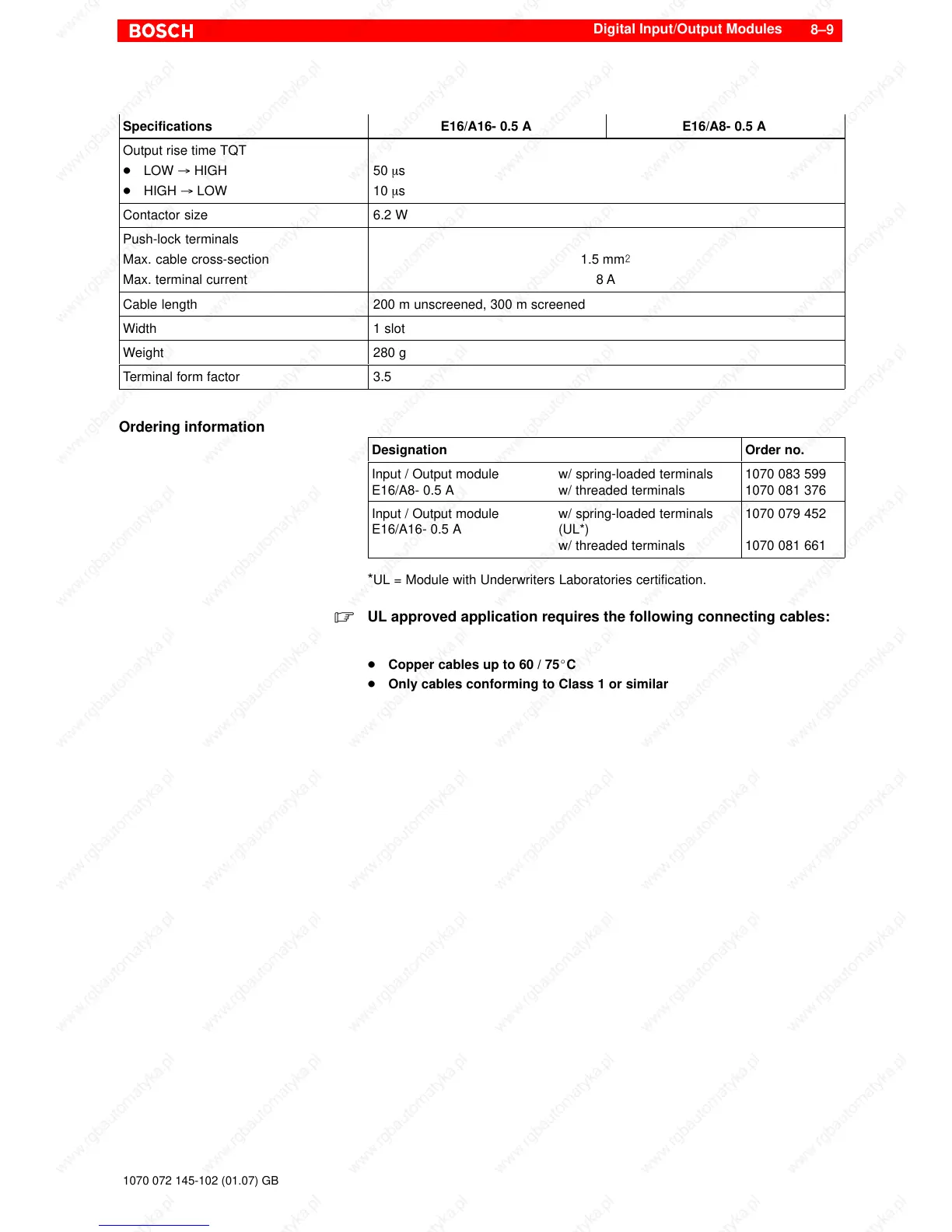

Digital Input/Output Modules
8–9
1070 072 145-102 (01.07) GB
Specifications E16/A8- 0.5 AE16/A16- 0.5 A
Output rise time TQT
D LOW ³ HIGH
D HIGH ³ LOW
50 ms
10 ms
Contactor size 6.2 W
Push-lock terminals
Max. cable cross-section
Max. terminal current
1.5 mm@
8 A
Cable length 200 m unscreened, 300 m screened
Width 1 slot
Weight 280 g
Terminal form factor 3.5
Ordering information
Designation Order no.
Input / Output module
E16/A8- 0.5 A
w/ spring-loaded terminals
w/ threaded terminals
1070 083 599
1070 081 376
Input / Output module
E16/A16- 0.5 A
w/ spring-loaded terminals
(UL*)
w/ threaded terminals
1070 079 452
1070 081 661
*UL = Module with Underwriters Laboratories certification.
. UL approved application requires the following connecting cables:
D Copper cables up to 60 / 75_C
D Only cables conforming to Class 1 or similar
