Bosch CL200 - Analog Output Module Specifications

Analog Output Modules
13–3
1070 072 145-102 (01.07) GB
Actuators are connected via push-lock terminals.
The output module requires an external 24 V power supply.

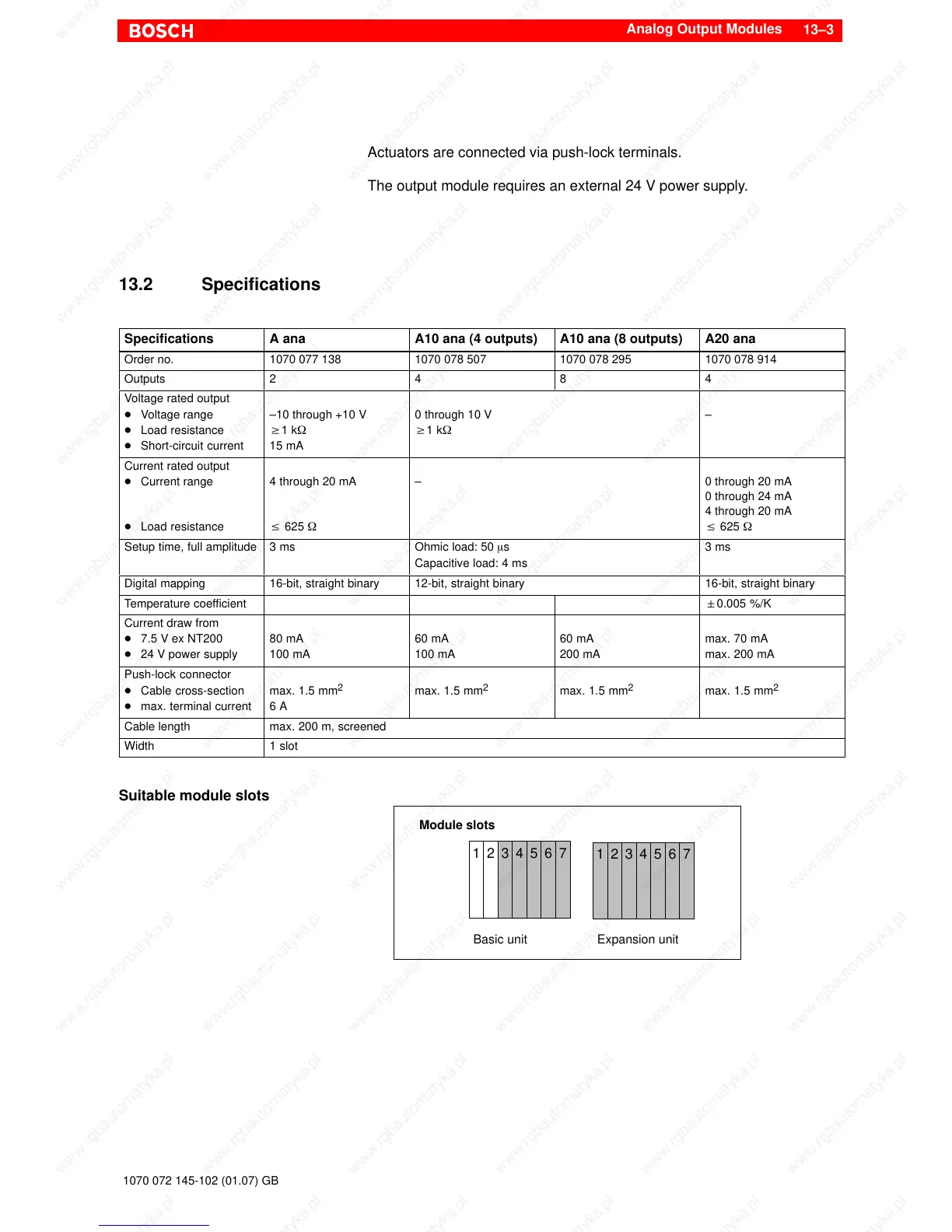

13.2 Specifications
Specifications A ana A10 ana (4 outputs) A10 ana (8 outputs) A20 ana
Order no. 1070 077 138 1070 078 507 1070 078 295 1070 078 914
Outputs 2 4 8 4
Voltage rated output
D Voltage range
D Load resistance
D Short-circuit current
–10 through +10 V
w1 kW
15 mA
0 through 10 V
w1 kW
–
Current rated output
D Current range
D Load resistance
4 through 20 mA
v 625 W
– 0 through 20 mA
0 through 24 mA
4 through 20 mA
v 625 W
Setup time, full amplitude 3 ms Ohmic load: 50 ms
Capacitive load: 4 ms
3 ms
Digital mapping 16-bit, straight binary 12-bit, straight binary 16-bit, straight binary
Temperature coefficient "0.005 %/K
Current draw from
D 7.5 V ex NT200
D 24 V power supply
80 mA
100 mA
60 mA
100 mA
60 mA
200 mA
max. 70 mA
max. 200 mA
Push-lock connector
D Cable cross-section
D max. terminal current
max. 1.5 mm
2
6 A
max. 1.5 mm
2
max. 1.5 mm
2
max. 1.5 mm
2
Cable length max. 200 m, screened
Width 1 slot
Suitable module slots
1234567
Basic unit
Module slots
1234567
Expansion unit
