Bosch CL200 - DP-EA4 Module Specifications

DP-EA4 Peripheral Bus Station Module
9–5
1070 072 145-102 (01.07) GB

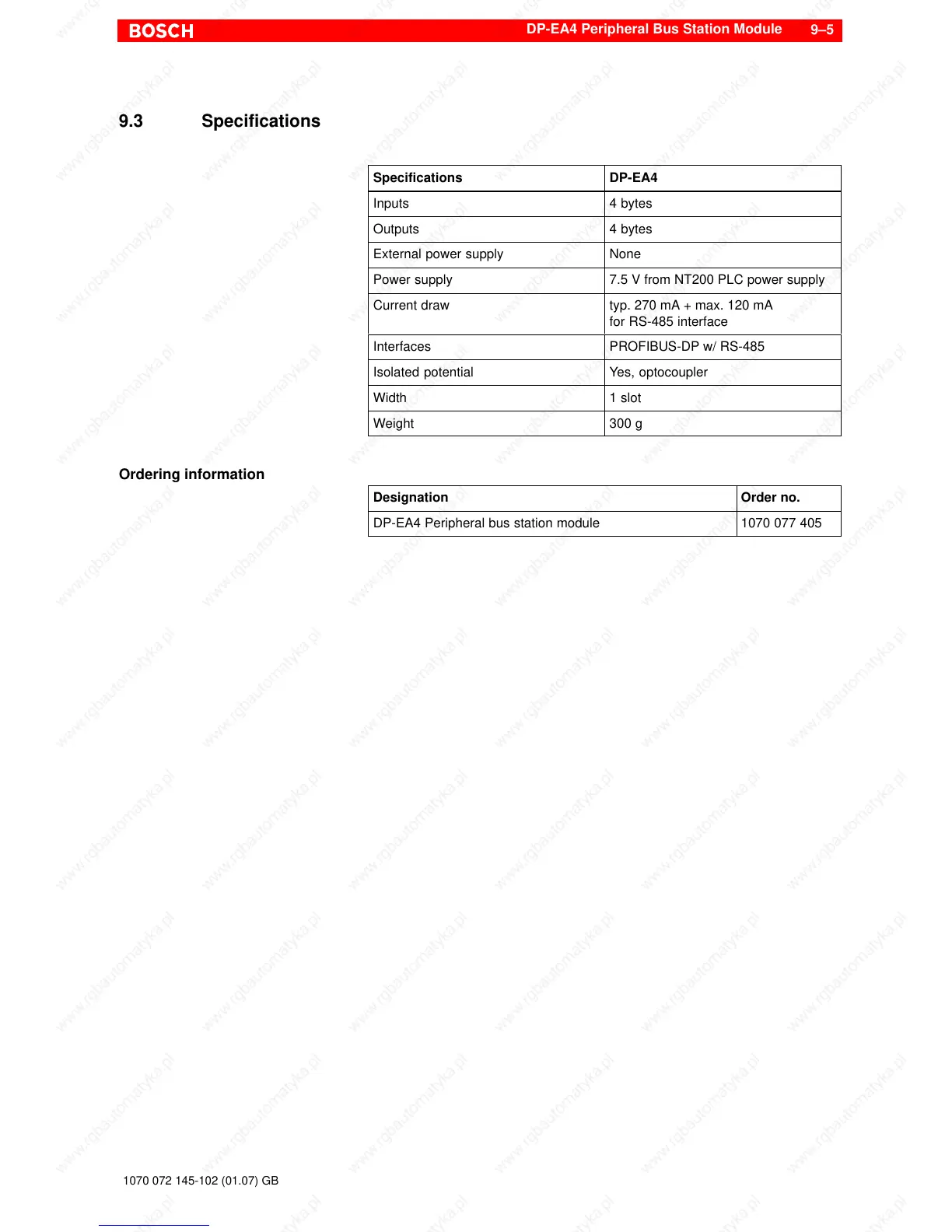

9.3 Specifications
Specifications DP-EA4
Inputs 4 bytes
Outputs 4 bytes
External power supply None
Power supply 7.5 V from NT200 PLC power supply
Current draw typ. 270 mA + max. 120 mA
for RS-485 interface
Interfaces PROFIBUS-DP w/ RS-485
Isolated potential Yes, optocoupler
Width 1 slot
Weight 300 g
Ordering information
Designation Order no.
DP-EA4 Peripheral bus station module 1070 077 405
