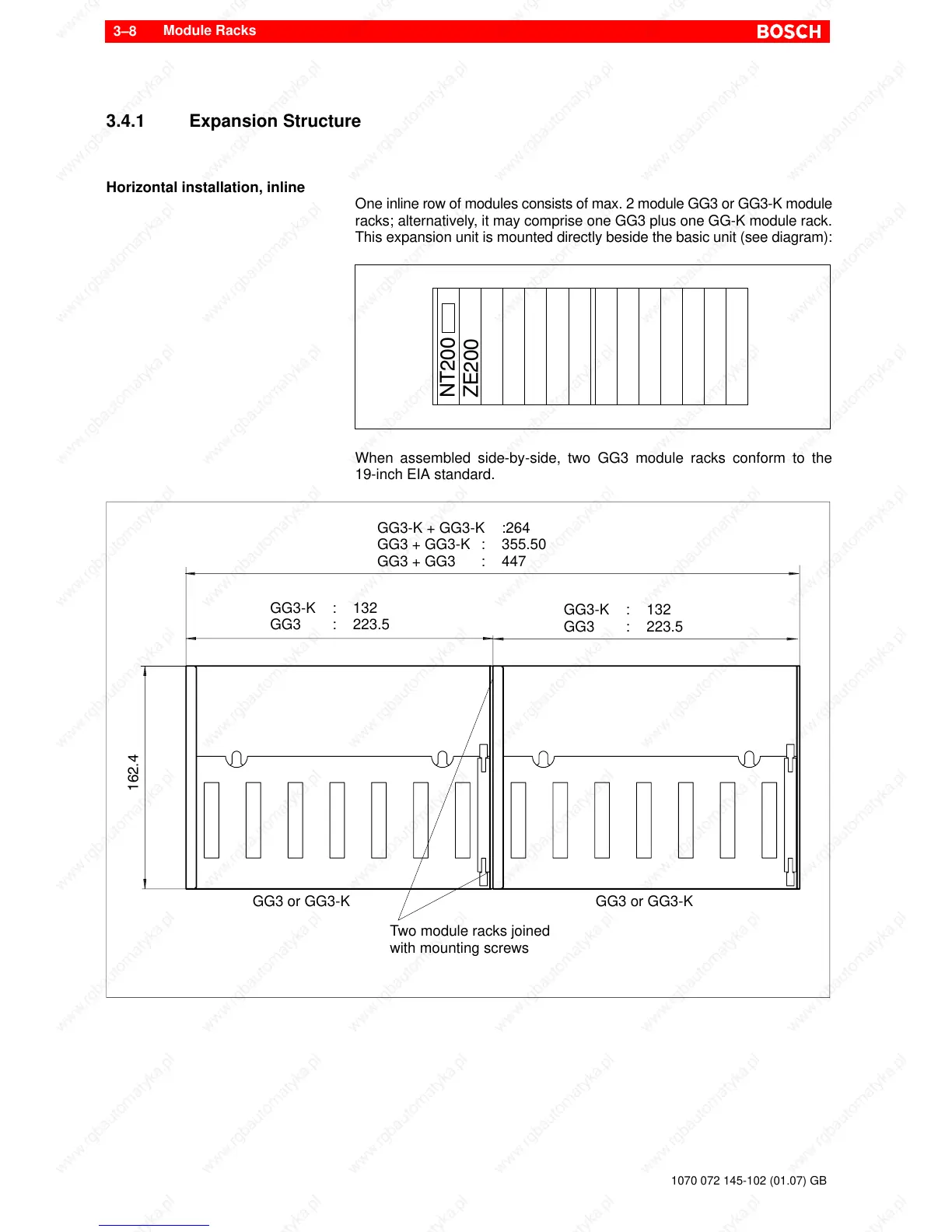

3.4.1 Expansion Structure
Horizontal installation, inline
One inline row of modules consists of max. 2 module GG3 or GG3-K module
racks; alternatively, it may comprise one GG3 plus one GG-K module rack.
This expansion unit is mounted directly beside the basic unit (see diagram):
NT200 ZE200
When assembled side-by-side, two GG3 module racks conform to the
19-inch EIA standard.
GG3-K + GG3-K :264
GG3 + GG3-K : 355.50
GG3 + GG3 : 447
GG3-K : 132
GG3 : 223.5
GG3 or GG3-K
Two module racks joined
with mounting screws
162.4
GG3 or GG3-K
GG3-K : 132
GG3 : 223.5
