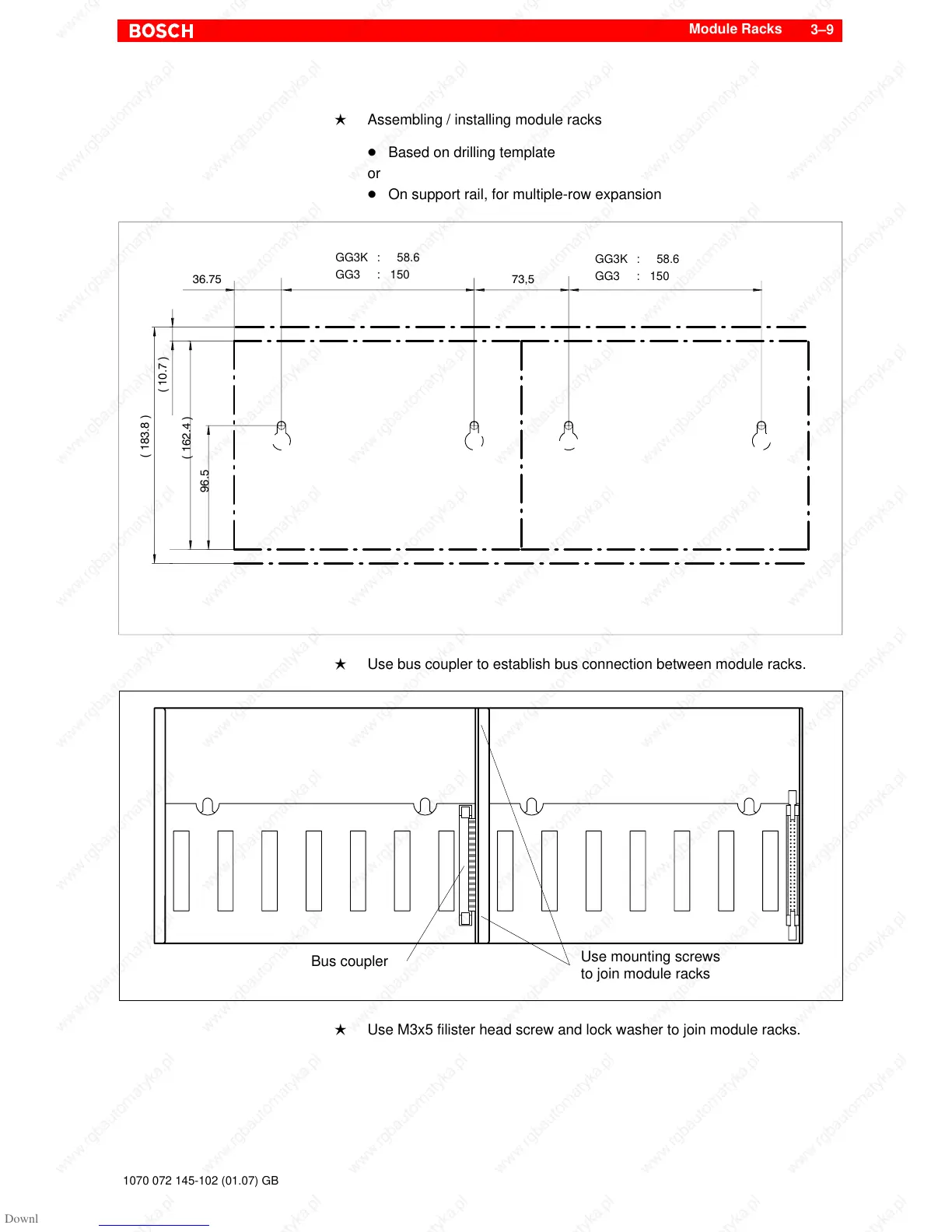

L Assembling / installing module racks
D Based on drilling template
or
D On support rail, for multiple-row expansion
GG3K : 58.6
GG3 : 150
36.75 73,5
( 183.8 )
( 10.7 )
( 162.4 )
96.5
GG3K : 58.6
GG3 : 150
L Use bus coupler to establish bus connection between module racks.
Ï
Ï
Ï
Ï
Ï
Bus coupler
Use mounting screws
to join module racks
L Use M3x5 filister head screw and lock washer to join module racks.
