Bosch CL200 - Digital Output Module Specifications

Digital Output Modules
7–10
1070 072 145-102 (01.07) GB

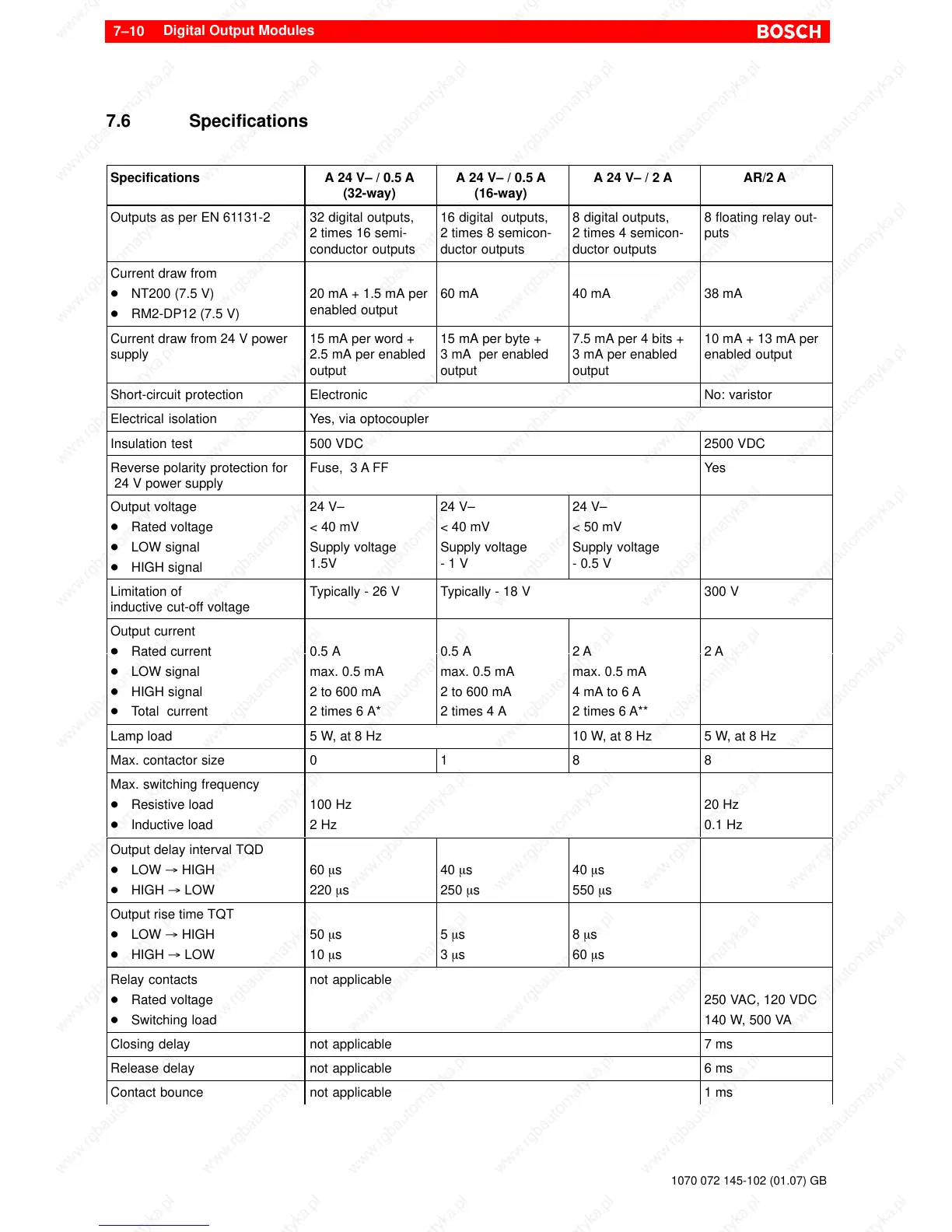

7.6 Specifications
Specifications A 24 V– / 0.5 A
(32-way)
A 24 V– / 0.5 A
(16-way)
A 24 V– / 2 A AR/2 A
Outputs as per EN 61131-2 32 digital outputs,
2 times 16 semi-
conductor outputs
16 digital outputs,
2 times 8 semicon-
ductor outputs
8 digital outputs,
2 times 4 semicon-
ductor outputs
8 floating relay out-
puts
Current draw from
D NT200 (7.5 V)
D RM2-DP12 (7.5 V)
20 mA + 1.5 mA per
enabled output
60 mA 40 mA 38 mA
Current draw from 24 V power
supply
15 mA per word +
2.5 mA per enabled
output
15 mA per byte +
3 mA per enabled
output
7.5 mA per 4 bits +
3 mA per enabled
output
10 mA + 13 mA per
enabled output
Short-circuit protection Electronic No: varistor
Electrical isolation Yes, via optocoupler
Insulation test 500 VDC 2500 VDC
Reverse polarity protection for
24 V power supply
Fuse, 3 A FF Yes
Output voltage
D Rated voltage
24 V–
< 40 mV
24 V–
< 40 mV
24 V–
< 50 mV
D LOW signal
D HIGH signal
Supply voltage
1.5V
Supply voltage
- 1 V
Supply voltage
- 0.5 V
Limitation of
inductive cut-off voltage
Typically - 26 V Typically - 18 V 300 V
Output current
D
D
Rated current
D LOW signal
D
0.5 A
max. 0.5 mA
0.5 A
max. 0.5 mA
2 A
max. 0.5 mA
2 A
D HIGH signal
D Total current
2 to 600 mA
2 times 6 A*
2 to 600 mA
2 times 4 A
4 mA to 6 A
2 times 6 A**
Lamp load 5 W, at 8 Hz 10 W, at 8 Hz 5 W, at 8 Hz
Max. contactor size 0 1 8 8
Max. switching frequency
D Resistive load
D Inductive load
100 Hz
2 Hz
20 Hz
0.1 Hz
Output delay interval TQD
D LOW ³ HIGH
D HIGH ³ LOW
60 ms
220 ms
40 ms
250 ms
40 ms
550 ms
Output rise time TQT
D LOW ³ HIGH
D HIGH ³ LOW
50 ms
10 ms
5 ms
3 ms
8 ms
60 ms
Relay contacts
D Rated voltage
D Switching load
not applicable
250 VAC, 120 VDC
140 W, 500 VA
Closing delay not applicable 7 ms
Release delay not applicable 6 ms
Contact bounce not applicable 1 ms
