AG/S Expansion Module
10–1
1070 072 145-102 (01.07) GB
10 AG/S Expansion Module
10.1 Features and Functions

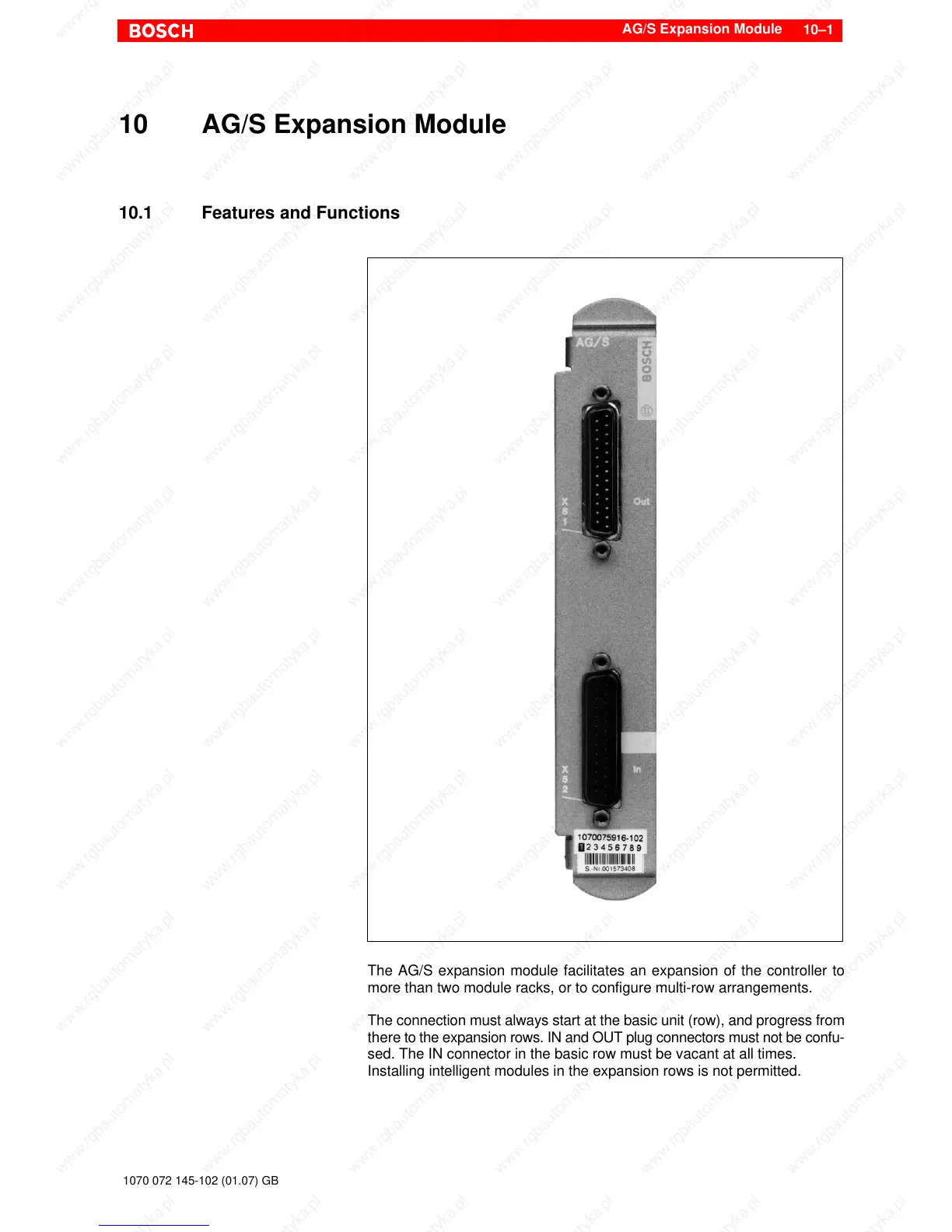

The AG/S expansion module facilitates an expansion of the controller to
more than two module racks, or to configure multi-row arrangements.
The connection must always start at the basic unit (row), and progress from
there to the expansion rows. IN and OUT plug connectors must not be confu-
sed. The IN connector in the basic row must be vacant at all times.
Installing intelligent modules in the expansion rows is not permitted.
