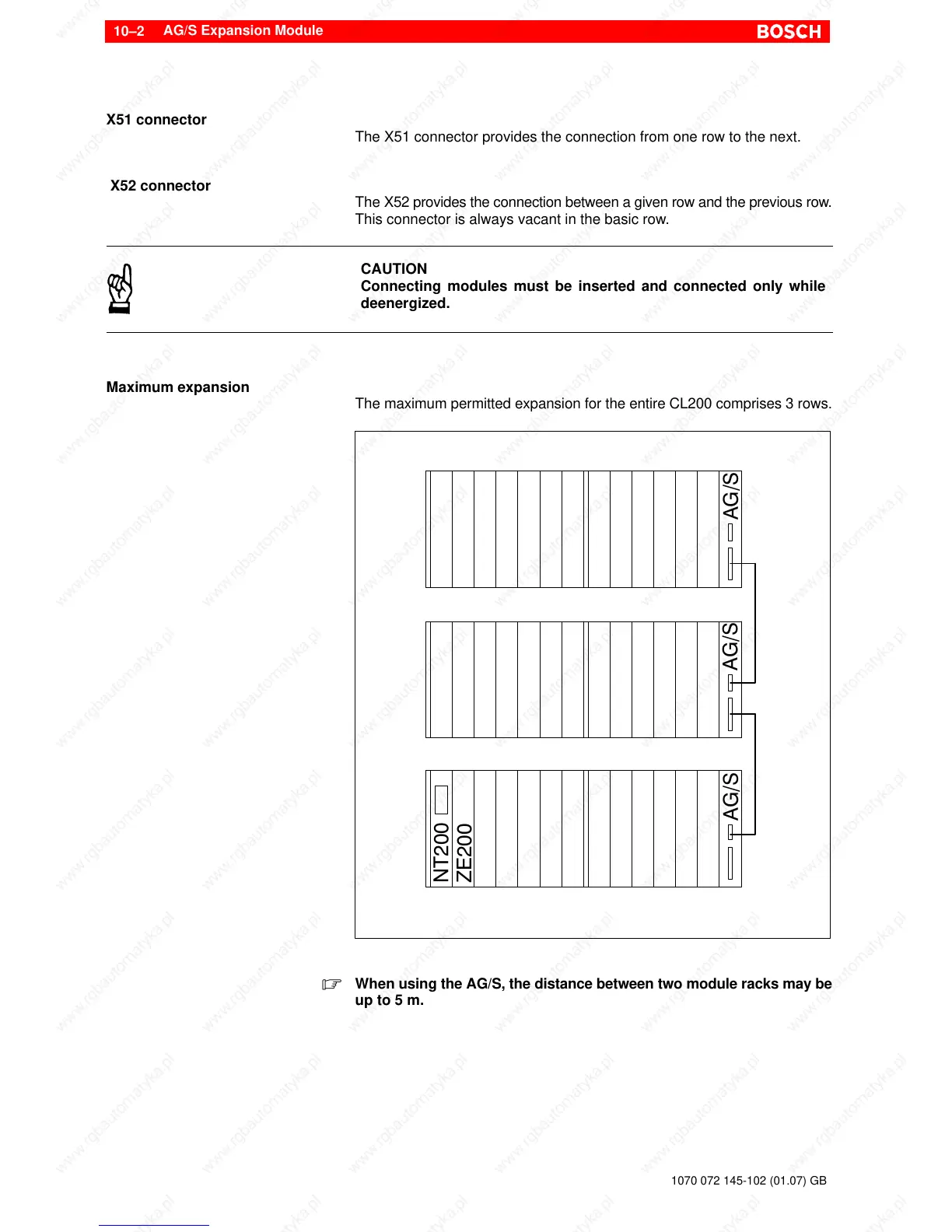

AG/S Expansion Module
10–2
1070 072 145-102 (01.07) GB
X51 connector
The X51 connector provides the connection from one row to the next.
X52 connector
The X52 provides the connection between a given row and the previous row.
This connector is always vacant in the basic row.
CAUTION
Connecting modules must be inserted and connected only while
deenergized.
Maximum expansion
The maximum permitted expansion for the entire CL200 comprises 3 rows.
NT200
ZE200
AG/S
AG/S
AG/S
. When using the AG/S, the distance between two module racks may be
up to 5 m.
