Bosch CL200 - Analog Output Modules

Analog Output Modules
13–1
1070 072 145-102 (01.07) GB

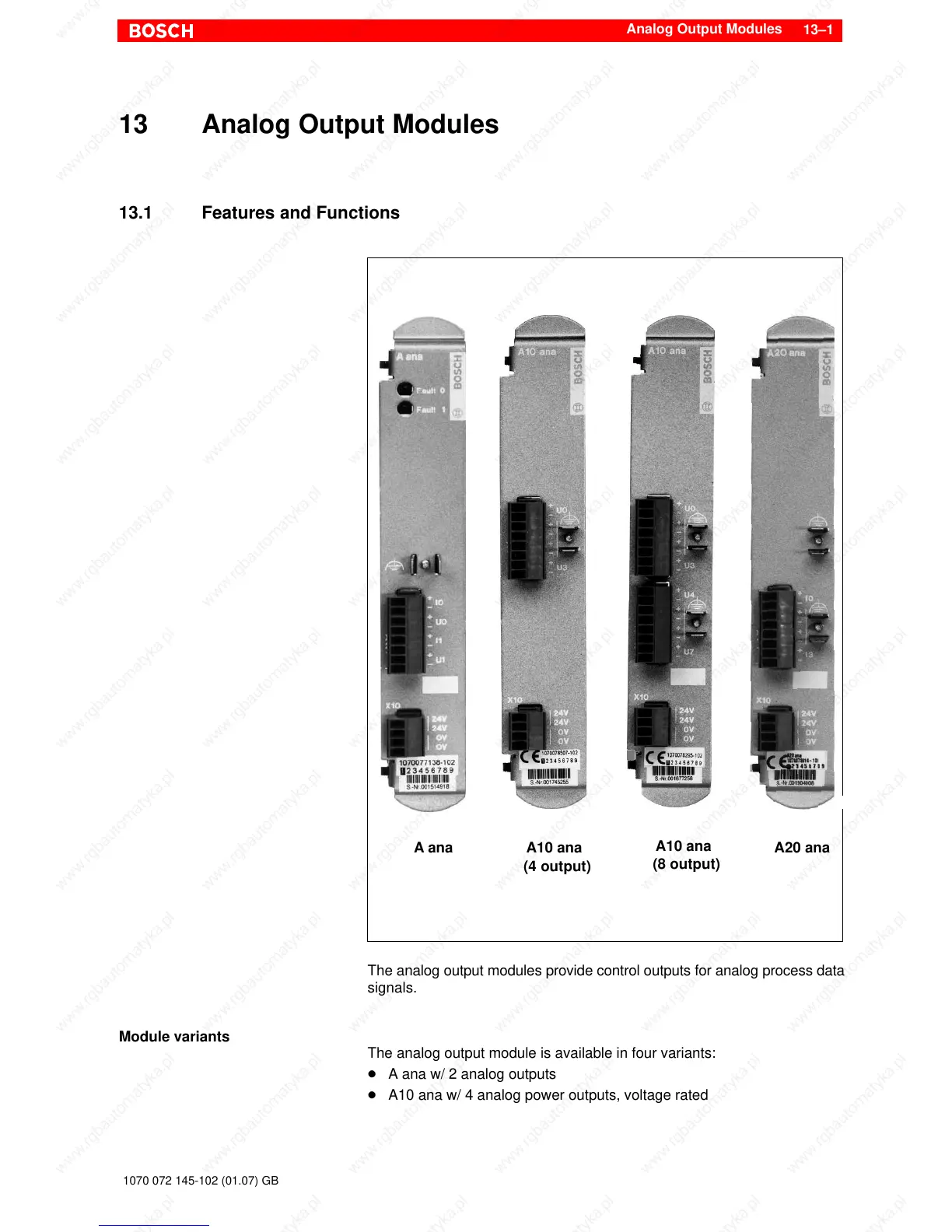

13 Analog Output Modules
13.1 Features and Functions
A ana A10 ana
(4 output)
A10 ana
(8 output)
A20 ana
The analog output modules provide control outputs for analog process data
signals.
Module variants
The analog output module is available in four variants:
D A ana w/ 2 analog outputs
D A10 ana w/ 4 analog power outputs, voltage rated
