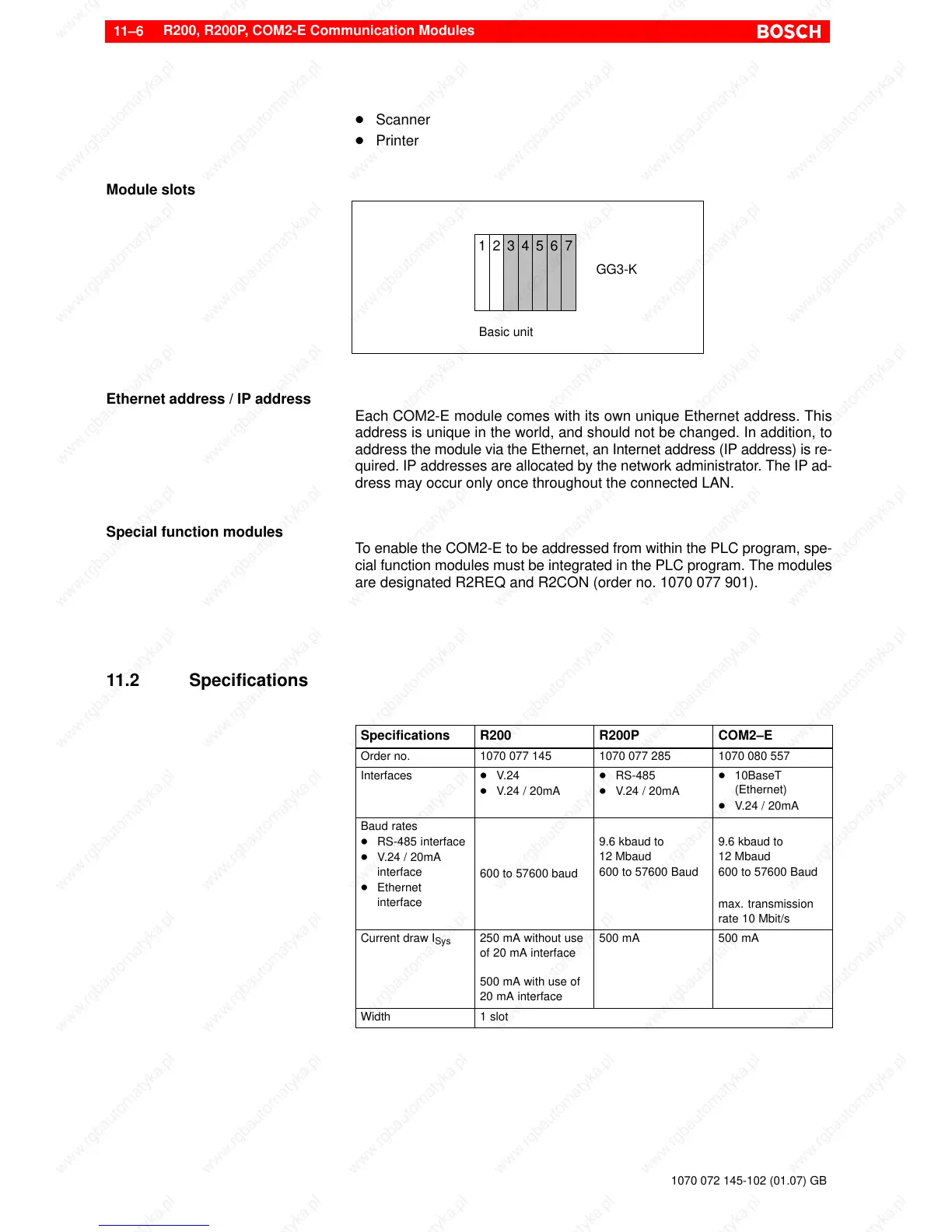

R200, R200P, COM2-E Communication Modules
11–6
1070 072 145-102 (01.07) GB
D Scanner
D Printer
Module slots
1234567
Basic unit
GG3-K
Ethernet address / IP address
Each COM2-E module comes with its own unique Ethernet address. This
address is unique in the world, and should not be changed. In addition, to
address the module via the Ethernet, an Internet address (IP address) is re-
quired. IP addresses are allocated by the network administrator. The IP ad-
dress may occur only once throughout the connected LAN.
Special function modules
To enable the COM2-E to be addressed from within the PLC program, spe-
cial function modules must be integrated in the PLC program. The modules
are designated R2REQ and R2CON (order no. 1070 077 901).
11.2 Specifications
Specifications R200 R200P COM2–E
Order no. 1070 077 145 1070 077 285 1070 080 557
Interfaces D V.24
D V.24 / 20mA
D RS-485
D V.24 / 20mA
D 10BaseT
(Ethernet)
D V.24 / 20mA
Baud rates
D RS-485 interface
D V.24 / 20mA
interface
D Ethernet
interface
600 to 57600 baud
9.6 kbaud to
12 Mbaud
600 to 57600 Baud
9.6 kbaud to
12 Mbaud
600 to 57600 Baud
max. transmission
rate 10 Mbit/s
Current draw I
Sys
250 mA without use
of 20 mA interface
500 mA with use of
20 mA interface
500 mA 500 mA
Width 1 slot
