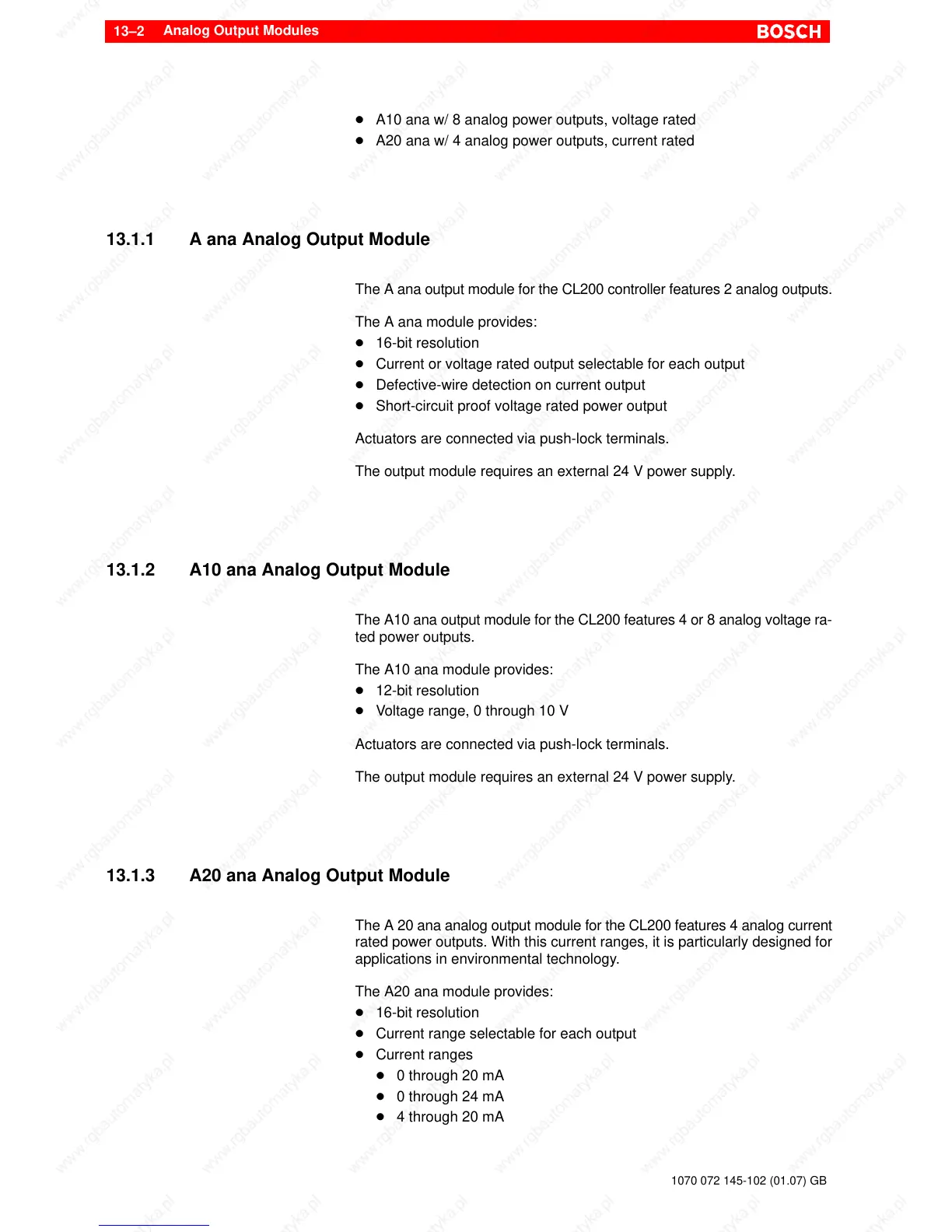

Analog Output Modules
13–2
1070 072 145-102 (01.07) GB
D A10 ana w/ 8 analog power outputs, voltage rated
D A20 ana w/ 4 analog power outputs, current rated
13.1.1 A ana Analog Output Module
The A ana output module for the CL200 controller features 2 analog outputs.
The A ana module provides:
D 16-bit resolution
D Current or voltage rated output selectable for each output
D Defective-wire detection on current output
D Short-circuit proof voltage rated power output
Actuators are connected via push-lock terminals.
The output module requires an external 24 V power supply.
13.1.2 A10 ana Analog Output Module
The A10 ana output module for the CL200 features 4 or 8 analog voltage ra-
ted power outputs.
The A10 ana module provides:
D 12-bit resolution
D Voltage range, 0 through 10 V
Actuators are connected via push-lock terminals.
The output module requires an external 24 V power supply.
13.1.3 A20 ana Analog Output Module
The A 20 ana analog output module for the CL200 features 4 analog current
rated power outputs. With this current ranges, it is particularly designed for
applications in environmental technology.
The A20 ana module provides:
D 16-bit resolution
D Current range selectable for each output
D Current ranges
D 0 through 20 mA
D 0 through 24 mA
D 4 through 20 mA
