E 24 V– Digital Input Modules
6–5
1070 072 145-102 (01.07) GB

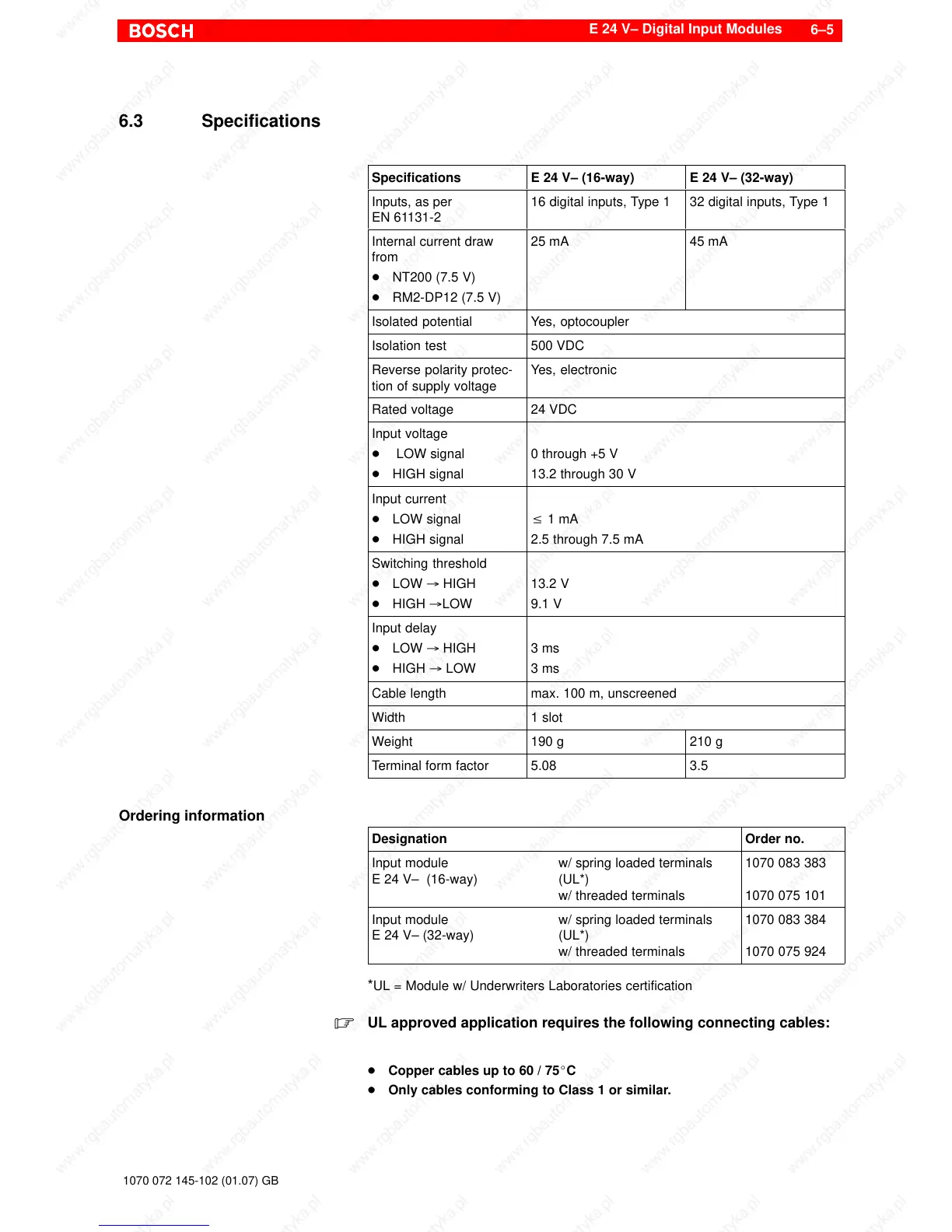

6.3 Specifications
Specifications E 24 V– (16-way) E 24 V– (32-way)
Inputs, as per
EN 61131-2
16 digital inputs, Type 1 32 digital inputs, Type 1
Internal current draw
from
D NT200 (7.5 V)
D RM2-DP12 (7.5 V)
25 mA 45 mA
Isolated potential Yes, optocoupler
Isolation test 500 VDC
Reverse polarity protec-
tion of supply voltage
Yes, electronic
Rated voltage 24 VDC
Input voltage
D LOW signal
D HIGH signal
0 through +5 V
13.2 through 30 V
Input current
D LOW signal
D HIGH signal
v 1 mA
2.5 through 7.5 mA
Switching threshold
D LOW ³ HIGH
D HIGH ³LOW
13.2 V
9.1 V
Input delay
D LOW ³ HIGH
D HIGH ³ LOW
3 ms
3 ms
Cable length max. 100 m, unscreened
Width 1 slot
Weight 190 g 210 g
Terminal form factor 5.08 3.5
Ordering information
Designation Order no.
Input module
E 24 V– (16-way)
w/ spring loaded terminals
(UL*)
w/ threaded terminals
1070 083 383
1070 075 101
Input module
E 24 V– (32-way)
w/ spring loaded terminals
(UL*)
w/ threaded terminals
1070 083 384
1070 075 924
*UL = Module w/ Underwriters Laboratories certification
. UL approved application requires the following connecting cables:
D Copper cables up to 60 / 75_C
D Only cables conforming to Class 1 or similar.
