Central Processing Unit
5–9
1070 072 145-102 (01.07) GB
5.3 MemoryCard
The ZE200M and ZE200AM central processing units feature a card slot for
the MemoryCard. The MemoryCard is used to load and back up the PLC pro-
gram.
The ZE200M and ZE200AM are equipped with a PCMCIA (”PC card”) inter-
face, version 2.01, and Type 1 card slot for access times in excess of 200 ns.
The ZE200M and ZE200AM central processing units support the following
MemoryCards, min. 1 MB capacity:
D Intel Flash Memory card, series 1 compatible
example: SCM FC 001MB-20-200CMB, series 1.
CAUTION
Before touching the MemoryCard, discharge static electricity poten-
tial of your body! Remove or install MemoryCard only while unit is
deenergized!

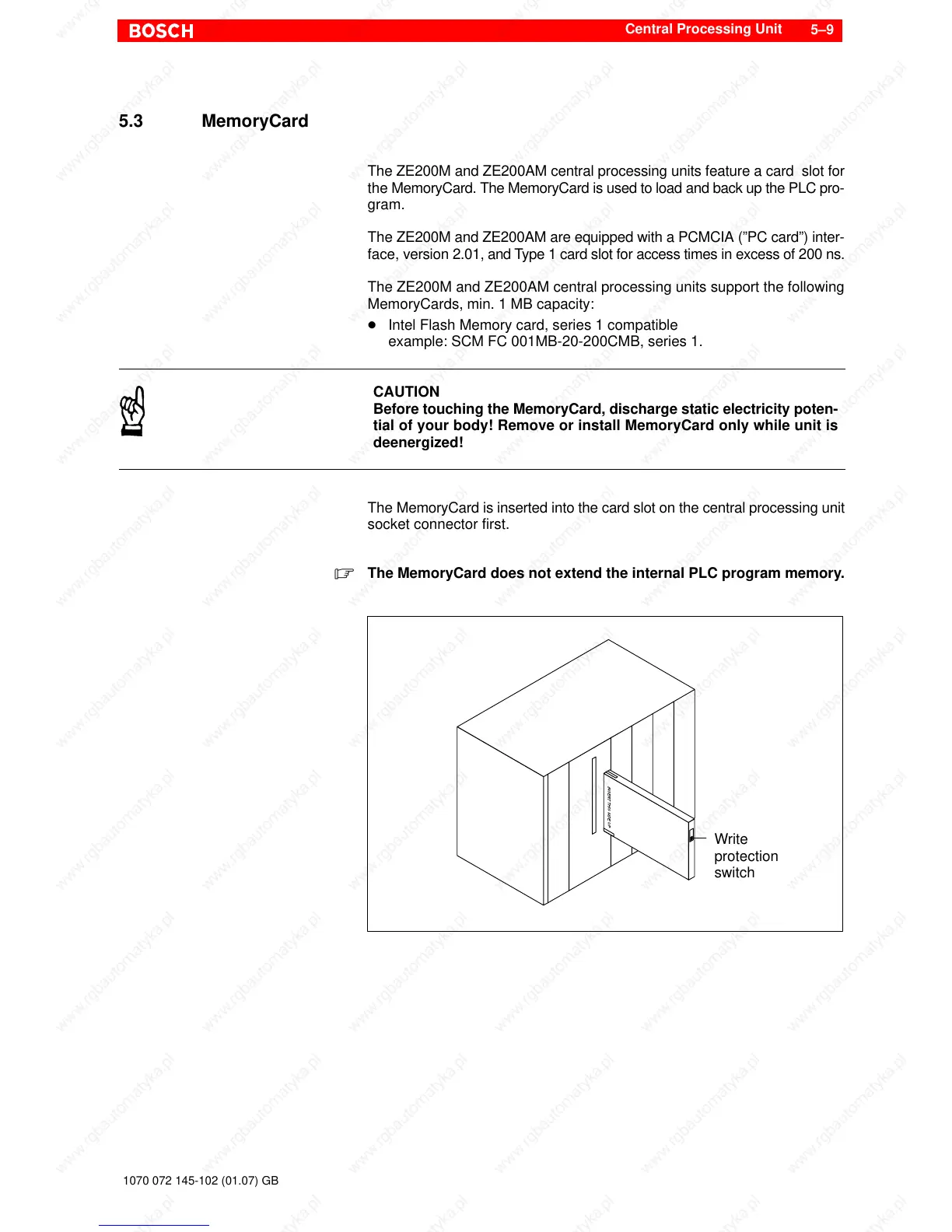

The MemoryCard is inserted into the card slot on the central processing unit
socket connector first.
. The MemoryCard does not extend the internal PLC program memory.
Write
protection
switch
