RM2-DP12 Module
16–1
1070 072 145-102 (01.07) GB

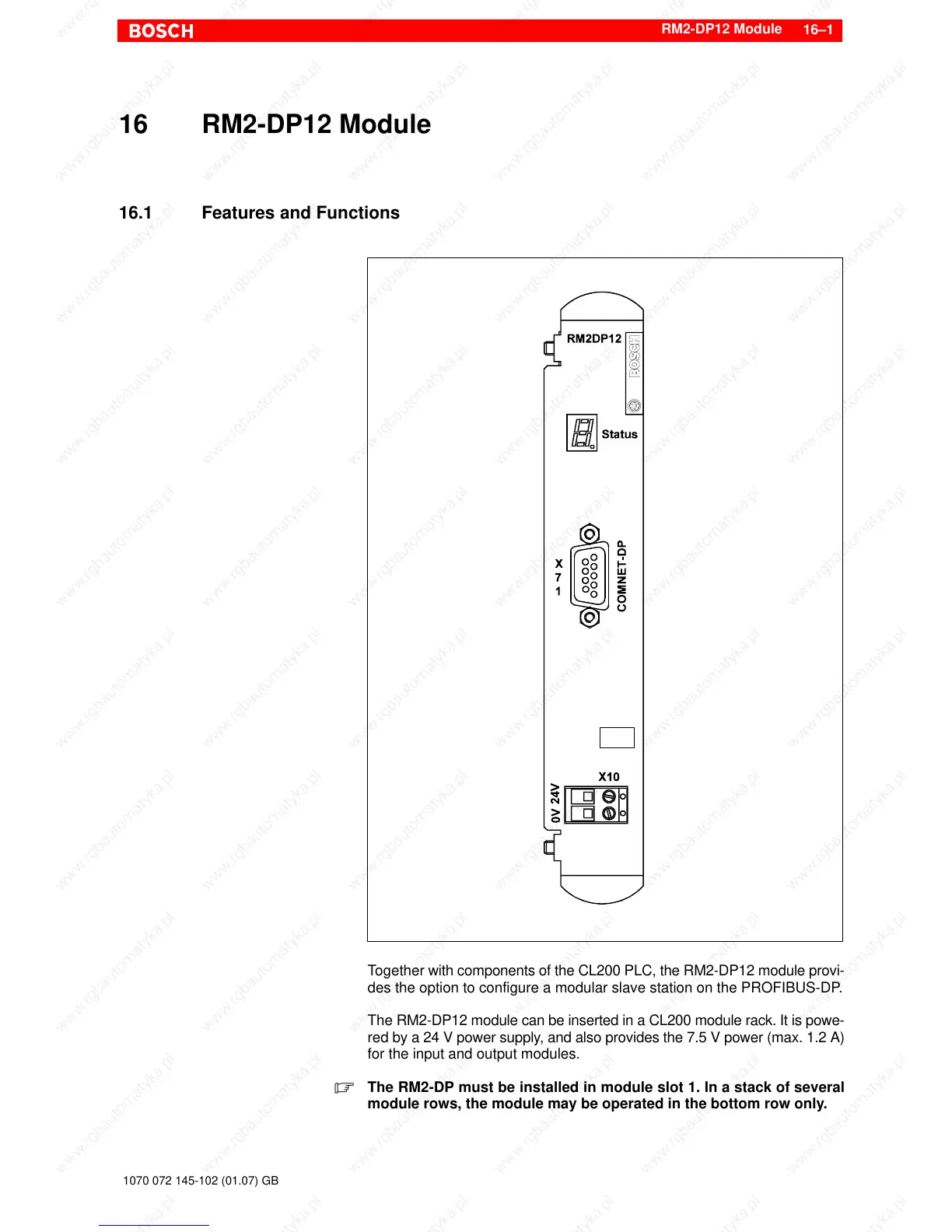

16 RM2-DP12 Module
16.1 Features and Functions
Together with components of the CL200 PLC, the RM2-DP12 module provi-
des the option to configure a modular slave station on the PROFIBUS-DP.
The RM2-DP12 module can be inserted in a CL200 module rack. It is powe-
red by a 24 V power supply, and also provides the 7.5 V power (max. 1.2 A)
for the input and output modules.
. The RM2-DP must be installed in module slot 1. In a stack of several
module rows, the module may be operated in the bottom row only.
