Module Racks
3–5
1070 072 145-102 (01.07) GB

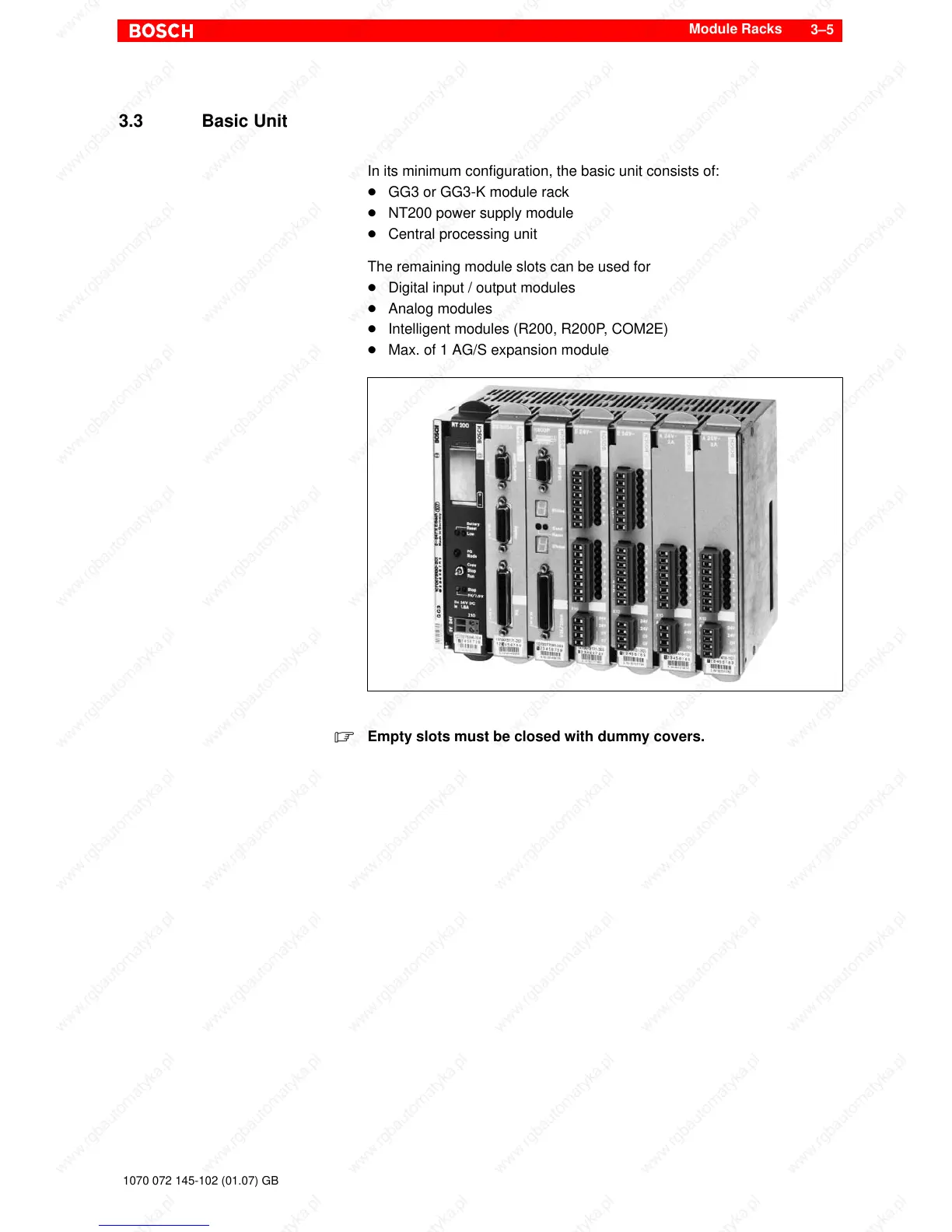

3.3 Basic Unit
In its minimum configuration, the basic unit consists of:
D GG3 or GG3-K module rack
D NT200 power supply module
D Central processing unit
The remaining module slots can be used for
D Digital input / output modules
D Analog modules
D Intelligent modules (R200, R200P, COM2E)
D Max. of 1 AG/S expansion module
. Empty slots must be closed with dummy covers.
