Module Racks
3–10
1070 072 145-102 (01.07) GB

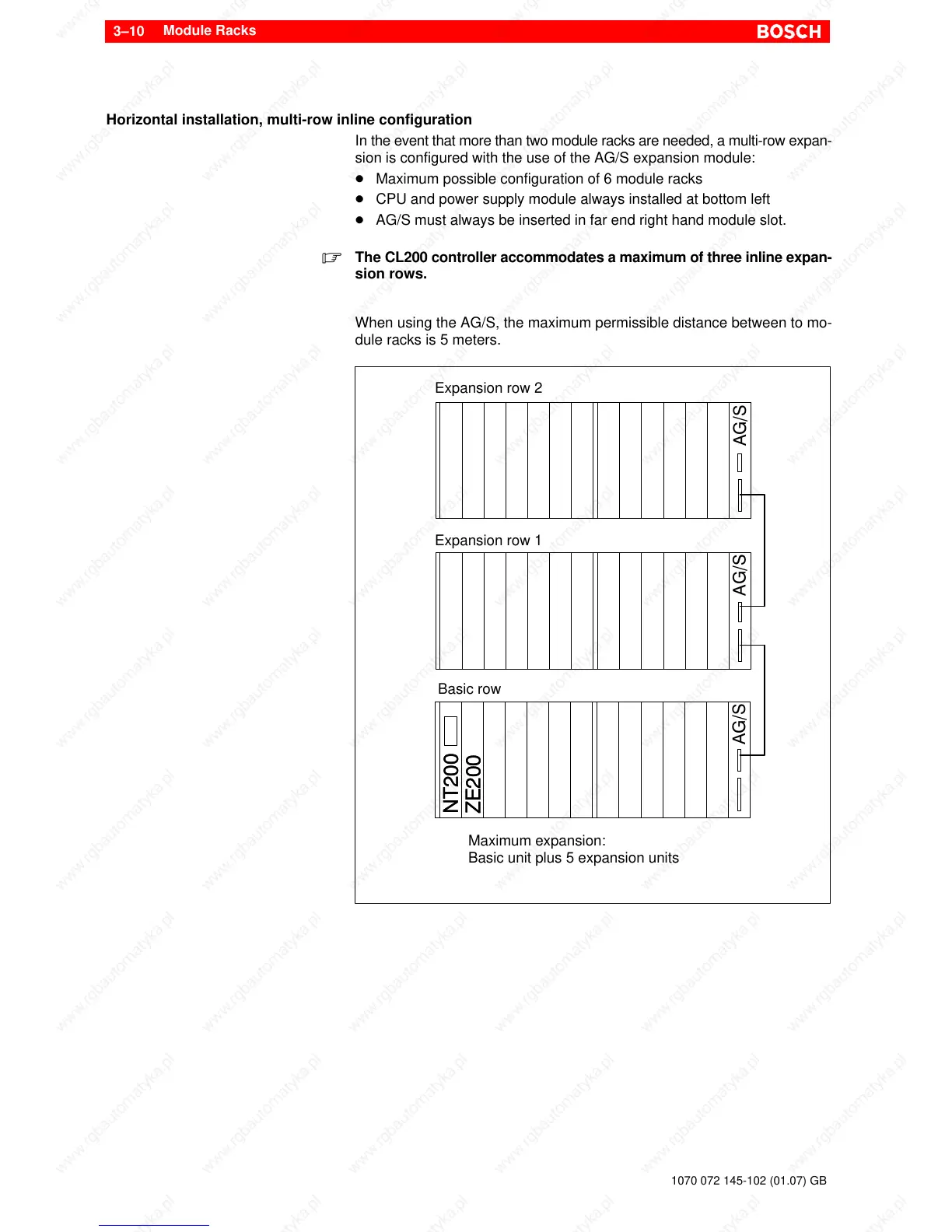

Horizontal installation, multi-row inline configuration
In the event that more than two module racks are needed, a multi-row expan-
sion is configured with the use of the AG/S expansion module:
D Maximum possible configuration of 6 module racks
D CPU and power supply module always installed at bottom left
D AG/S must always be inserted in far end right hand module slot.
. The CL200 controller accommodates a maximum of three inline expan-
sion rows.
When using the AG/S, the maximum permissible distance between to mo-
dule racks is 5 meters.
Maximum expansion:
Basic unit plus 5 expansion units
NT200
ZE200
NT200
ZE200
Basic row
Expansion row 1
Expansion row 2
AG/S
AG/S
AG/S
