Module Racks
3–11
1070 072 145-102 (01.07) GB

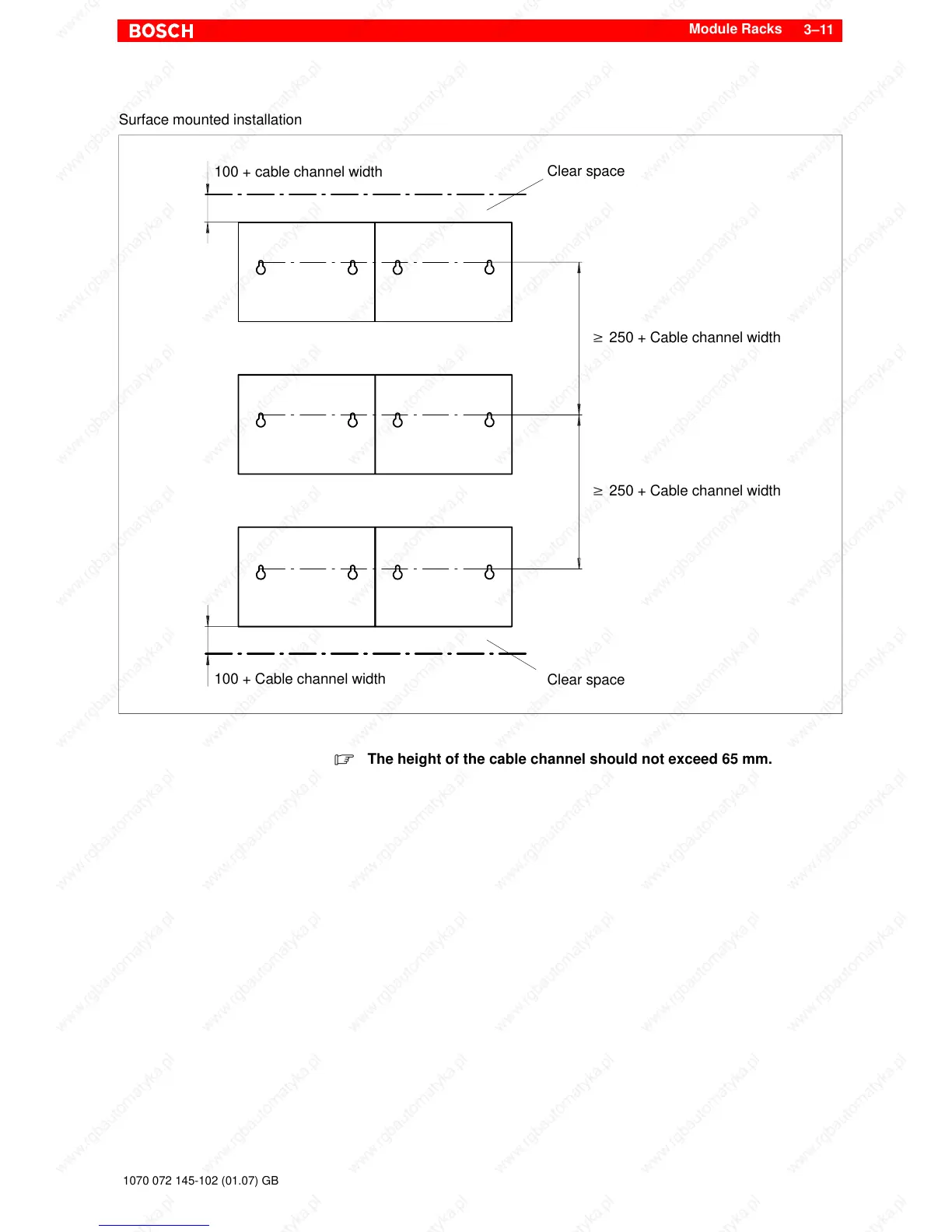

Surface mounted installation
Clear space
Clear space
w 250 + Cable channel width
w 250 + Cable channel width
100 + cable channel width
100 + Cable channel width
. The height of the cable channel should not exceed 65 mm.
