Central Processing Unit
5–4
1070 072 145-102 (01.07) GB
Second serial interface
The ZE201 provides a second serial interface with additional transmission
protocols.
COMNET-DP interface
The ZE200-DP and ZE200A-DP feature a PROFIBUS-DP interface (mar-
ked “COMNET-DP” on the module) for field bus connection.

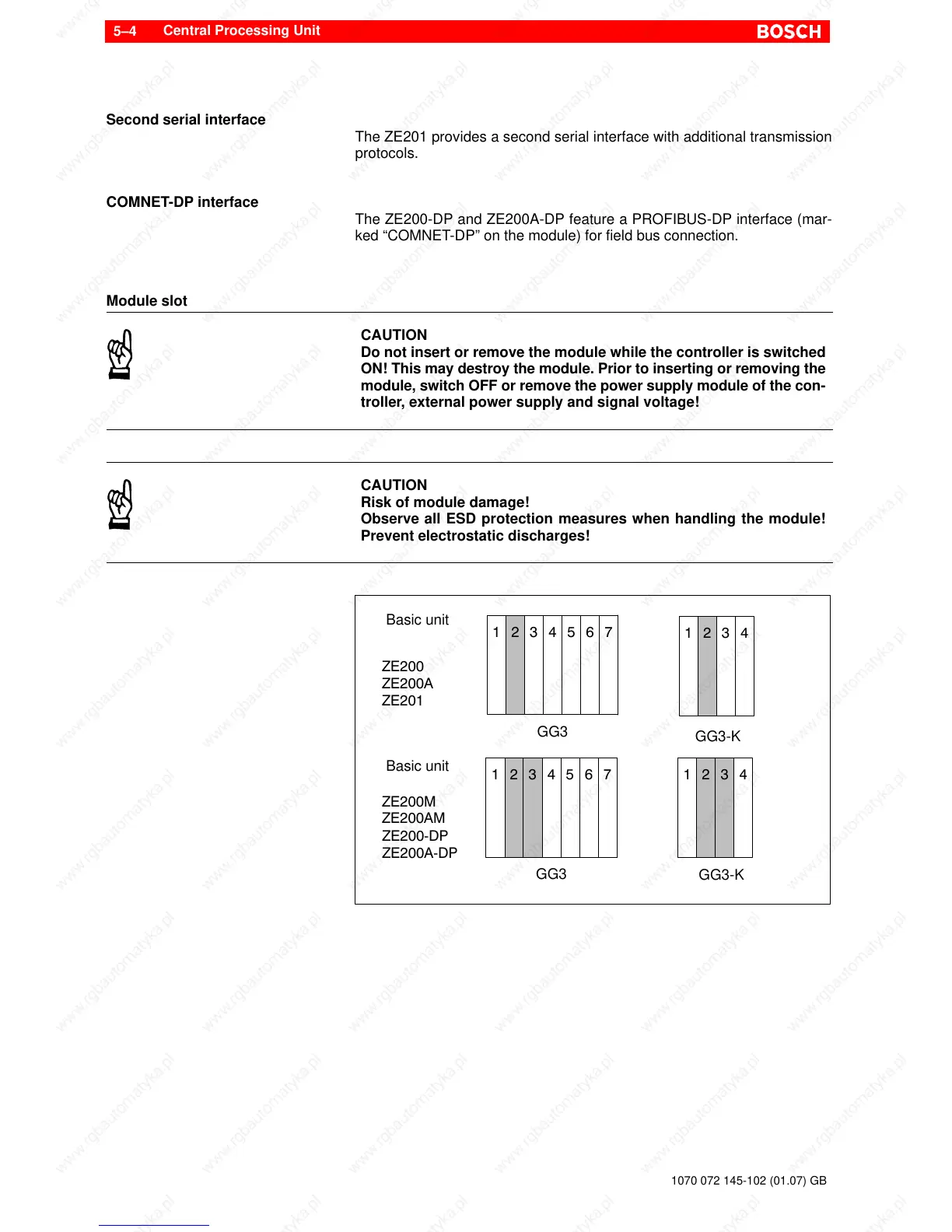

Module slot
CAUTION
Do not insert or remove the module while the controller is switched
ON! This may destroy the module. Prior to inserting or removing the
module, switch OFF or remove the power supply module of the con-
troller, external power supply and signal voltage!
CAUTION
Risk of module damage!
Observe all ESD protection measures when handling the module!
Prevent electrostatic discharges!
1234567
Basic unit
GG3
ZE200
ZE200A
1234567
Basic unit
GG3
ZE200M
ZE200AM
1234
GG3-K
ZE201
ZE200DP
1234
GG3-K
ZE200ADP
