Central Processing Unit
5–13
1070 072 145-102 (01.07) GB

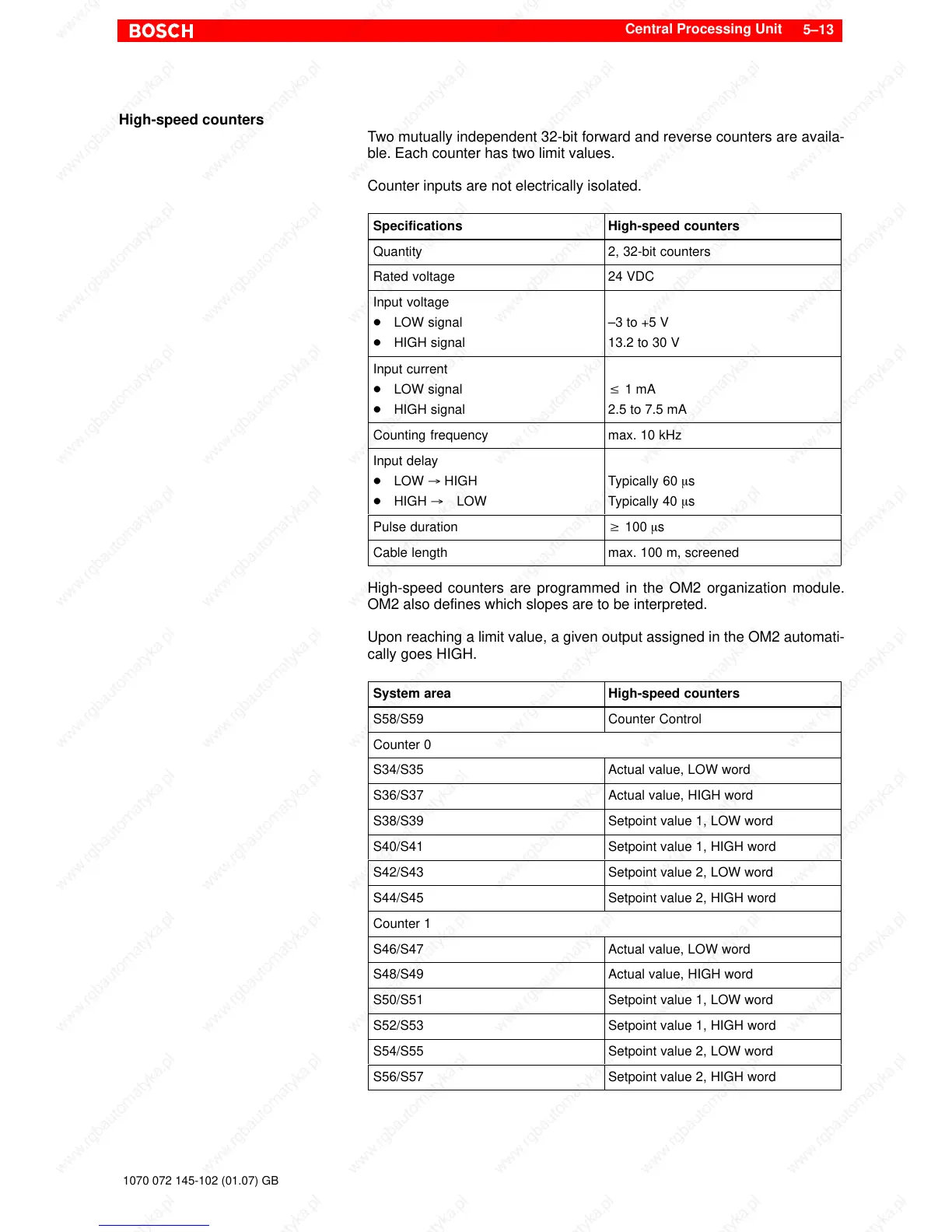

High-speed counters
Two mutually independent 32-bit forward and reverse counters are availa-
ble. Each counter has two limit values.
Counter inputs are not electrically isolated.
Specifications High-speed counters
Quantity 2, 32-bit counters
Rated voltage 24 VDC
Input voltage
D LOW signal
D HIGH signal
–3 to +5 V
13.2 to 30 V
Input current
D LOW signal
D HIGH signal
v 1 mA
2.5 to 7.5 mA
Counting frequency max. 10 kHz
Input delay
D LOW ³ HIGH
D HIGH ³ LOW
Typically 60 ms
Typically 40 ms
Pulse duration w 100 ms
Cable length max. 100 m, screened
High-speed counters are programmed in the OM2 organization module.
OM2 also defines which slopes are to be interpreted.
Upon reaching a limit value, a given output assigned in the OM2 automati-
cally goes HIGH.
System area High-speed counters
S58/S59 Counter Control
Counter 0
S34/S35 Actual value, LOW word
S36/S37 Actual value, HIGH word
S38/S39 Setpoint value 1, LOW word
S40/S41 Setpoint value 1, HIGH word
S42/S43 Setpoint value 2, LOW word
S44/S45 Setpoint value 2, HIGH word
Counter 1
S46/S47 Actual value, LOW word
S48/S49 Actual value, HIGH word
S50/S51 Setpoint value 1, LOW word
S52/S53 Setpoint value 1, HIGH word
S54/S55 Setpoint value 2, LOW word
S56/S57 Setpoint value 2, HIGH word
