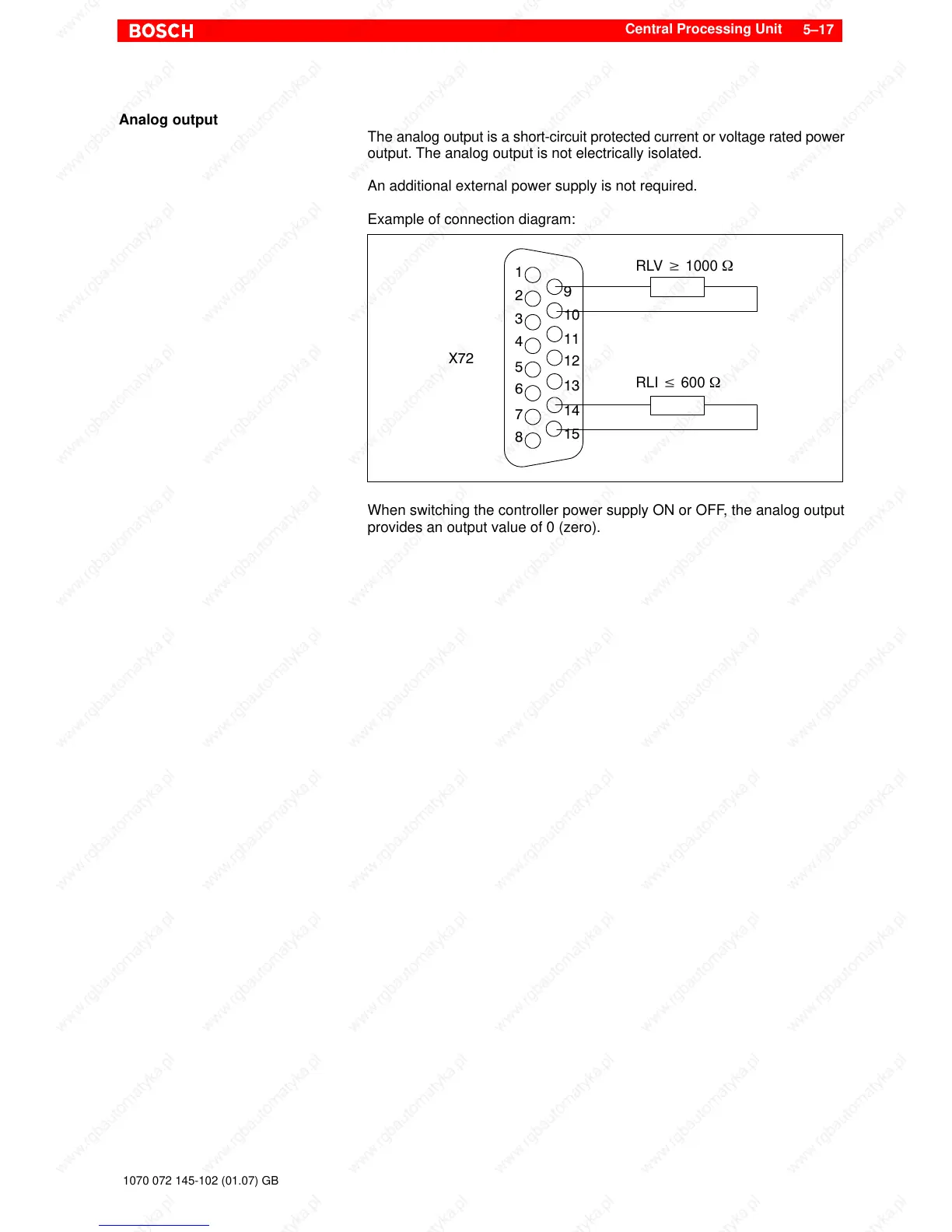

Analog output
The analog output is a short-circuit protected current or voltage rated power
output. The analog output is not electrically isolated.
An additional external power supply is not required.
Example of connection diagram:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
RLV w 1000 W
RLI v 600 W
X72
When switching the controller power supply ON or OFF, the analog output
provides an output value of 0 (zero).
