Digital Output Modules
7–6
1070 072 145-102 (01.07) GB

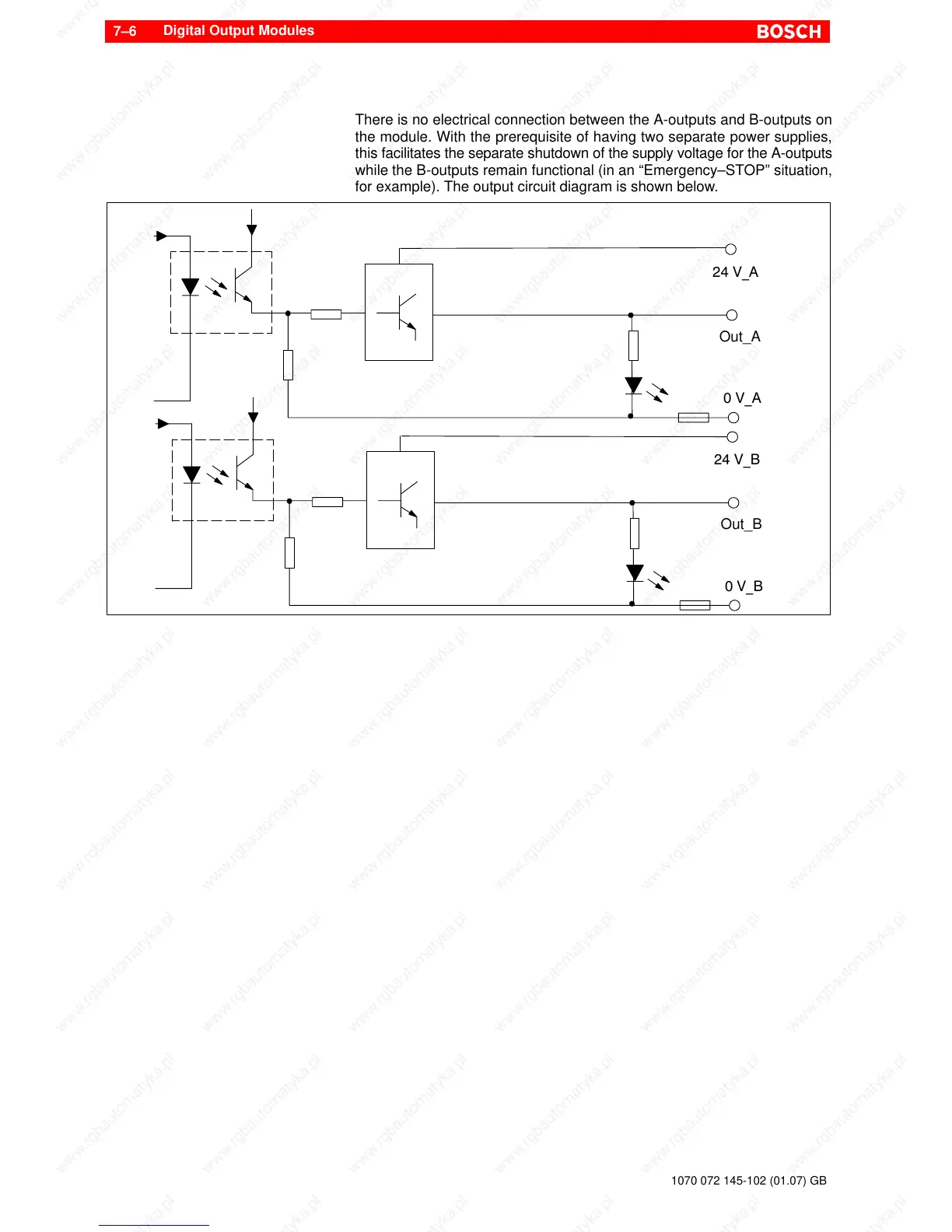

There is no electrical connection between the A-outputs and B-outputs on
the module. With the prerequisite of having two separate power supplies,
this facilitates the separate shutdown of the supply voltage for the A-outputs
while the B-outputs remain functional (in an “Emergency–STOP” situation,
for example). The output circuit diagram is shown below.
0 V_A
Out_A
24 V_A
0 V_B
Out_B
24 V_B
