Panel Controller Networked panels | en 33
Bosch Sicherheitssysteme GmbH User Guide 2017.09 | 7.0 | F.01U.258.929
6 Networked panels
Panels can be networked with one another via a CAN bus or an Ethernet connection. This
chapter describes the similarities between the two physical networking principles. Detailed
notes on networking via Ethernet can be found in Networking via Ethernet, page 36. Details on
planning and commissioning are provided in the network manual. Fire detection systems can
only be networked with the FPA-5000.
– Icons on the display, page 33
– Network addressing, page 33
– Establishing a remote connection with a networked panel, page 34
– Terminating a remote connection with a networked panel, page 34
– Isolating and restricted connection, page 34: A restricted connection can be established
with a panel that is already operated by another panel (isolating connection).
– Networking via Ethernet, page 36
The following functions cannot be carried out on a panel that is operated by another panel:
– Bypass
– Isolate
– Switch to Walktest
– Change configuration
You can reset elements and read out the history log.

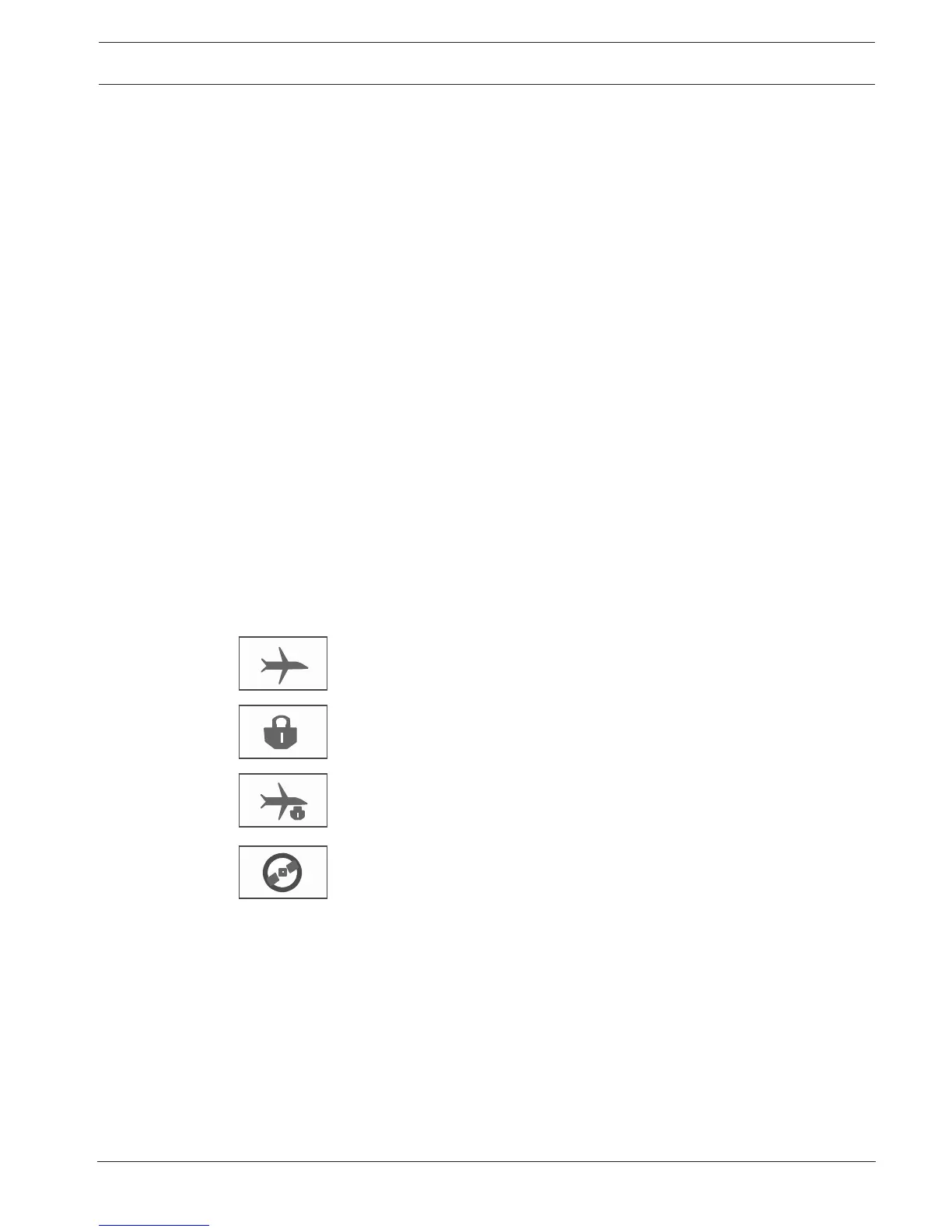

6.1 Icons on the display
The following icons are displayed in the standby display/info bar/list field of a networked
panel, depending on the type of connection. Further explanations of the icons can be found in
Establishing a remote connection with a networked panel, page 34.
There is a remote connection between panel A or a remote keypad and
a networked panel B .
The networked panel B is operated from panel A or from a remote
keypad and is isolated for operation.
The networked panel B, with which panel A or a remote keypad has
already established a remote connection, in turn establishes a remote
connection with a networked panel C.
There is a restricted remote connection with a networked panel.
6.2 Network addressing
In the case of a networked panel, the network address is also displayed. The network address
consists of a node ID and group ID, which are assigned using the FSP-5000-RPS programming
software.
If, for example, a fault in a detector with network address 1 - 4 is displayed, this means:
– Group ID = 1
– Node ID = 4
