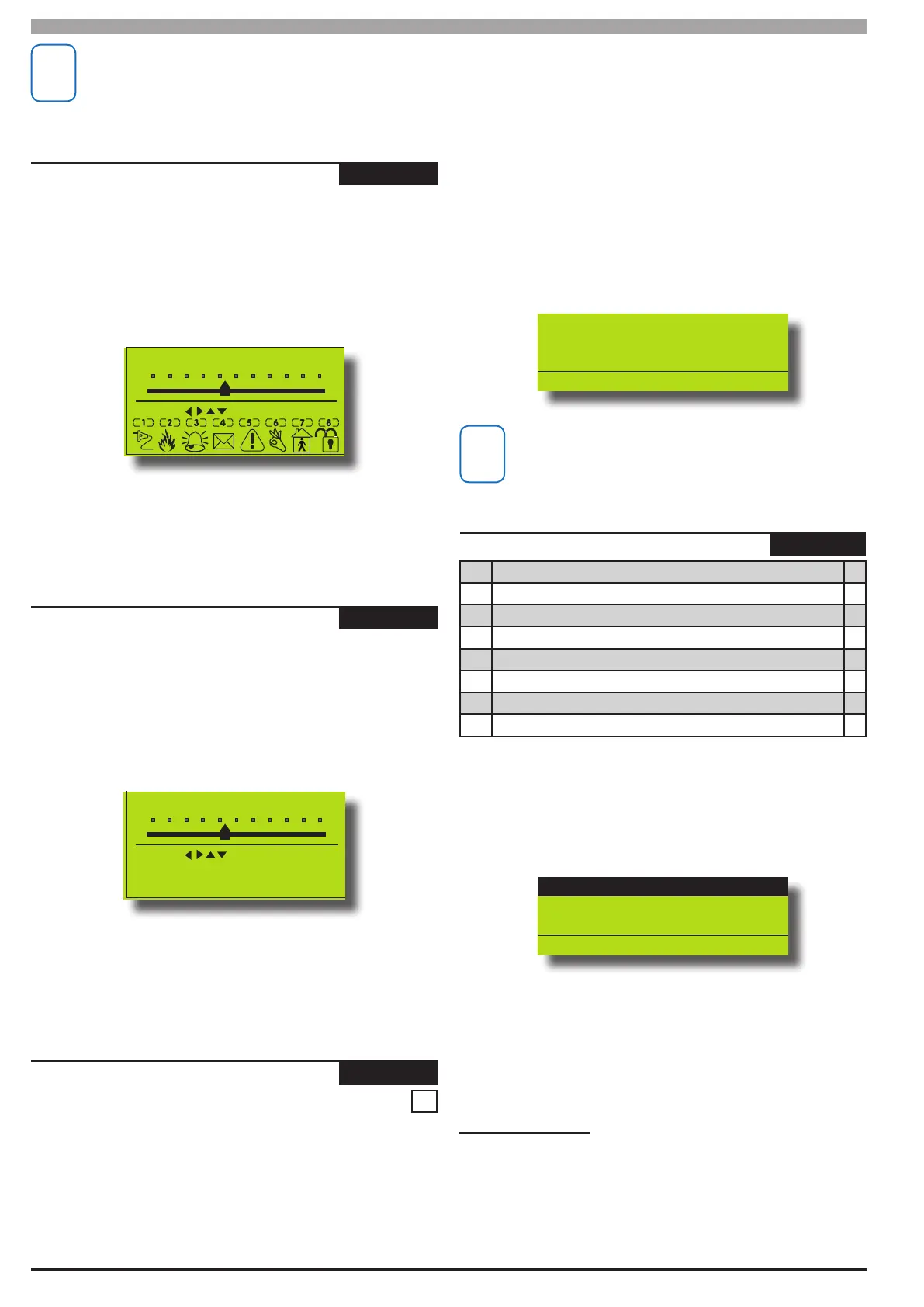

10-2
Bosch Security Systems 05/10 BLCC100I
Solution 16
plus
Installation Manual Device Programming
To completely silence the keypad speaker, simply move the slider
all the way to the left. This will disable the keypad speaker for all
functions including key press beeps.
Devices > Keypads >
Keypad Contrast
-
MENU 6-1-1
This menu allows you to adjust the contrast of the keypad’s LCD
display to suit the application or customer preference. Each
keypad on the system can be adjusted separately.
1) Press [MENU] + [6] + [1] + [1] and use the up and down arrows
to highlight the keypad in the list then press [OK].
L
Keypad 001 Contrast
Press
SAVE
OK
to
H
2) Use the arrow keys to set the required contrast level. Each time
a key is pressed the contrast will adjust to the new level. When
nished press [OK].
Devices > Keypads >
Keypad Backlight
-
MENU 6-1-2
This menu allows you to adjust the brightness of the backlight
on the keypad’s LCD display. Each keypad can be adjusted
separately to suit the customers needs.
1) Press [MENU] + [6] + [1] + [2] and use the up and down arrows
to highlight the keypad in the list then press [OK].
L
Keypad 001 Backlight
Press
SAVE
OK
to
H
2) Use the arrow keys to set the required backlight level. Each
time a key is pressed the backlight will adjust to the new level.
When nished press [OK].
Devices > Keypads >
Home Area
MENU 6-1-3
1
This menu allows you to assign each keypad to a default home
area (Area 1 to 4). Only 1 home area can be programmed for
each keypad.
If a user toggles the keypad display to view a dierent area, the
keypad will automatically timeout and move back to the home
area if no key is pressed for a period of 60 seconds.
To prevent users from viewing areas which they do not have
access to, you will need to enable the PIN To Change Area
option. Setting this option will set the system to request a user’s
PIN before allowing them to view another area. The system
will only allow a user to view the areas they have access to.
See MENU 6-1-4 — Keypad General Options.
1) Press [MENU] + [6] + [1] + [3] and use the up and down arrows
to highlight the keypad in the list then press [OK].
2) Use the up and down arrow keys to select the Home Area
required then Press [OK] to save and exit or press [MENU] to
exit without saving.
Home Area Kp001
01 - Area 1
Press 0-9 OK to SAVE
All keypads must be set to a unique address via the node select
switch on the keypad and they all must have a home area
programmed to work correctly. Area 1 is the default Home Area.
Devices > Keypads >
General Options
MENU 6-1-4
1 Keypad Extinguish N
2 Greeting On Arm Y
3 Greeting On Disarm Y
4 Enable Rear Tamper N
5 PIN To Change Area N
6 Home Area Only N
7 Report Keypad Temperature Y
8 Display Area ICON Indicators N
The above options can be congured independantly for each
keypad tted to the system.
1) Press [MENU] + [6] + [1] + [4] and use the up and down arrows
to highlight the keypad in the list then press [OK].
Extinguish Keypad
Greeting On Arming
Greeting On Disarming
Press OK ON OFF MENU
2) Use the up and down arrow keys to highlight the option then
press the [ON] key to enable or the [OFF] key to disable.
3) Repeat Step 2 until all options are programmed as required,
then press [OK] to save and exit or press [MENU] to exit
without saving.
Keypad Extinguish
Setting this option congures the panel to automatically turn o the
keypad backlighting after an inactivity period of 60 seconds. As soon
as a key is pressed or an alarm occurs, the keypad backlight will turn
on.
