B-8 îš¡ Replacing the Stylus Blade
Step 3: Carefully pull on the blade to remove it, as shown here:

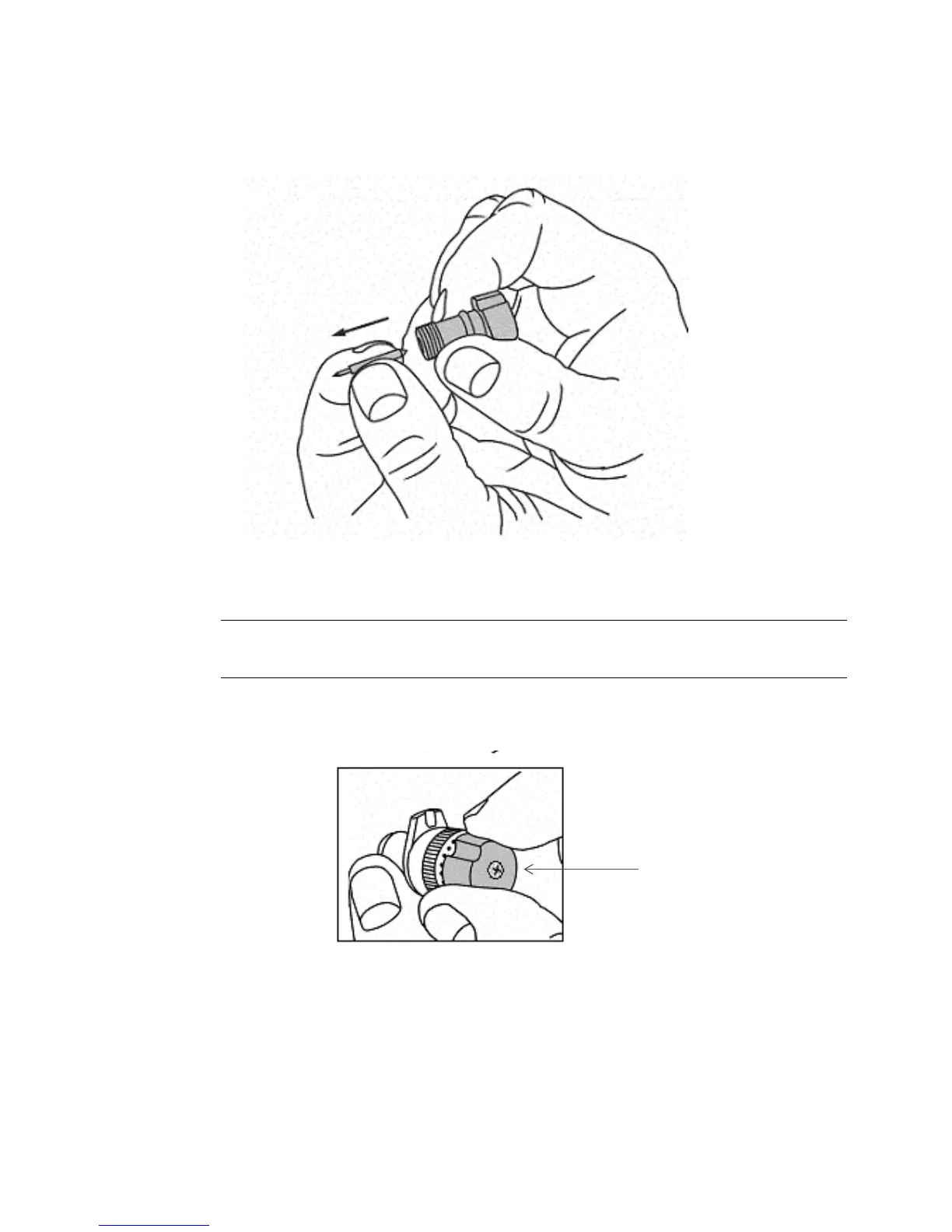

Figure B-6. Removing the blade.
CAUTION: Be careful to grasp the blade on the shank, and not on the
cutting edge.
If the blade does not remove easily, you may need to remove the screw
that holds the blade stylus in place, as shown here:
Figure B-7. Stylus screw adjustment
If the blade still does not remove easily, insert the screwdriver or other
appropriate implement into the screw hole and push the blade out
Step 4: Insert the new blade. If you removed the screw, tighten it or replace it.
Use screw
driver to
remove screw
to release
stylus blade (if
necessary)
