BRAILLO
l
B 650 SF
28

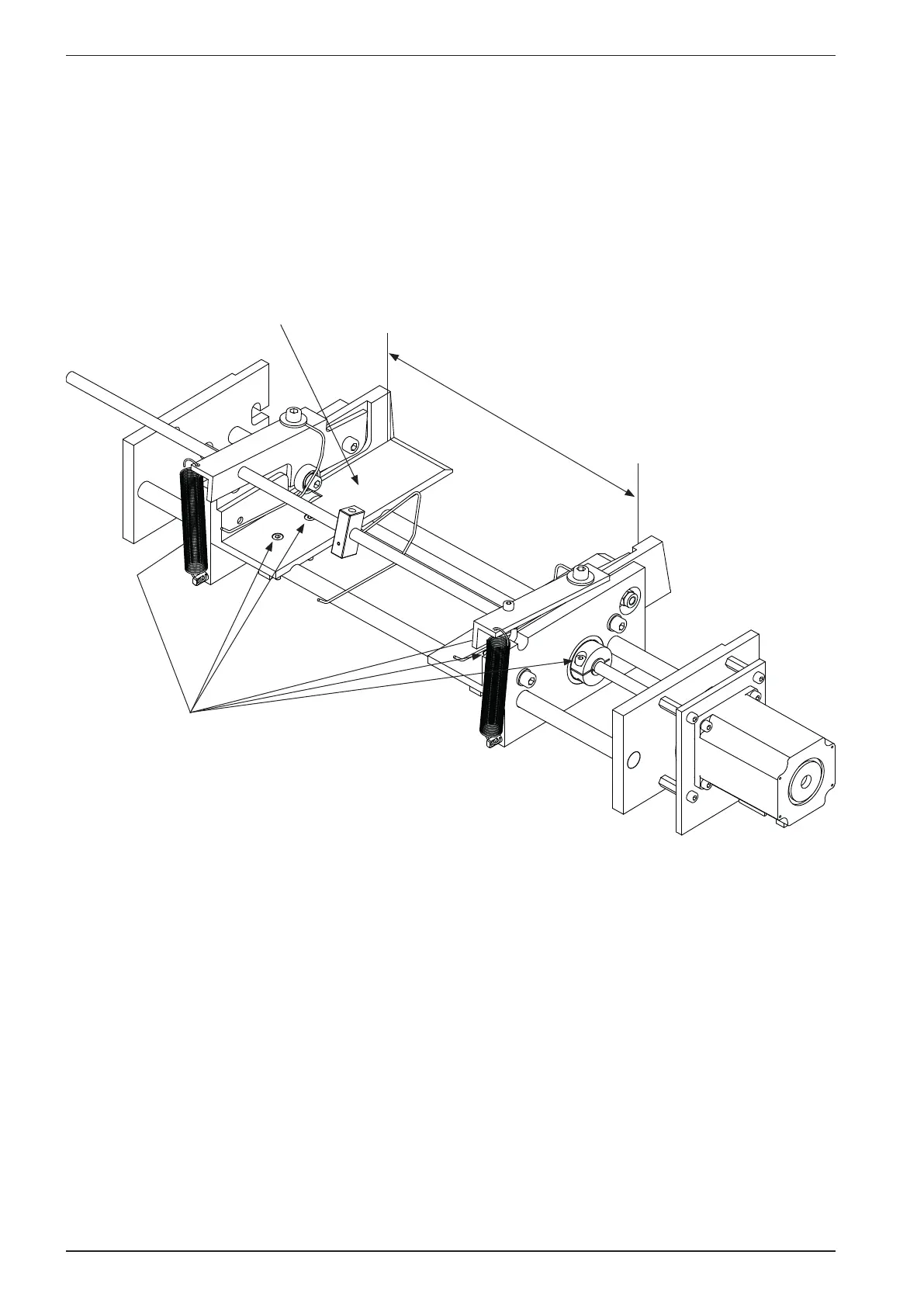

Paper feeder, adjust width.
Loosen the bolts (A) without taking the bolts out. The two units can now be moved sideways. Note
that the unit on the side nearest to the main belt will also determine the top margin. Use a paper sample
to nd the correct position for the two units. The paper sample should t exactly in between the two
units. Fix the units by tightening the bolts (A).
Adjust to
sheet width
Loosen these bolts,
(A) 3 on each side.
The position on this
feeder will determine the
size of the top margin
