17” Floor Box Vertical Position

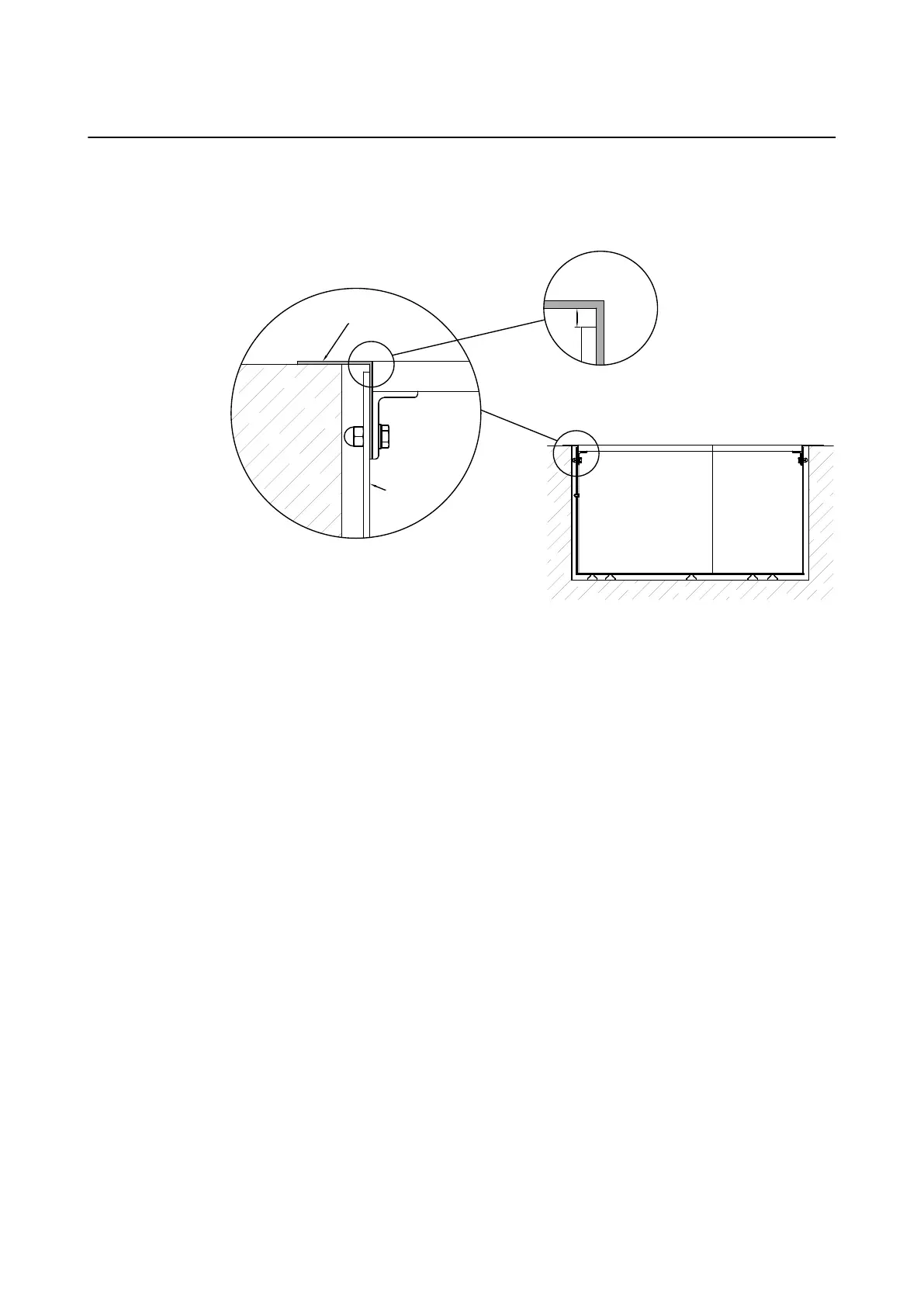

The following image shows a side view of the 17” floor box position relative to the isocenter:
finished floor
box wall
vertically adjustable
plate frame
0-10mm
Figure 53
The floor box can be fixed with bolts (not included). The vertical position of the floor box can be
leveled in with three adjustment screws and leveling feet. The leveling feet with screws and nuts
are added in a separate package.
17” Floor Boxes for X-Ray Tubes
120 Site Planning Manual Rev. 1.0
ExacTrac Ver. 6.x
