5.2 Ceiling Mount Installation
5.2.1 How to Mount the Flat Panel Detector Systems
General Installation Information
Component Description
Weight 50 kg
Factor of safety Four (construction must carry 200 kg)
Bolts required
Six (two for the ceiling bracket, four for support cables)

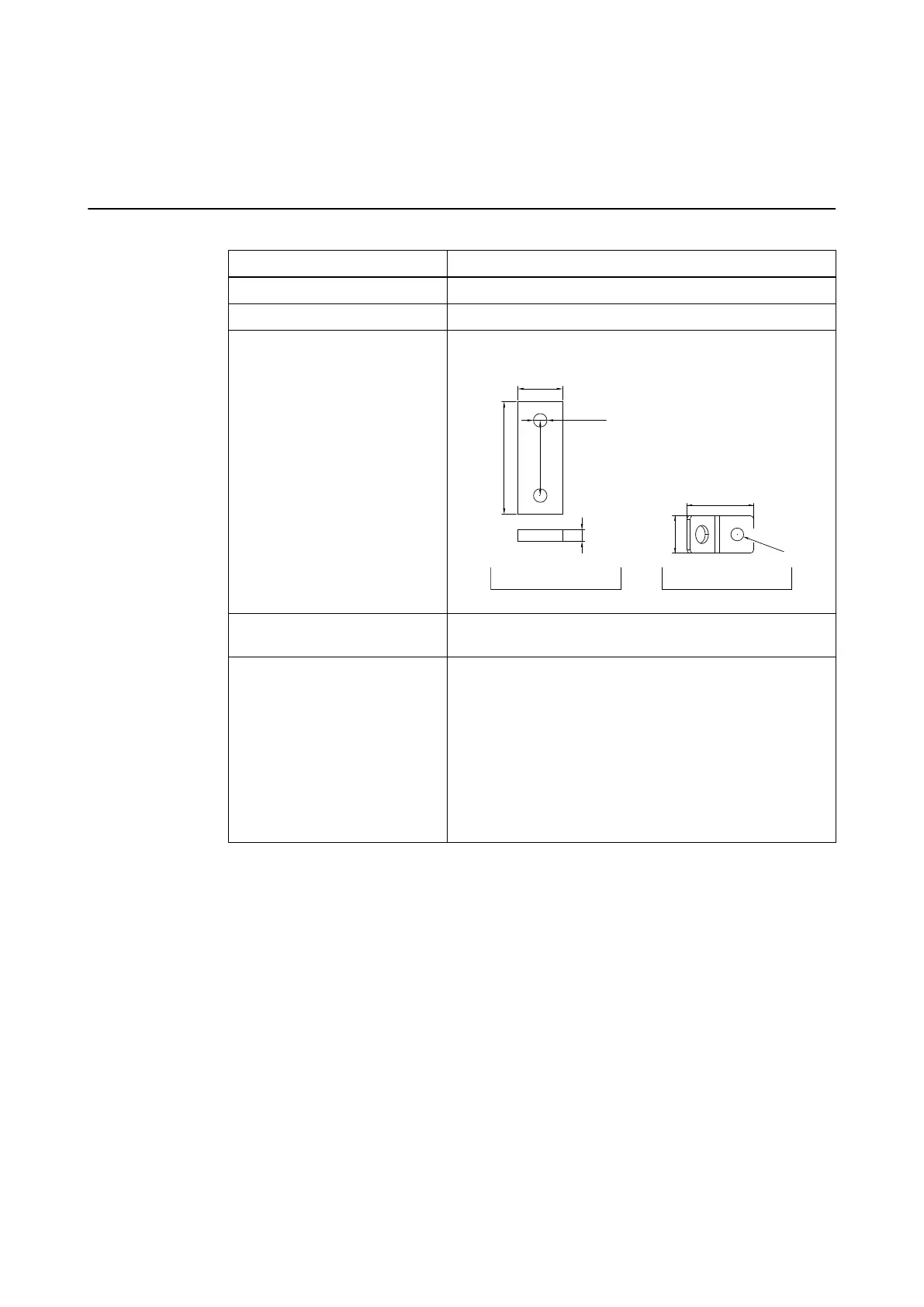

Use the 17 mm hole to attach the angle to the ceiling.
60mm
150mm
Ø18mm
100mm
15mm
Ø17mm
50mm
88mm
Ceiling Bracket Rope Ceiling Angle
Mounting accuracy for Infrared
Camera System
The interface plate has the same orientation as the vertical
profile bar is. The slots are perpendicular to the center line.
Mounting accuracy for Flat Panel
Detector System
If there are pipes, HVAC, med gas, or other fixed objects ob-
structing the mounting position, the ExacTrac ceiling mount
may not be moved closer to isocenter
, but can be adjusted at
a maximum of 30 mm further away from isocenter.
Furthermore the brackets (ceiling plate) may be rotated for
90°. Otherwise, items that impede the installation of the flat
panel ceiling brackets must be re-routed or moved.
The Interface Plate must be attached to the profile at a 45°
angle. The slots of the plate are perpendicular to the line to-
wards the isocenter.
