5 CEILING AND WALL
MOUNTS
5.1 Introduction
General Information
Brainlab provides all hardware parts, except bolts for the concrete ceiling, as local conditions and
building construction varies. The hospital or contractor is responsible for:
•
Installing all ceiling and wall mounts according to local work safety regulations.
•
Providing appropriate fixation with bolts and anchors according to local regulations.
• Assuring correct installation by signing a compliance statement during the acceptance
procedure. Ideally, the statement of compliance should be signed before starting installation.

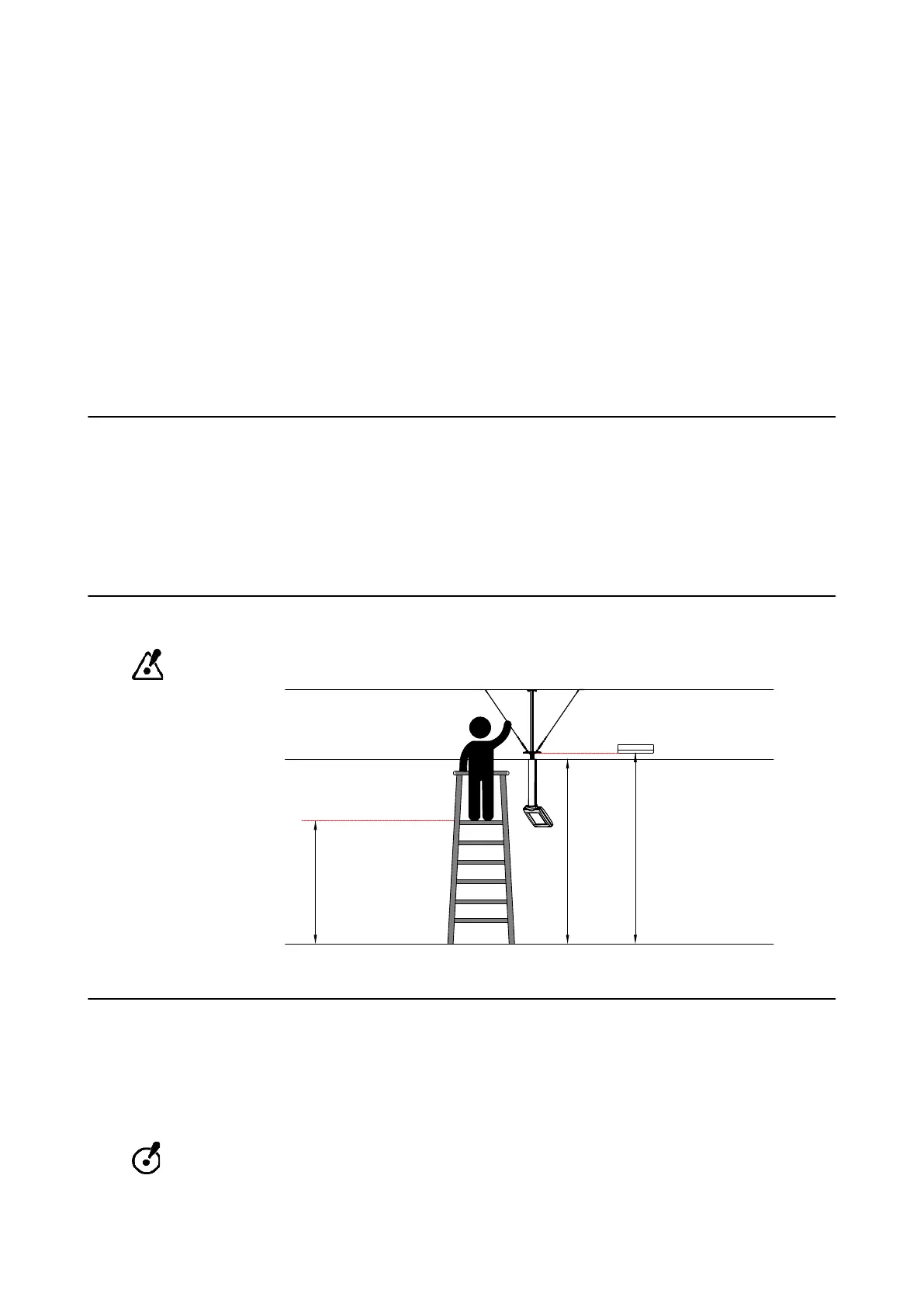

Maximum Working Height
If you need to stand higher than 2 m above the floor, use a scaffold.
2000
3000
3100
Max. working height
without scaffold
Max. height for
ETX interface plate and
in-room distribution box
Figure 18
T
ypes of Ceiling Mounts
List of ExacTrac
ceiling mounts:
• Ceiling frame for touch screen monitor (optional)
• Two flat panel ceiling mounts
• One in-room distribution box
If immobile objects are in the way of the mounting positions, you may provide interfaces
for the Brainlab equipment (see page 57).
CEILING AND W
ALL MOUNTS
Site Planning Manual Rev. 1.0 ExacTrac Ver. 6.x 47
