12.7 17” Floor Boxes for X-Ray Tubes
17” Floor Box Dimensions

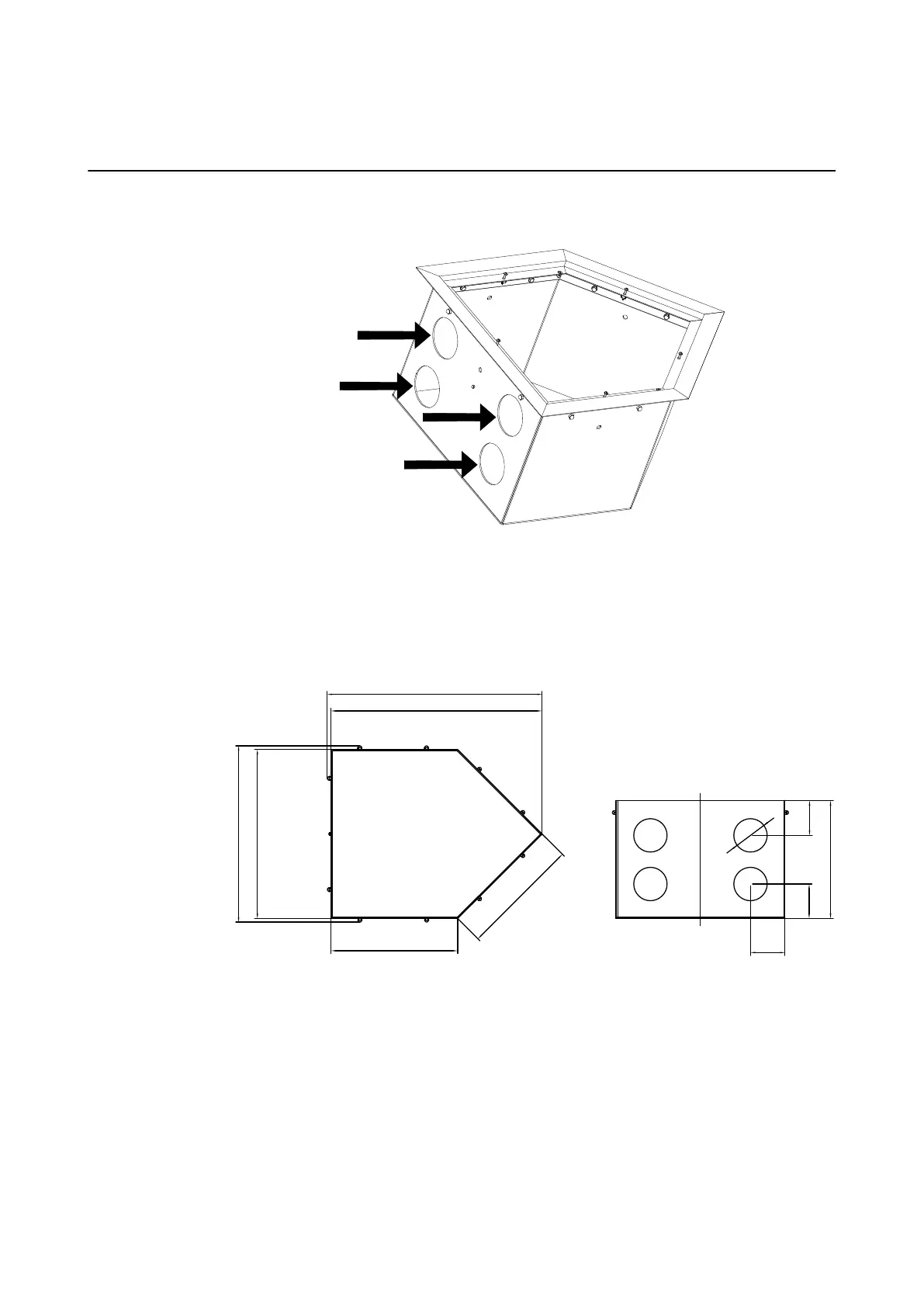

The following image provides an overview of a 17” floor box for X-ray tube, including cable outlets
(arrows):
Figure 48
The following image shows a top and back view (without leveling feet) of the 17” floor box for X-
ray tube:
125mm
124mm
424mm
608mm
638mm
430mm
456mm
Ø120mm
124mm
760mm
775mm
Figure 49
• Both floor boxes are identical and have four possible cable outlets.
•
One of the outlets is sufficient to induct all cables (lead conduit to any outlet).
• The floor boxes are delivered with leveling feet for fine adjustment.
• The tips of the cap nut define the external dimensions of the floor box.
