Recess Dimensions for 17’’ Floor Box

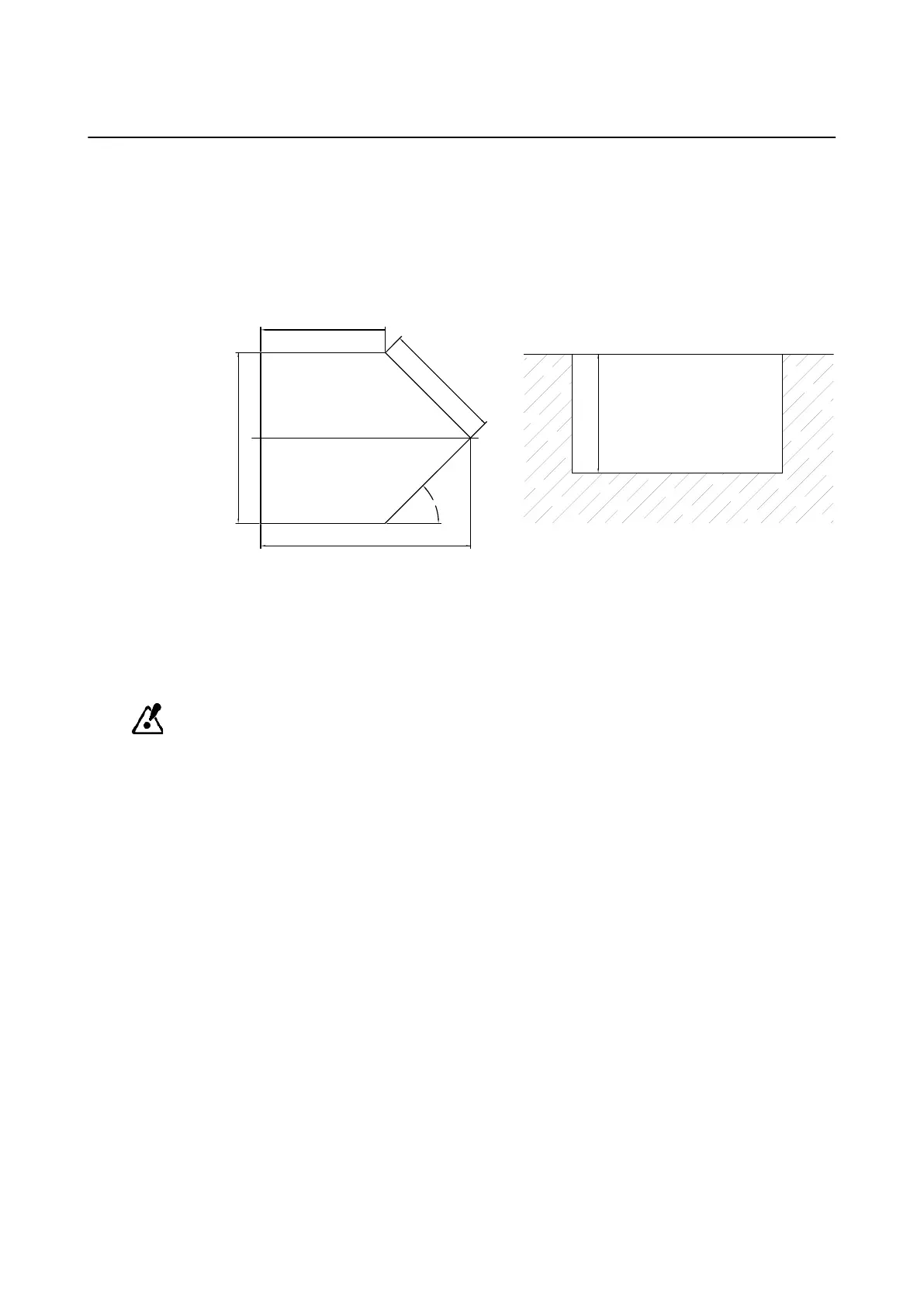

The following image shows recommended dimension for recess to fit in the floor box:
483mm
813mm
467mm
660mm
460mm
finished floor
45°
TOP VIEW SIDE VIEW
Figure 50
Cutting of the floor box recesses severely influences building statics. A stress analyst
approval/clearance is mandatory.
