5.3 Ceiling-Mounted Touch Screen Monitor (Optional)
5.3.1 Overview
General Installation Information

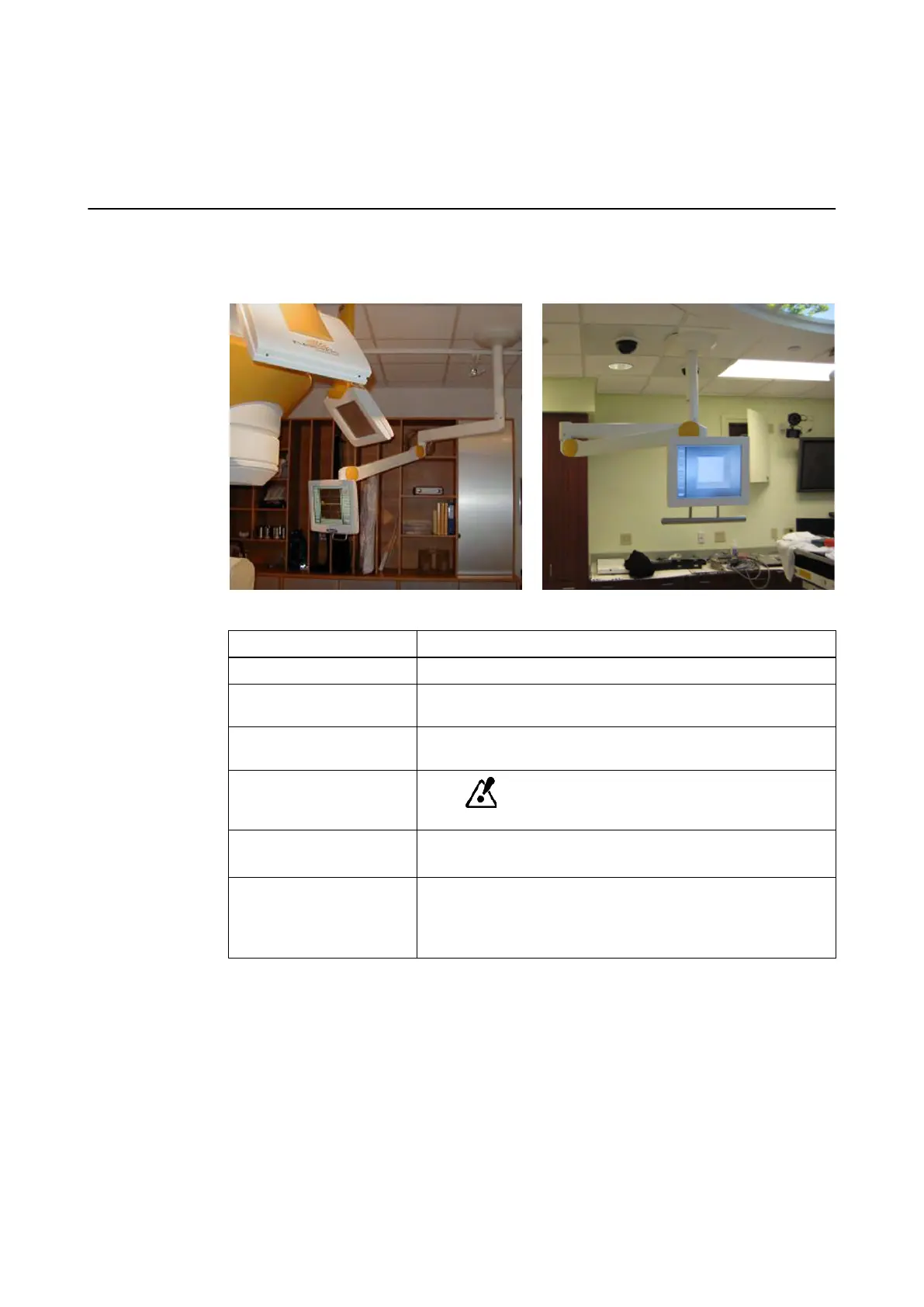

A 17” touch screen monitor is mounted to the ceiling to the left or right of the couch area (see
image below). The area of movement is given by the maximum arm extension of 1910 mm. The
rotation can be limited by a stopper.
Figure 26
Component Description
Weight 99 kg
Safety factor
Must be defined according to the local safety requirements by
your hospital’s stress analyst in written form.
Bolts
Y
ou must supply four bolts for ceiling fixation, according to local
regulations.
Location
None of the in-room components men-
tioned above may be located within the
linac’
s primary beam.
Power supply/
Data connection
Located in an in-room distribution box
Clearance height
The distance between the spring arm and finished floor must be
between 2.0 m and 2.2 m.
A clearance between 2.1 m and 2.2 m requires consultation and
customer agreement.
NOTE: If you did not order the ceiling-mounted version, you will receive the wall mount for the
touch screen monitor by default.
Ceiling-Mounted Touch Screen Monitor (Optional)
58 Site Planning Manual Rev
. 1.0
ExacTrac Ver. 6.x
