Ceiling Mount Dimensions and Weight

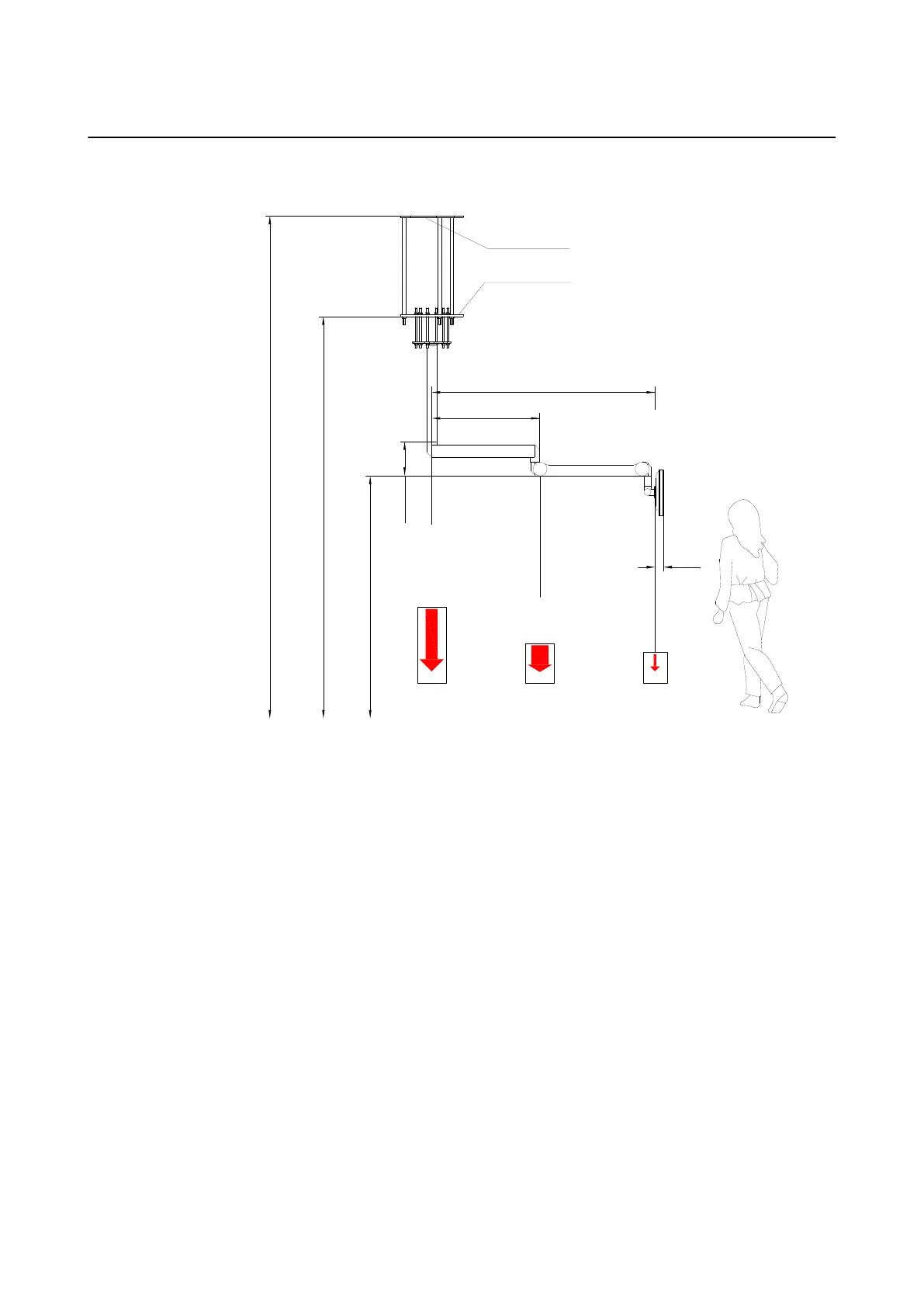

The following image shows the dimensions and weight for the ceiling arm in a setup for a
minimum clearance of 2.0 m:
4150mm
3315mm
2000mm
285mm
1842mm
70mm
Ceiling Plate
Interface Plate
890mm
22 kg
67 kg
10 kg
Vertical parts
weight
Arm
weight
Attached
weight
Figure 27
NOTE: The ceiling plate and upper tubes between the ceiling plate and interface plate are only
applicable for a concrete ceiling height > 3400 mm.
CEILING AND WALL MOUNTS
Site Planning Manual Rev. 1.0 ExacTrac Ver. 6.x 59
