9.1 Introduction
General Information
All ExacT
rac workstations shall be connected to the hospital network with a standard 100 Mb/s
LAN connection. Please supply a network wall jack close to the computer cabinet. Brainlab
provides a 4 m long network cable.

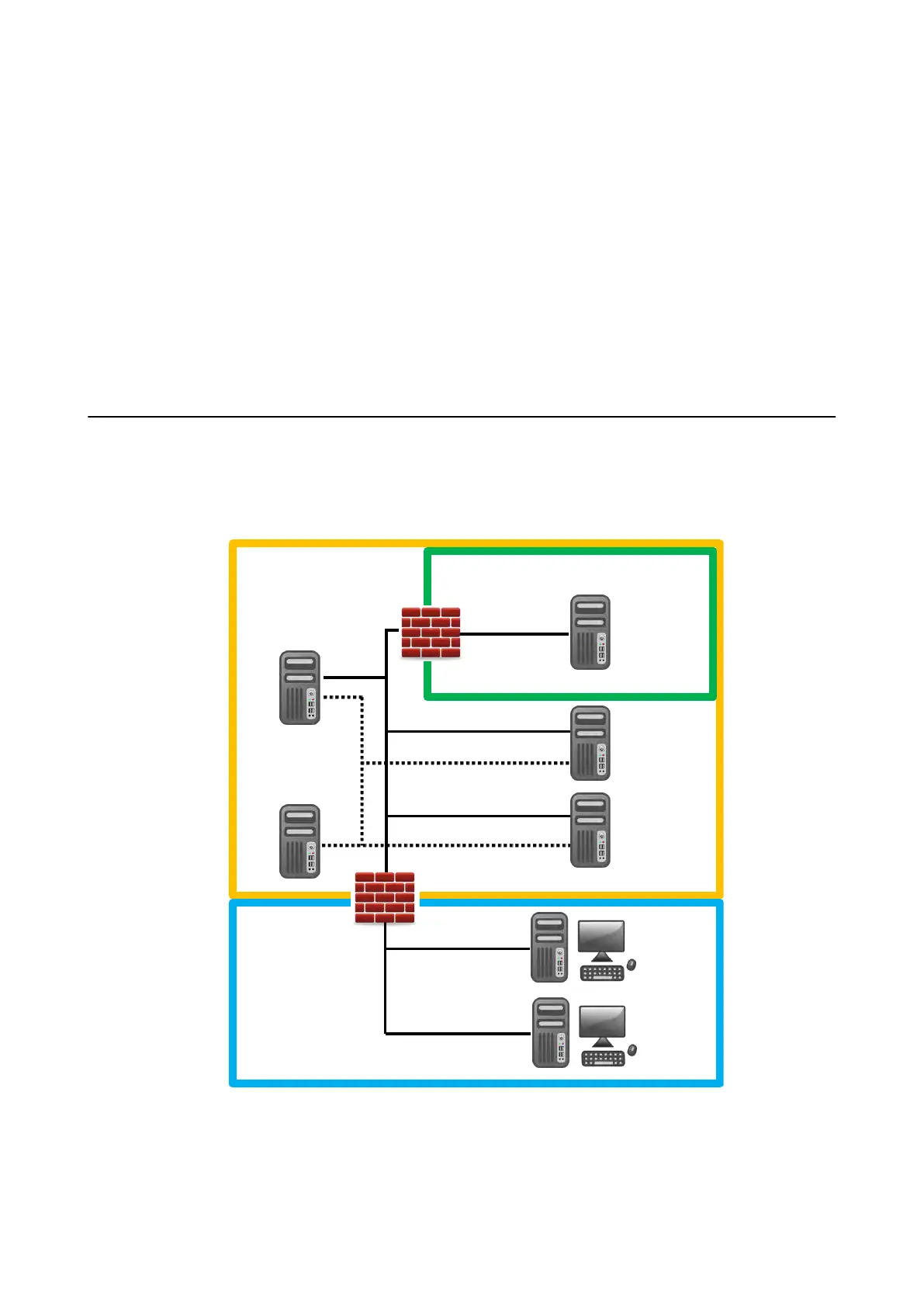

The following image shows a typical network setup for ExacT
rac:
Hospital Network
LINAC Network
Internet
Varian /ADI
LINAC
Hospital
R&V System
Planning
System
PC with
VNC
I-Help
Brainlab
Support
ExacTrac
Treatment
Workstation
ExacTrac
Prep & Review
Workstation
DICOM Data
e.g., CBCT
Patient Data
Localized
Fusion
Approval
Remote
Access
Figure 41
