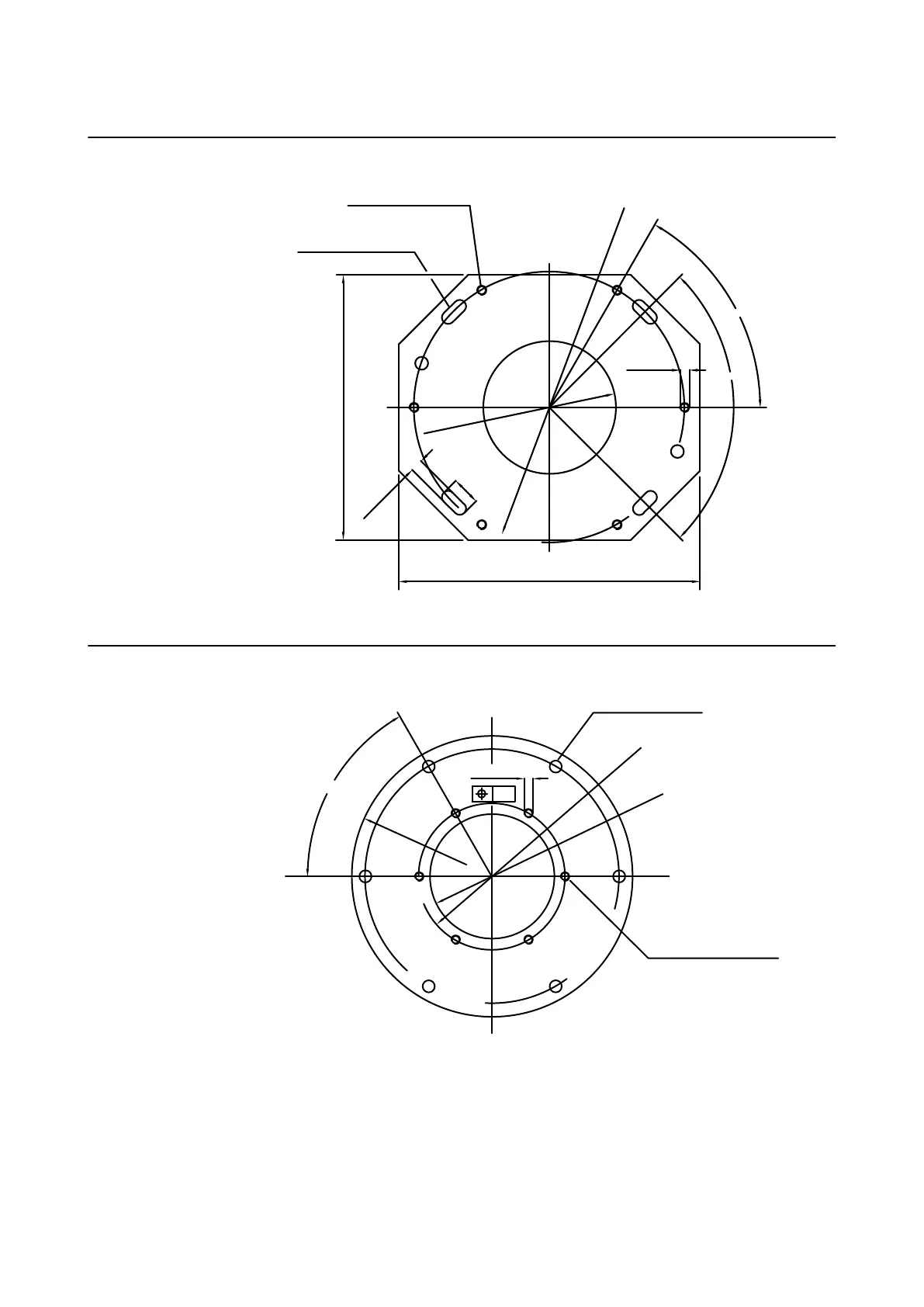

Dimensions of the Upper Ceiling Plate (Red)
460mm
523mm
50mm
22mm
Ø230mm
Ø470mm
M16(6x)
90°
6x60°
holes (4x) for fixation
of plate to the ceiling
holes (6x) for threaded
rods to interface plate
t=15mm
Figure 28
Dimensions of the Lower Ceiling Plate (Black)
Ø230mm
Ø270mm
6x60°
0.5
M16(6x)
Ø520
holes (6x) for threaded
rods to ceiling plate
holes (6x) for threaded
rods Brainlab
(installation of lower part)
t=15mm
Figure 29
Ceiling-Mounted Touch Screen Monitor (Optional)
