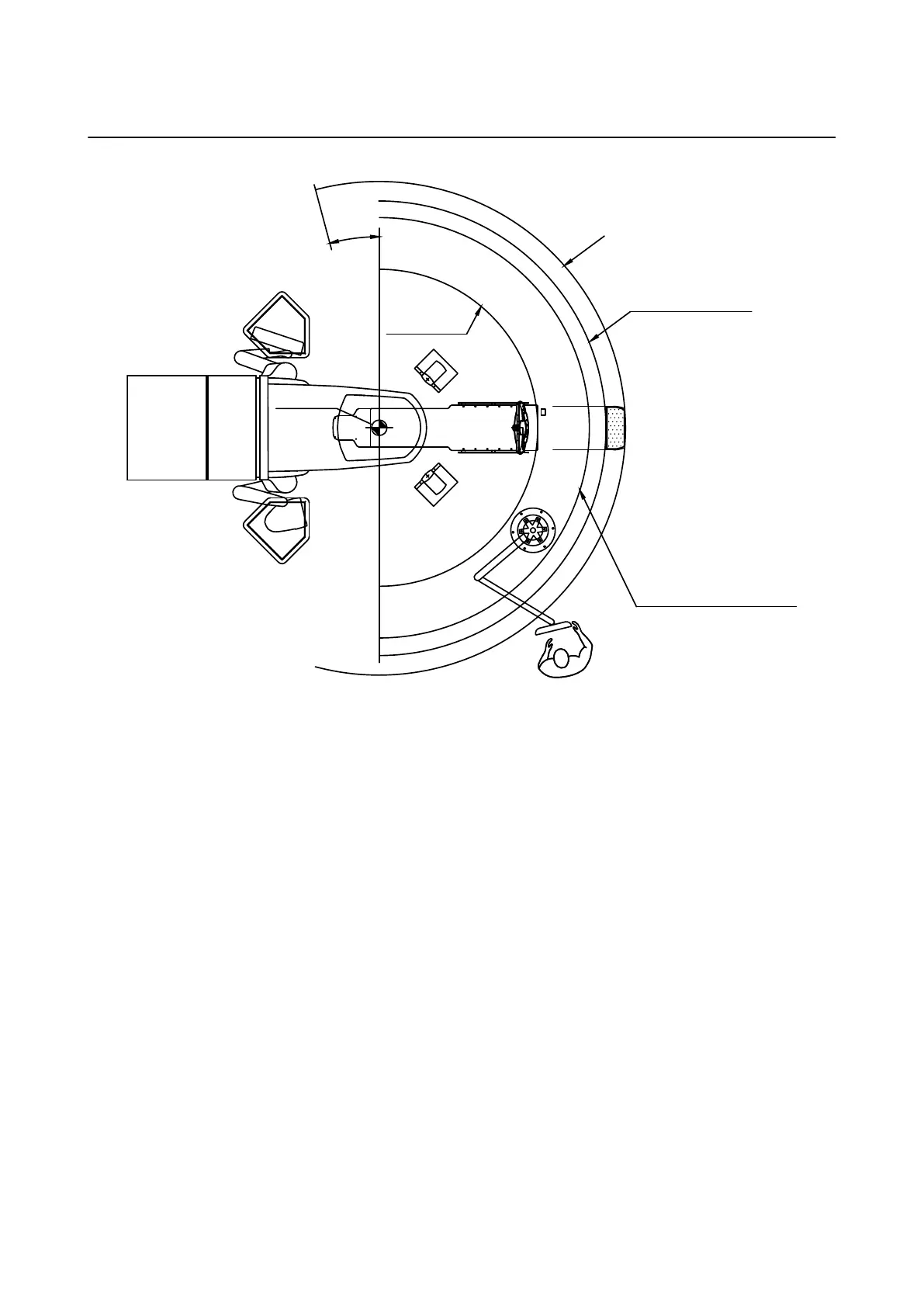

Couch Clearance Specifications for Treatment Room (Measurements in mm)
Isocenter
radius 1855
couch end
EXACT couchtop
with foot extension
radius 2670
EXACT couchtop
w/o foot extension
radius 2460
necessary distance for
treating cranial cases
(Couchmount+Headring+
Localizer or Frameless)
15°
radius 2900
Figure 2
SITE SPECIFICATIONS
