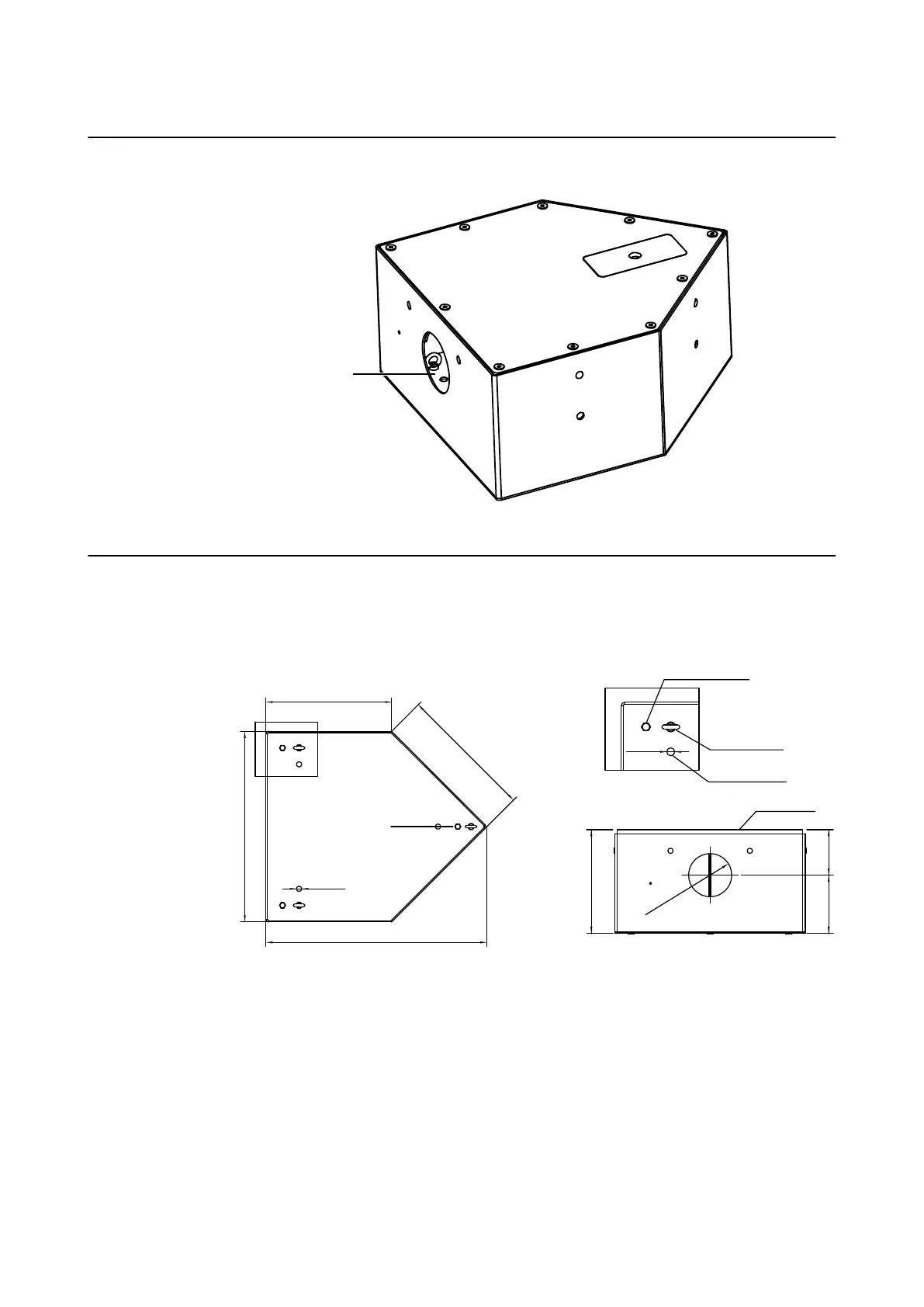

Cable Outlet
Only use the cable outlet ① provided:
①
Figure 9
Top and Back V
iews
Ø130mm
138mm
576mm
668mm
407mm
380mm
Ø16mm
Ø16mm
Ø16mm
176mm
leveling screws (3x)
lifting ancors (3x)
fixation holes (3x)
"A"
314mm
distance rim
Detail A
Top View Back View
Figure 10
12” Floor Boxes (Standard)
36 Site Planning Manual Rev. 1.0
ExacTrac Ver. 6.x
