Steps
5.

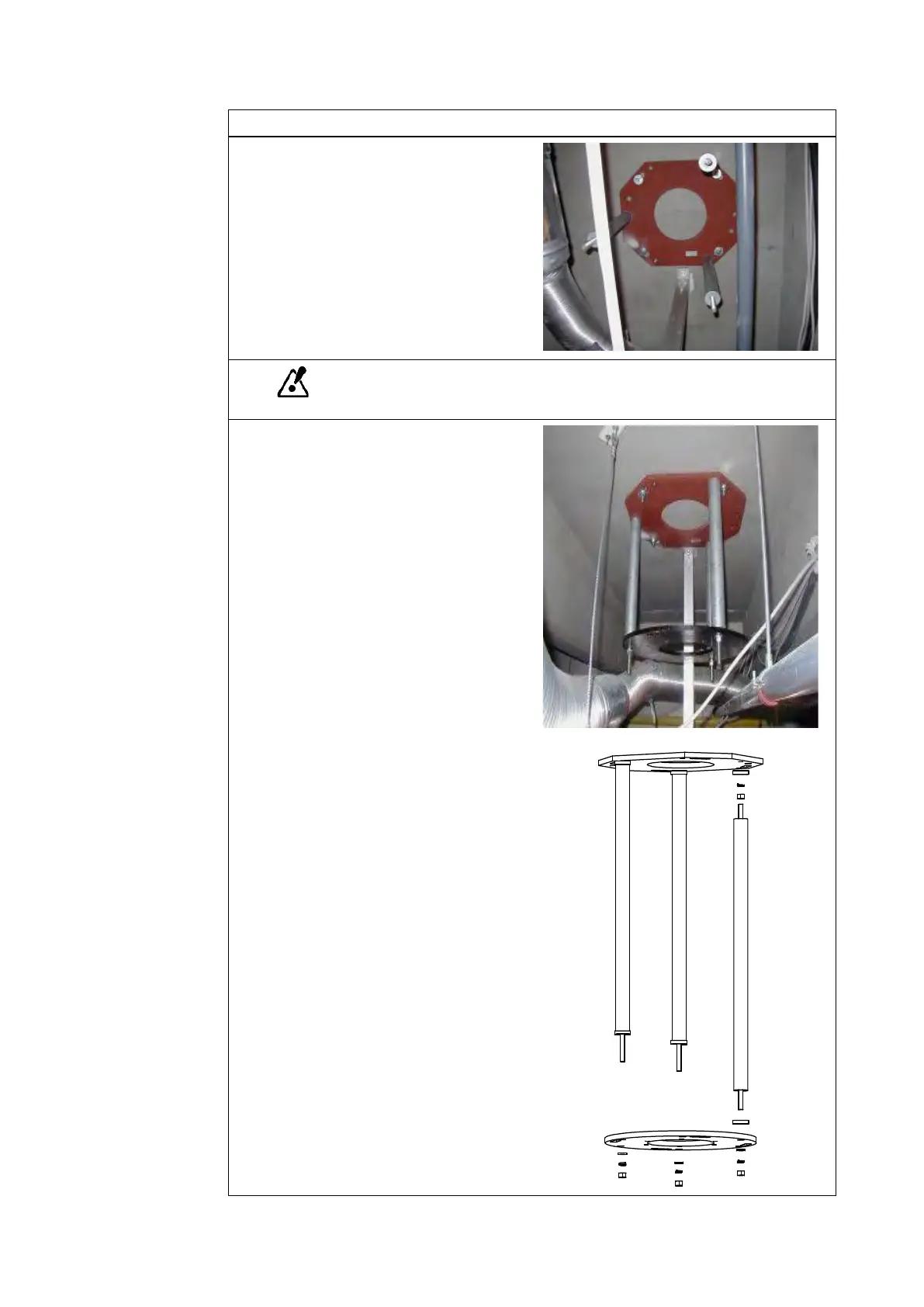

Slide the tube onto the bolt and screw the
lower fixing disk onto the tube all the way
to the stop.
Do not allow anyone to stand underneath the tubes during installa-
tion before the interface plate is installed, as the lower fixing disk
does not fix the tube safely.
7.
Secure the interface plate to the ceiling
plate using the washer, spring washer
and hexagon nut. T
ighten the hexagon
nuts to a torque of 100 Nm. Use a size 24
torque wrench.
For more detailed installation descrip-
tions, refer to the included installation
manual delivered with the package.
Ceiling-Mounted Touch Screen Monitor (Optional)
64 Site Planning Manual Rev. 1.0
ExacTrac Ver. 6.x
