The BN360-200 cameras should be mounted as symmetrically as
possible around the vehicle, preferably centrally on each side of the
vehicle. Whilst this is ideal, cameras can be positioned in differing
locations on the vehicle although this will affect the overall quality of the
360° image.
It is recommended that the cameras are mounted temporarily in the first
instance to evaluate the camera positioning and perform any
adjustments before installing them permanently.
Camera Mounting Angle
The cameras are designed to be mounted on a vertical surface to give correct alignment such that approximately
10% of the camera image is the vehicle body as shown below. In some cases, this may not be possible and may
require adjustment using Brigades universal mounting brackets.
The cameras should be mounted flush to the vehicle body. Ensure Isolation Gasket Kit is used if the cameras are
mounted to metallic body parts.

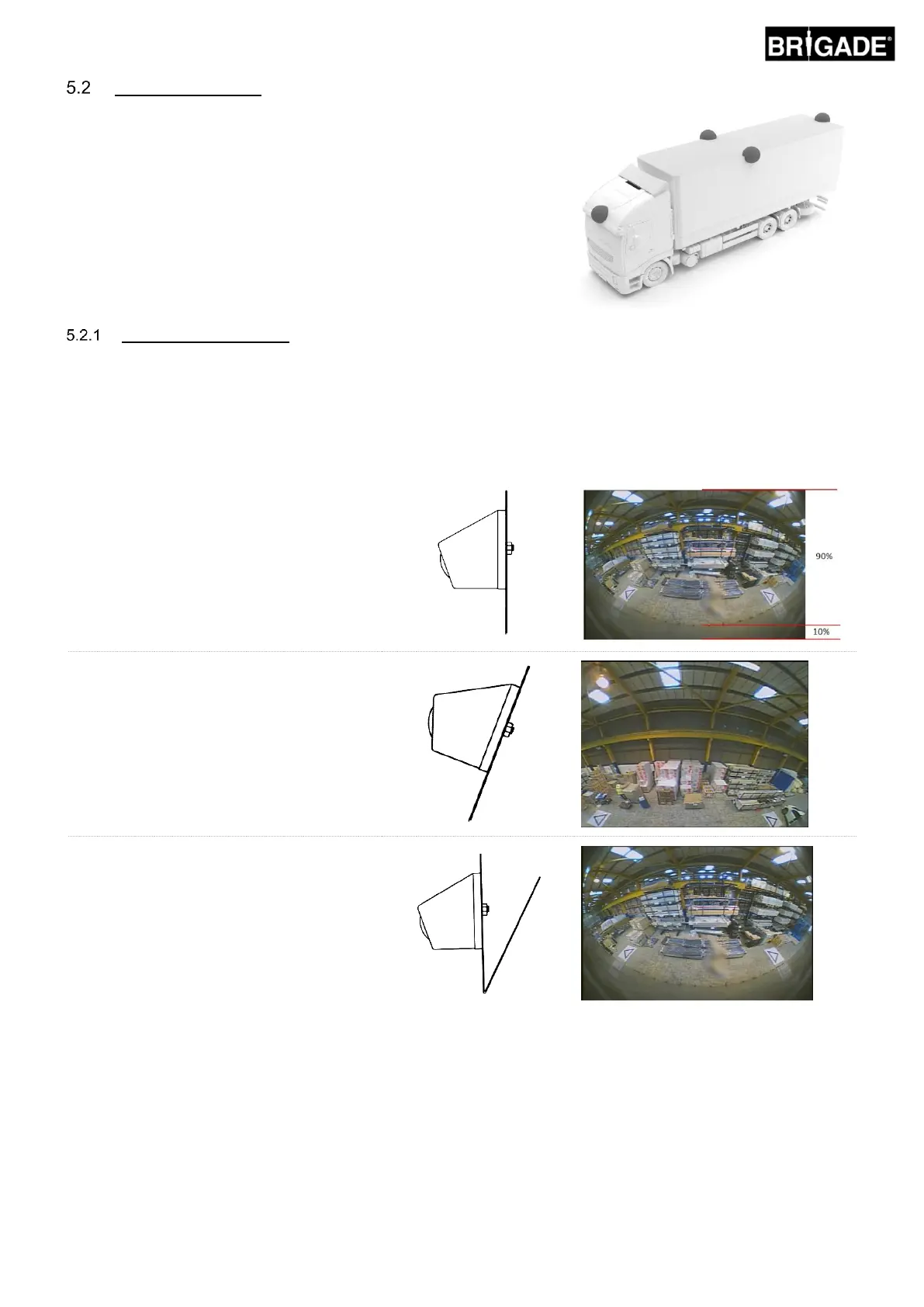

Ideal mounting, vehicle body occupies 10%
of camera image.
Non-ideal mounting, vehicle body does not
appear in camera image.
Camera position corrected with mounting
bracket.
