Brocade MLX Series and NetIron XMR Hardware Installation Guide 85
53-1003821-01
Installing a Brocade MLX-32 router
2
To ensure adequate bonding when attaching the ground lug, a minimum of 20 PSI of torque is
required to be applied to the mounting hardware used to attach the ground lug.

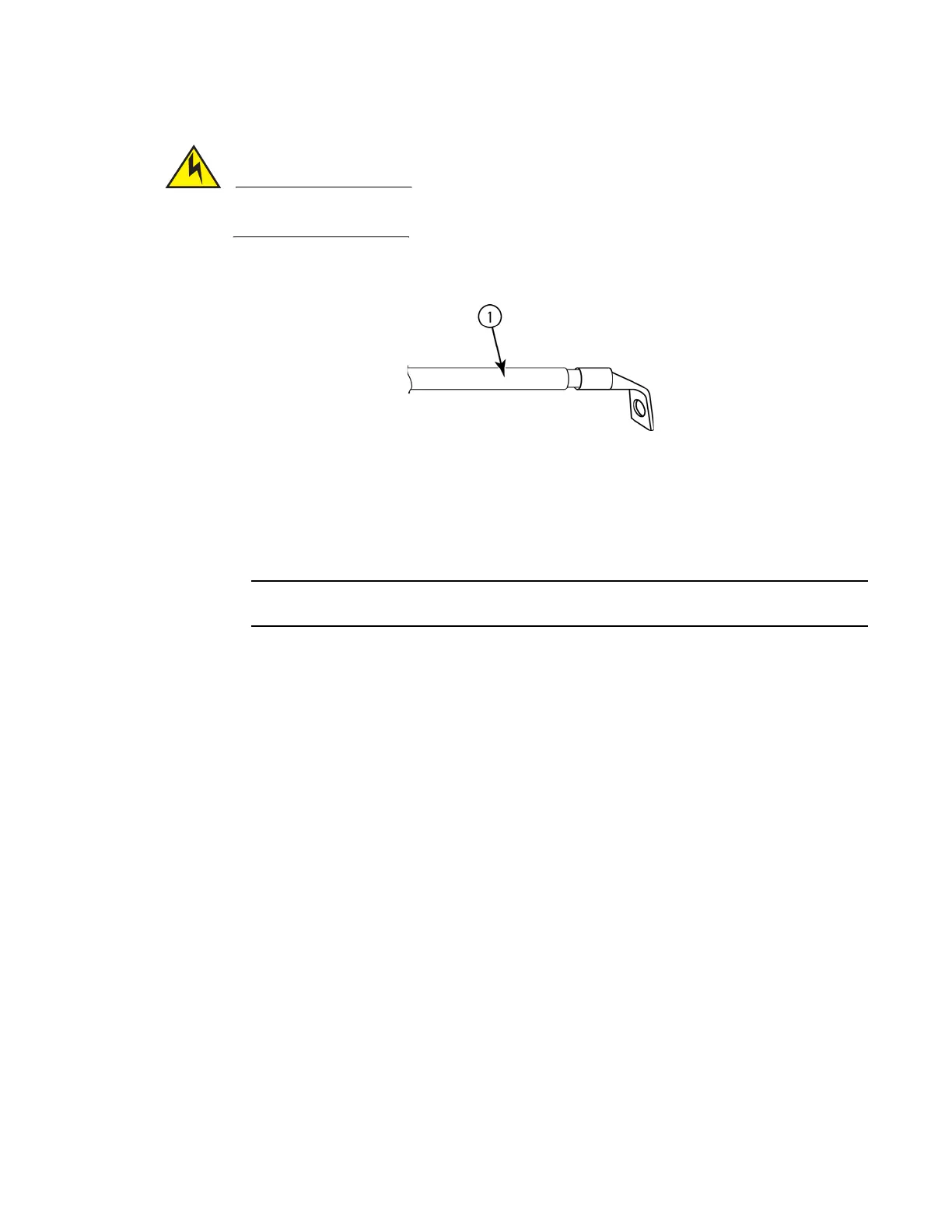

FIGURE 59 Crimping the power supply wire in the power lug
4. Connect the -48V cable to the negative terminal and the 0V cable to the positive terminal on
the power supply.
DC return must be isolated from the router ground (DC-I) when connecting to the power supply.
5. Replace the transparent cover.
This equipment installation must meet NEC/CEC code requirements. Consult local authorities for
regulations.
Final steps
Complete these steps in the order listed:
• “Attaching a management station”
• “Activating the power source”
• “Verifying proper operation”
Installing a Brocade MLX-32 router
The Brocade MLX-32 router can be installed on a 2-post Telco open frame rack or a 4-post
enclosed rack or cabinet.
Preparing the installation site
Before installing the router, plan the location and orientation relative to other devices and
equipment. For cooling purposes, allow a minimum of six inches of space between the sides, front,
and the back of the router and walls or other obstructions. If a router is installed within a perforated
enclosure, the perforations must cover at least 60 percent of the surface.
1AWG power supply wire:
#8 AWG wire for 1200W power supply
#6 AWG wire for 1800W power supply
