RJ45 procedures
4
Cable cinch with one group of RJ45 cables
RJ45 cables may be secured in groups of six. To secure up to six RJ45 cables in one group, place
the Velcro strap through slot one and use the front left recesses as shown in Figure 144.

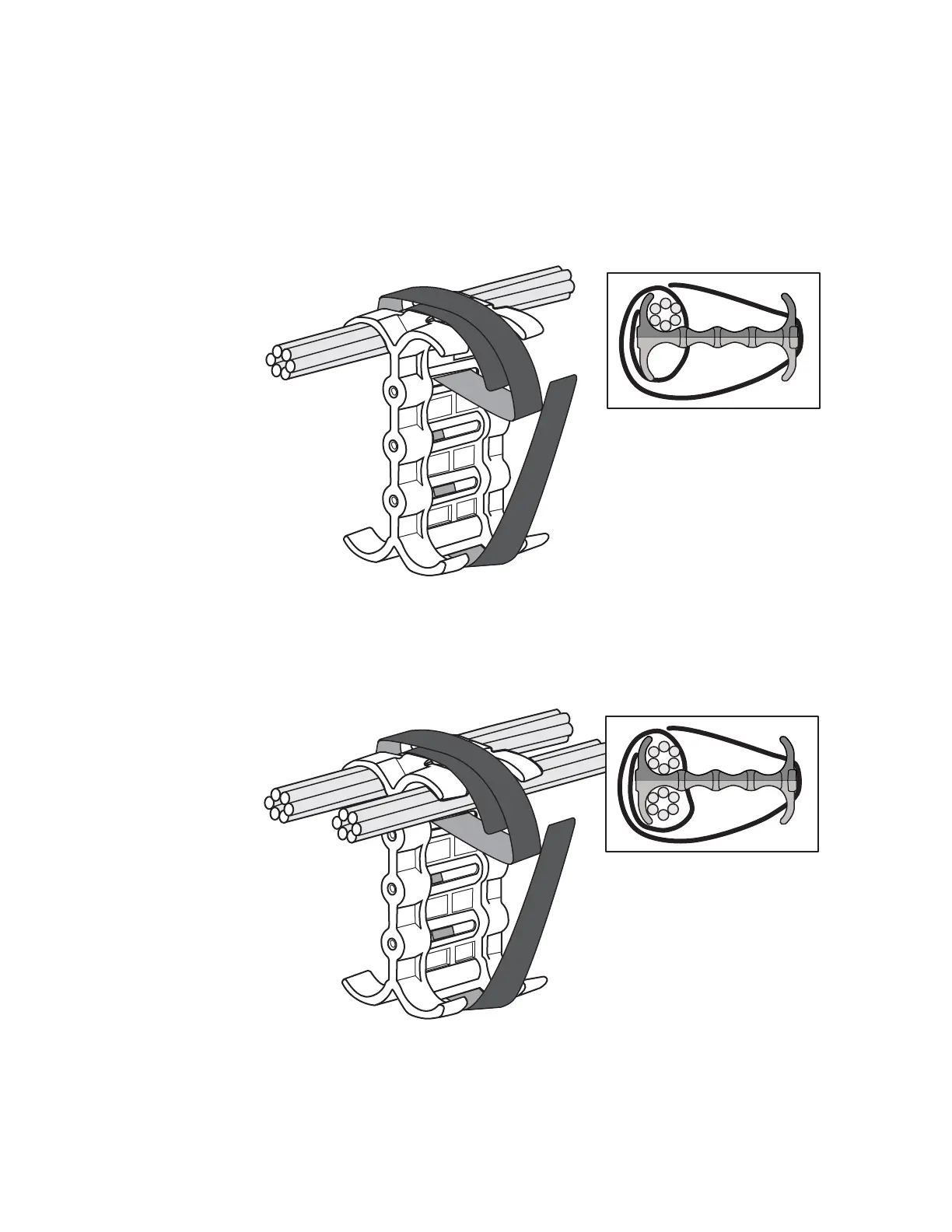

FIGURE 144 One group of RJ45 cables
Cable cinch with two groups of RJ45 cables
12 RJ45 cables, in two groups, may be secured as shown in Figure 145.
FIGURE 145 12 RJ45 cables in two groups
