RJ45 procedures
4
Cable cinch with eight mRJ21 cables

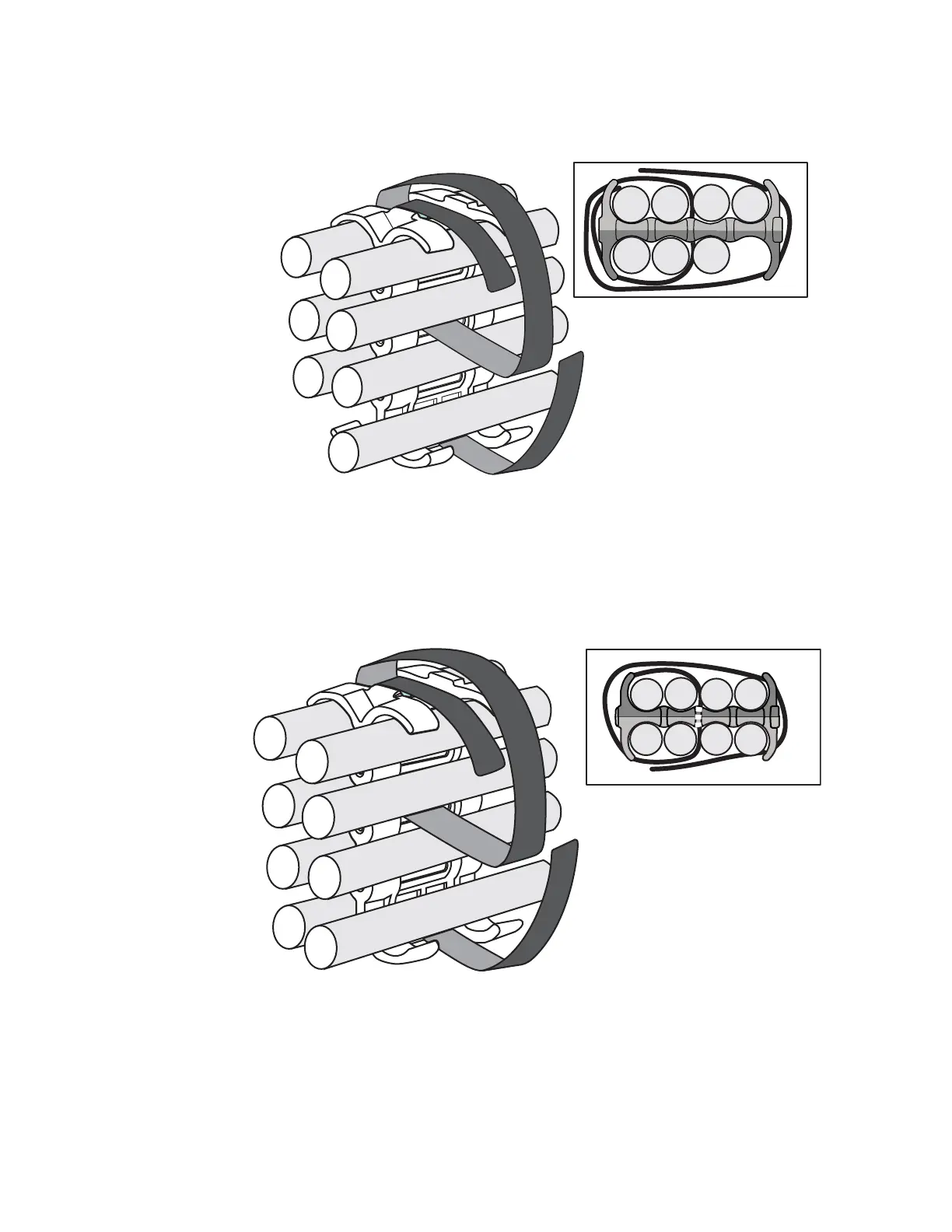

Eight mRJ21 cables may be secured as shown in Figure 143.
FIGURE 143 Eight mRJ21 cables
RJ45 procedures
Use the following guidelines when using the cable cinch clips with RJ45 cables.
