Hardware features
1
NetIron XMR routers
NetIron XMR Series routers are available in the following models:
• NetIron XMR 4000: 4 interface slots (see Figure 5 on page 6).
• NetIron XMR 8000: 8 interface slots (see Figure 6 on page 7).
• NetIron XMR 16000: 16 interface slots (see Figure 7 on page 7).
• NetIron XMR 32000: 32 interface slots (see Figure 8 on page 9).
The following sections described the components you can install in the router slots. For a detailed
list of components that ships with each router, refer to the appropriate installation section for each
router.
NetIron XMR 4000 router components
You can install the following components in the router slots:
• Up to two management modules (one active and one redundant).
• Up to three switch fabric modules.
• Up to four interface modules.
• Up to three power supplies (AC or DC).
Figure 5 displays the NetIron XMR 4000 router.

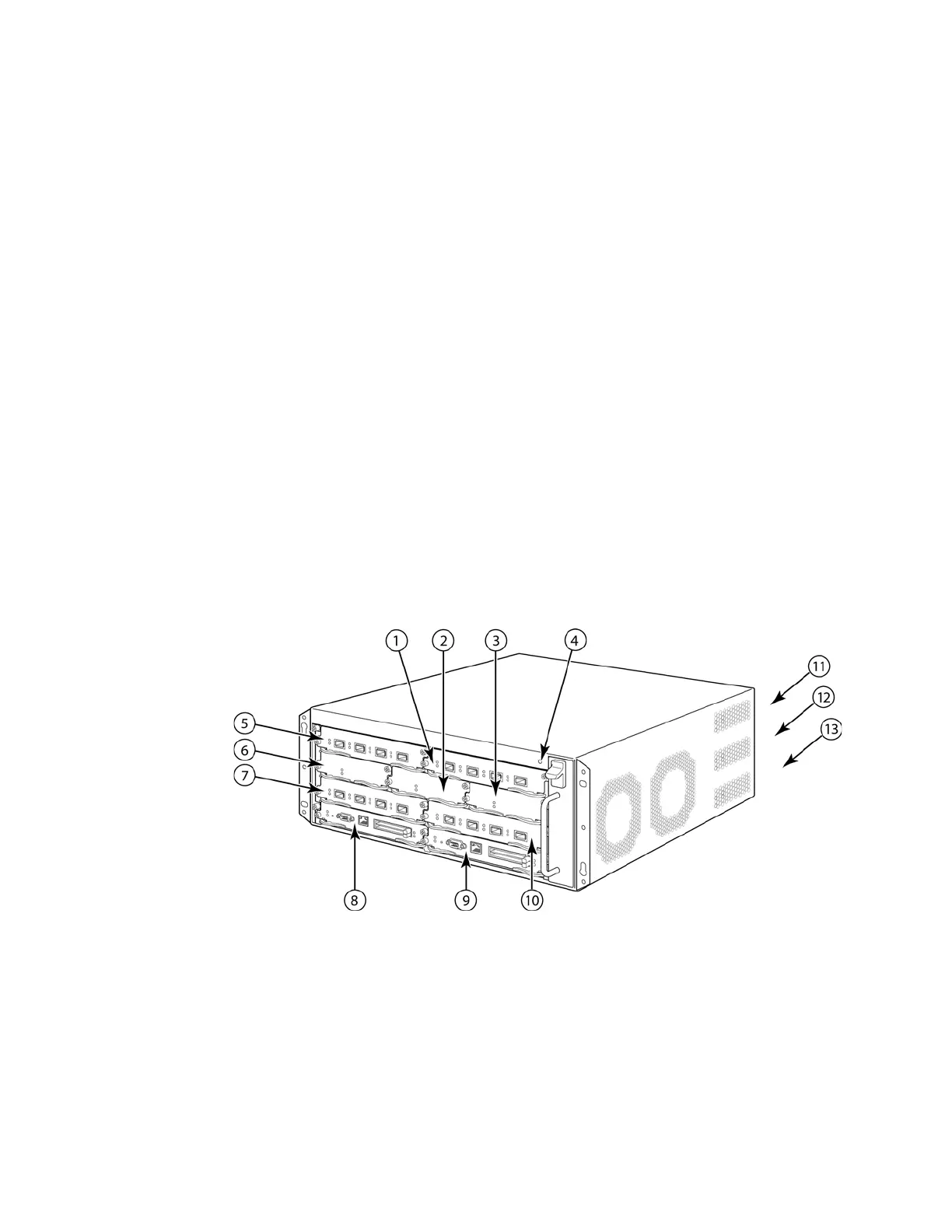

FIGURE 5 NetIron XMR 4000 router
NetIron XMR 8000 router components
You can install the following components in the router slots:
• Up to two management modules (one active and one redundant).
1 Interface slot 2 4 ESD connector 7 Interface slot 3 10 Interface slot 4
2 Switch fabric slot 2 5 Interface slot 1 8 Management slot 1 11 -13 Three power supplies
installed in rear of
device
3 Switch fabric slot 3 6 Switch fabric slot 1 9 Management slot 2
