Brocade MLX Series and NetIron XMR Hardware Installation Guide 5
53-1003821-01
Hardware features
1

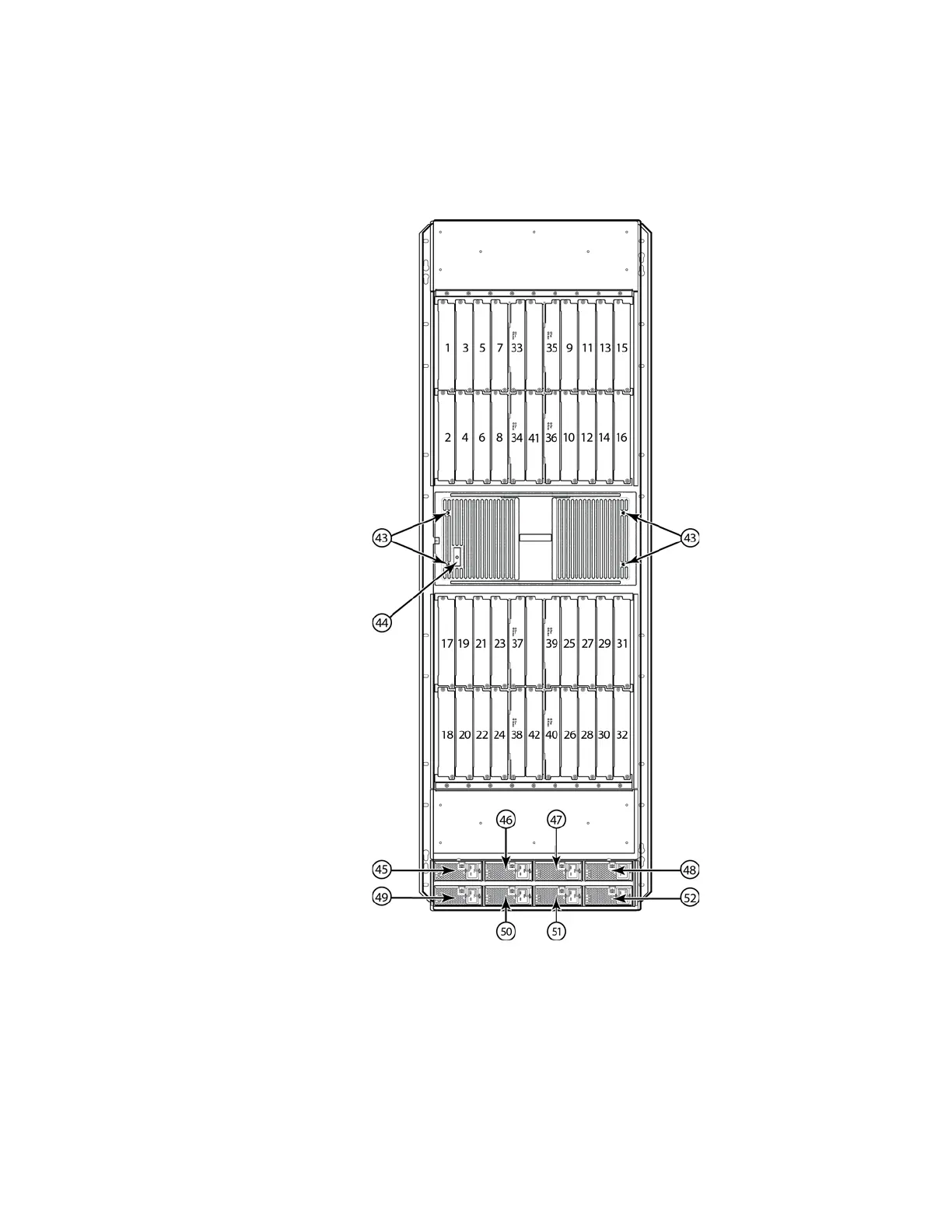

Figure 4 displays the Brocade MLX-32 router.
FIGURE 4 Brocade MLX-32 router
1-32 Interface slots 1-32 38 Switch fabric slot 6 44 ESD connector 50 Power supply 6
33 Switch fabric slot 1 39 Switch fabric slot 7 45 Power supply 1 51 Power supply 7
34 Switch fabric slot 2 40 Switch fabric slot 8 46 Power supply 2 52 Power supply 8
35 Switch fabric slot 3 41 Management slot 1 47 Power supply 3
36 Switch fabric slot 4 42 Management slot 2 48 Power supply 4
37 Switch fabric slot 5 43 Captive screws 40 Power supply 5
