Installing a NetIron XMR 32000 router
3
CAUTION
Be careful not to overtighten or cross-thread cable connector screws.

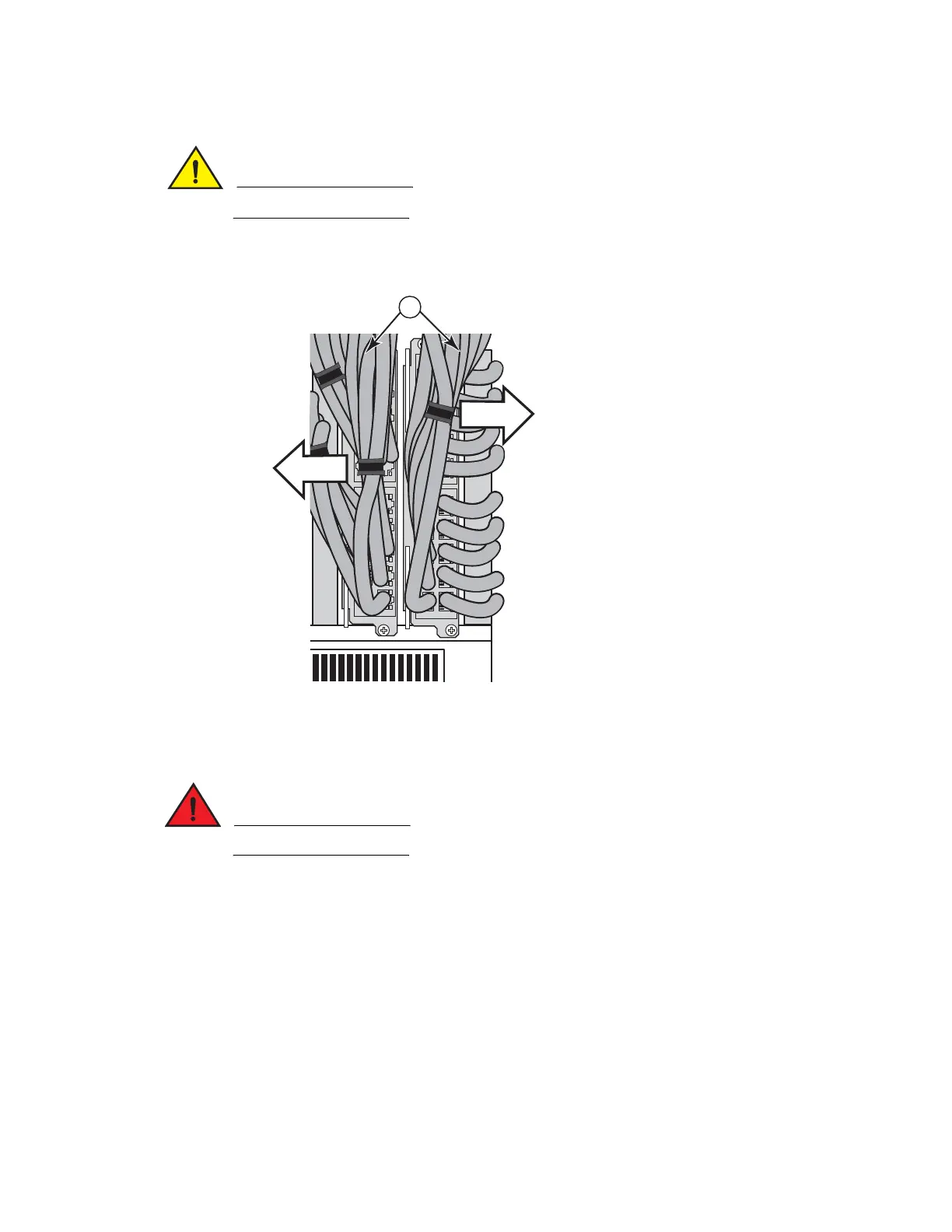

FIGURE 129 Accessing modules by shifting cable bundles
Installing NetIron XMR 32000 router power supplies
DANGER
High Touch Current. Earth connection essential before connecting supply.
Follow the steps to install a power supply in a NetIron XMR 32000 router. You will need a #2
Phillips screw driver.
1. Remove the power supply slot blank.
2. Remove the power supply from the packaging.
3. Insert the power supply into the empty power supply slot, using the guides provided on either
side of the slot.
FIGURE 130 Installing a power supply in a NetIron XMR 32000 router
1 Cable bundles
1
