Brocade Communications Systems MLX Series Hardware Installation Guide

156 Brocade MLX Series and NetIron XMR Hardware Installation Guide
53-1003821-01
Installing a NetIron XMR 8000 router
3
5. Tighten the two screws at each end of the module faceplate by pushing them in and turning
them clockwise. Complete the tightening process using the flat-blade screwdriver.
Installing NetIron XMR 8000 router power supplies
Follow these steps to install a power supply in the NetIron XMR 8000 router.
1. Remove the power supply slot blank.
2. Remove the power supply from the packaging.
3. Insert the power supply into the slot, using the guides provided on either side of the slot.
CAUTION
Carefully follow the mechanical guides on each side of the power supply slot and make sure the
power supply is properly inserted in the guides. Never insert the power supply upside down.

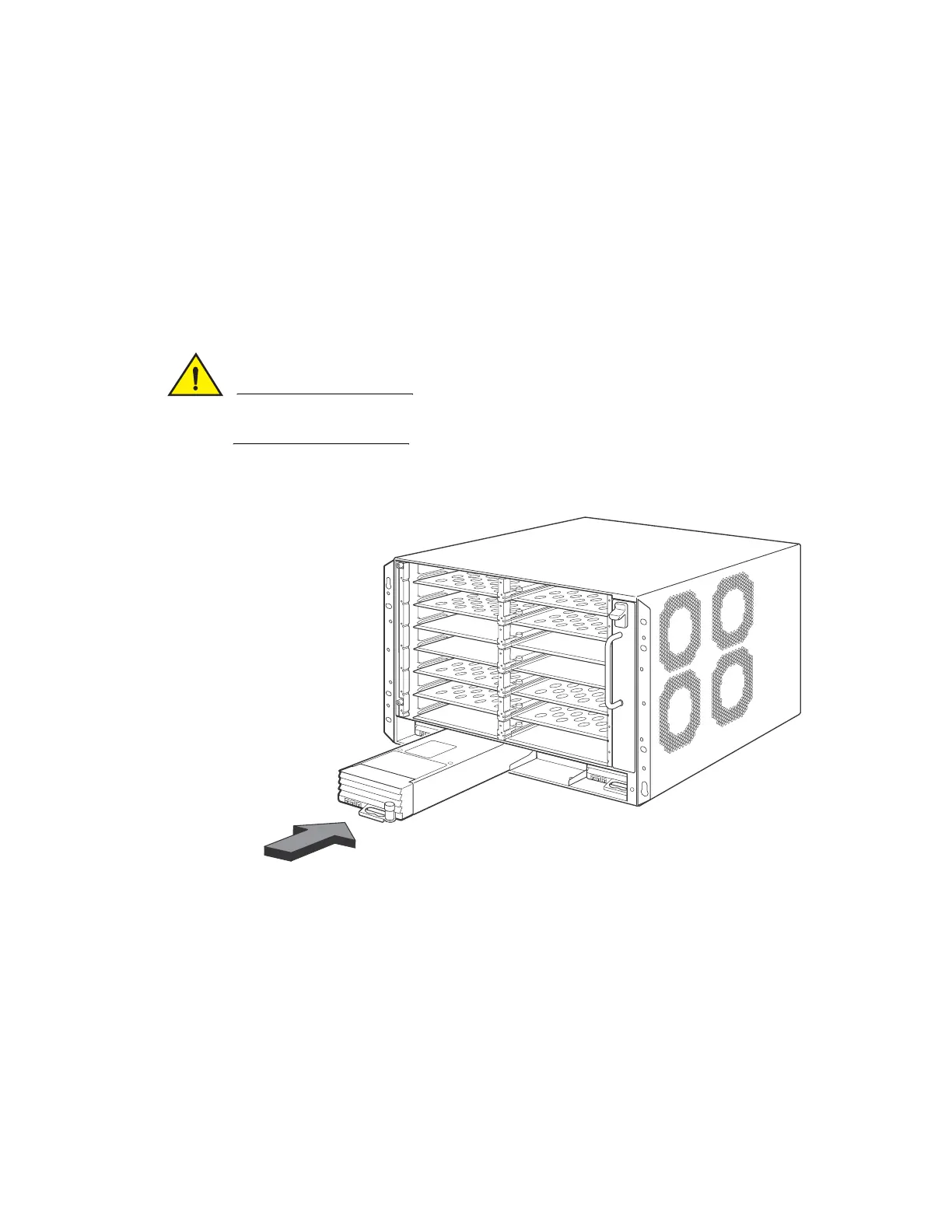

FIGURE 105 Installing a power supply in a NetIron XMR 8000 router
4. Push the power supply toward the back of the router until the power supply connector engages
the backplane connector, and the latch pin clicks into place.
5. Install a power supply slot blank into all empty slots.
For information about connecting power to the router, refer to “Connecting AC power” on page 156,
or “Connecting DC power” on page 158.
Connecting AC power
AC power is supplied through an AC power cord that is installed at the back panel of the router.
