Installing a NetIron XMR 8000 router
3
NOTE
For the NEBS-compliant installation, AC power connections must use a surge protection device
(SPD) to protect AC power supplies from damage due to excessive power line surges.
Follow these steps to connect AC power source.
1. Locate the power receptacle on the back panel of the router.
2. Lift the cord retainer and connect an AC power cord to the power supply.
3. Snap the cord retainer over the power plug to hold it in place.

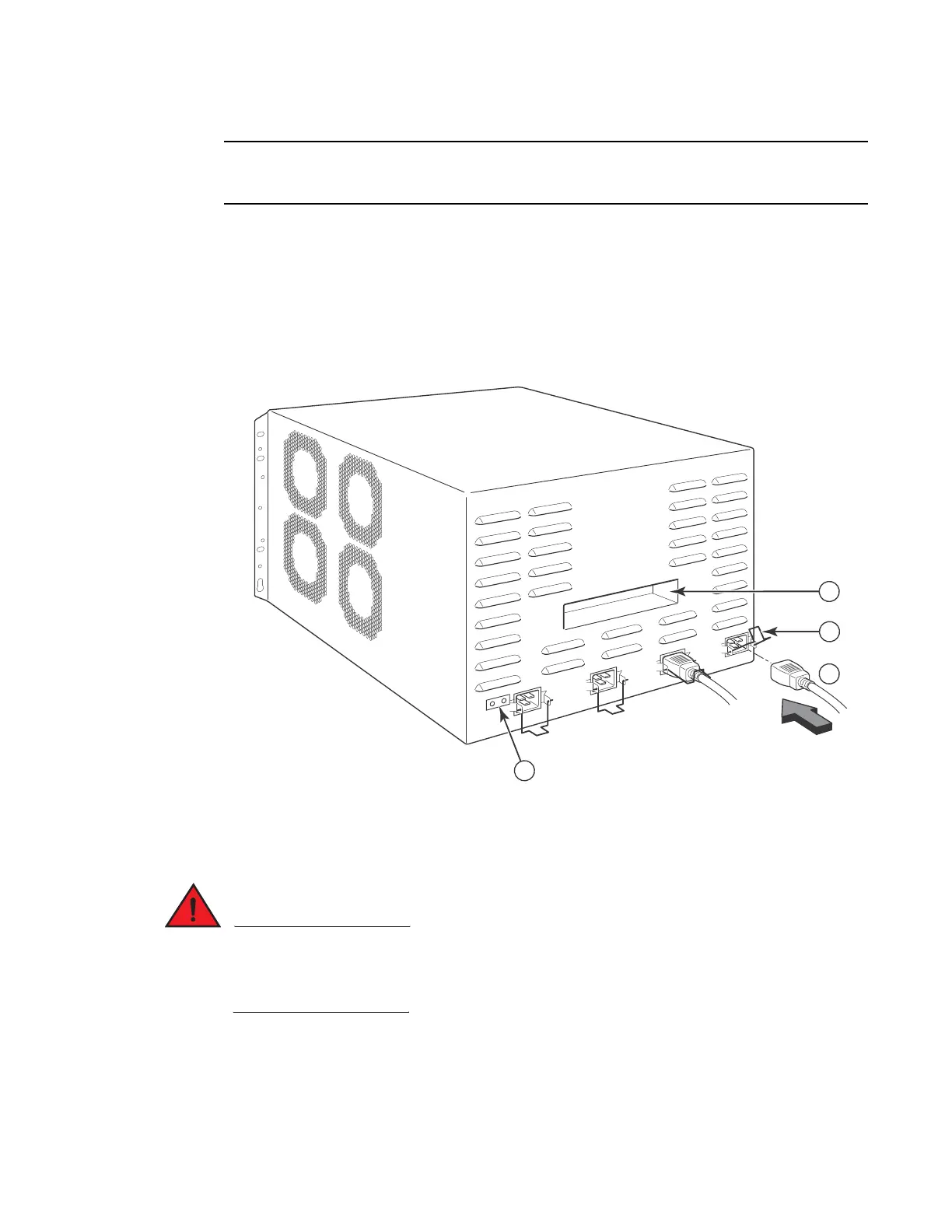

FIGURE 106 Connecting a power cord to the power receptacle
e
DANGER
If the installation requires a different power cord than the one supplied with the router, make
sure you use a power cord displaying the mark of the safety agency that defines the regulations
for power cords in your country. The mark is your assurance that the power cord can be used
safely with the router.
For information about powering on the system, refer to “Activating the power source” on page 194.
1 Lift handle 3 Power cord
2 Cord retainer 4 Ground point
1
2
3
4
