Brocade MLX Series and NetIron XMR Hardware Installation Guide 65
53-1003821-01
Installing a Brocade MLX-8 router
2
Carefully follow the mechanical guides on each side of the power supply slot and make sure the
power supply is properly inserted in the guides. Never insert the power supply upside down.

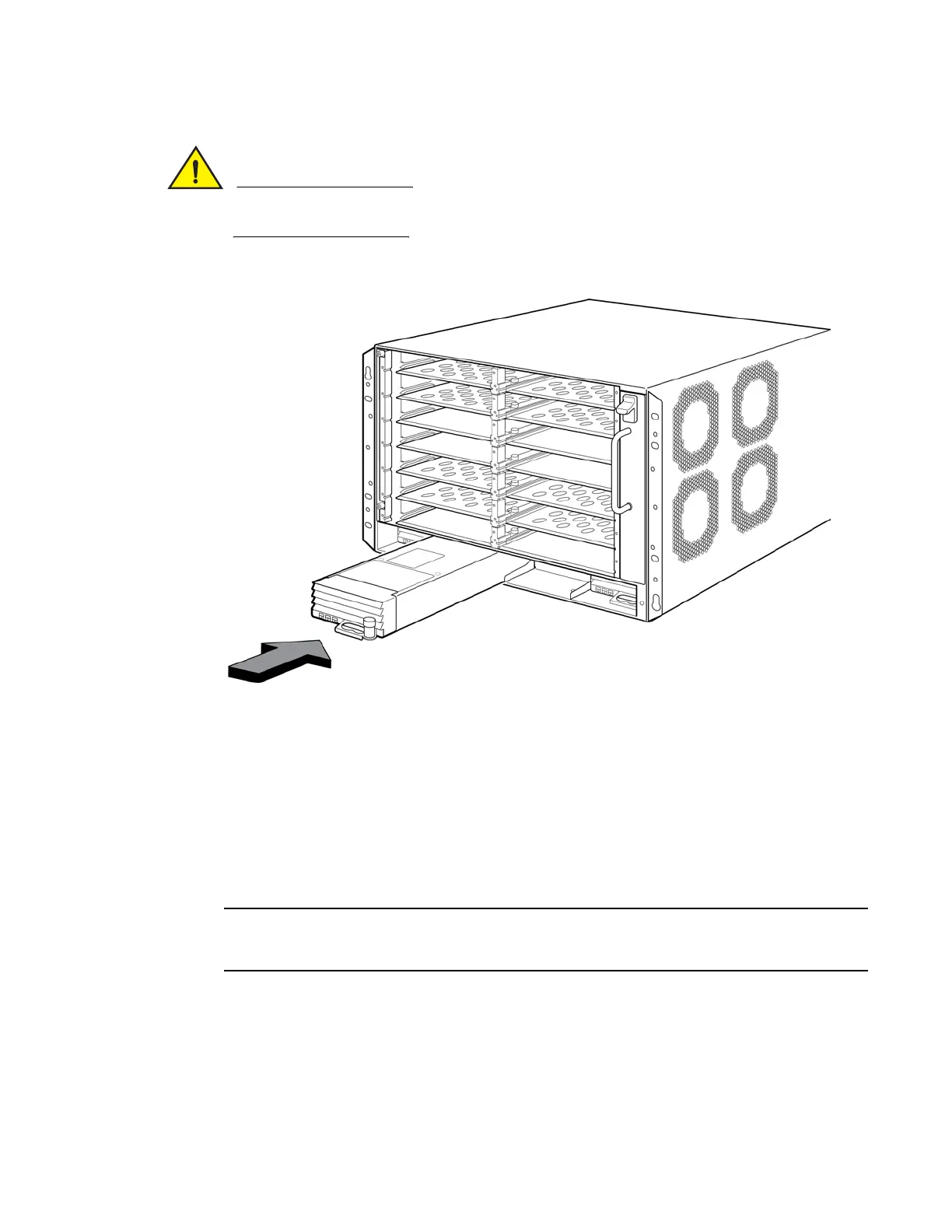

FIGURE 47 Installing a power supply in a Brocade MLX-8 router
4. Push the power supply front panel into the router until it engages the backplane connector,
and the latch pin clicks into place.
5. Pull the latch handle on the power supply up to lock the power supply in place.
For information about connecting power to the router, refer to “Connecting AC power” on page 65,
or “Connecting DC power” on page 66.
Connecting AC power
AC power is supplied through the power cord that is connected to the AC power supply in the router.
For the NEBS-compliant installation, AC power connections must use a surge protection device
(SPD) to protect the AC power supplies from damage due to excessive power line surges.
Follow these steps to connect the AC power cord.
1. Locate the power supply AC Inlet at the bottom rear of chassis for the associated installed
power supply.
2. Lift the cord retainer and connect an AC power cord to the associated power supply AC Inlet, as
shown in Figure 48.
