RJ45 procedures
4
Cable cinch with three groups of RJ45 cables

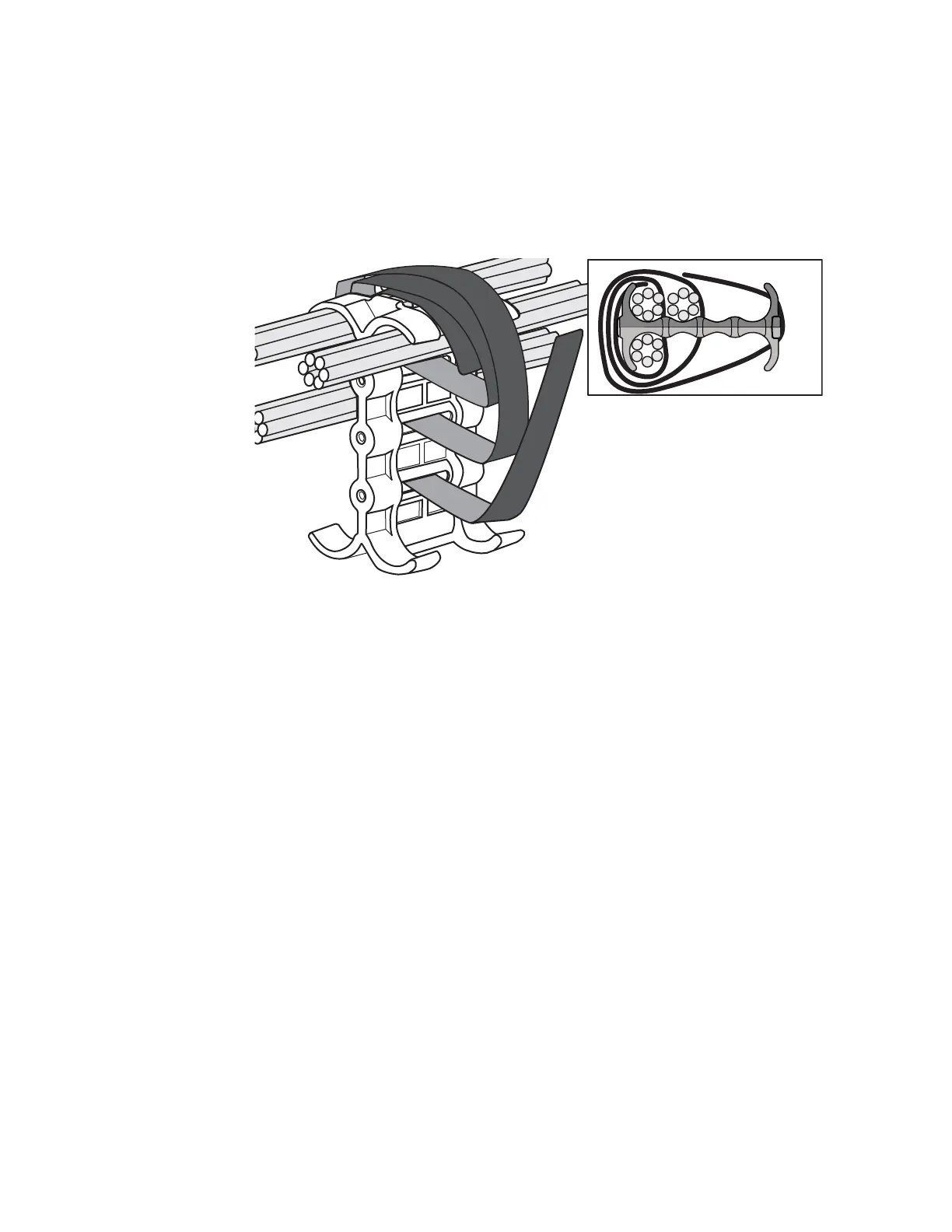

18 RJ45 cables, in three groups, may be secured as shown in Figure 146.
FIGURE 146 18 RJ45 cables in three groups
Cable cinch with four groups of RJ45 cables
24 RJ45 cables, in four groups, may be secured as shown in Figure 147.
FIGURE 147 24 RJ45 cables in four groups
