Brocade Communications Systems MLX Series Hardware Installation Guide

4 Brocade MLX Series and NetIron XMR Hardware Installation Guide
53-1003821-01
Hardware features
1
Brocade MLX-32 router components
You can install the following components in the router slots:
• Two management modules.
• Up to eight switch fabric modules.
• Up to 32 interface modules.
• Up to eight power supplies (AC or DC).

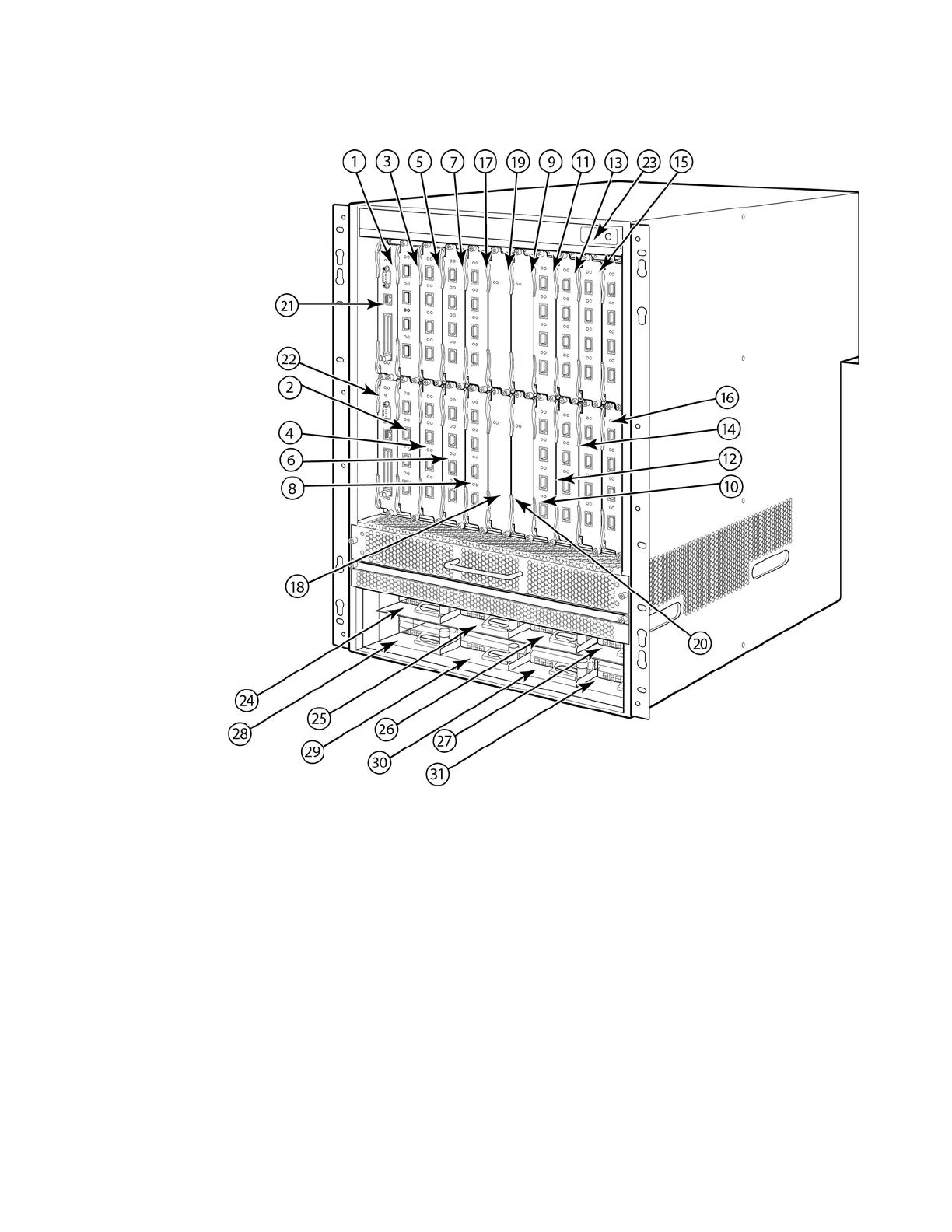

1-16 Interface slots 1-16 20 Switch fabric slot 4 24-31 Power supplies
17 Switch fabric slot 1 21 Management slot 1
18 Switch fabric slot 2 22 Management slot 2
19 Switch fabric slot 3 23 ESD connector
